Comparison of Top Automated Tools for Instrument Index Generation from P&IDs in EPC Engineering

Introduction to Automated Instrument Index Generation from P&IDs

An instrument index is one of the most important engineering registers in an EPC project. It connects information from P&IDs with instrumentation engineering, control system design, procurement, commissioning, and plant maintenance.

Traditionally, engineers review P&IDs manually, identify instrument tags, determine instrument types, record services and drawing references, and transfer the information into Excel or an engineering database. This approach becomes difficult when a project contains hundreds or thousands of drawings.

Automated instrument index generation from P&IDs uses OCR, computer vision, AI based symbol recognition, contextual analysis, and structured data processing to reduce manual extraction work. The important point is that useful P&ID automation must do more than read text. It should understand the relationship between instrument symbols, tags, process lines, equipment, control loops, and drawing references.

Recent research has also specifically investigated AI based instrument index generation from P&IDs, including text detection, computer vision, and OCR techniques.

What Is an Instrument Index in EPC Engineering?

An instrument index is a structured register containing information about instruments used within a project.

What Information Is Included in an Instrument Index?

Typical fields include:

Field	Typical information
Instrument tag	PT 101, FT 202, LIC 301
Instrument type	Pressure transmitter, flow transmitter, level controller
Service	Process service or measurement description
P&ID reference	Drawing number and sheet
Loop number	Associated control loop
Signal type	AI, AO, DI, DO or other project specific classification
Location	Field, panel, cabinet or other location
Range	Measurement range
Engineering units	bar, degree C, m3/h and similar
Process connection	Connection information where available
Datasheet reference	Related instrument datasheet
Control system information	DCS, PLC or SIS information where available
Safety classification	SIL information where applicable
Remarks	Additional engineering information

The exact fields depend on the EPC company, client specification, project tagging philosophy and engineering database.

An instrument index should not be confused with an I/O list. Not every instrument shown on a P&ID necessarily has a direct DCS, PLC or SIS I/O signal.

Master P&ID Reading Before Automating Instrument Data Extraction: Piping & Instrumentation Diagram (P&ID)

Why Automate Instrument Index Generation from P&IDs?

Problems With Manual Instrument Index Generation

Large EPC projects can contain extensive P&ID packages. Manual extraction requires engineers to repeatedly inspect drawings, identify tags and enter information into structured registers.

Common problems include missed instruments, duplicate tags, inconsistent descriptions, poor quality scans, unclear symbols, different tagging conventions and revision changes.

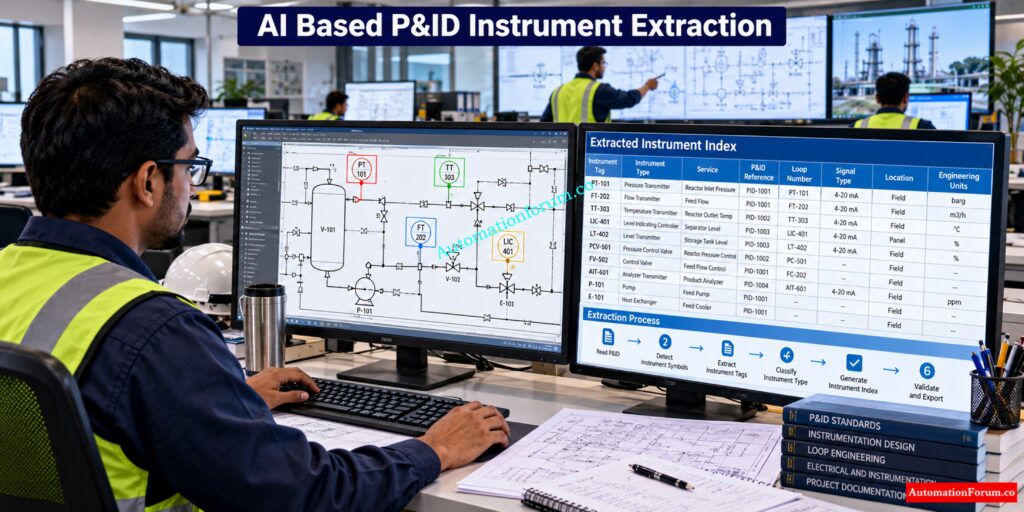

Benefits of Automated P&ID Instrument Extraction

Automation can assist with initial extraction, duplicate detection, source traceability and structured output. However, engineering review remains important because P&IDs do not contain every attribute required for a complete instrument index.

For example, manufacturer information, detailed materials, calibration requirements and some control system information may exist only in datasheets, specifications, I/O databases or other engineering documents.

Refer the below link for the 82 Essential Drawings and Documents for Instrumentation and Control Engineers

82 Essential Drawings and Documents for Instrumentation and Control Engineers

Top Automated Instrument Index Generation Software for P&IDs

The following comparison focuses on tools that have a documented connection with P&ID interpretation, instrumentation data extraction, instrument index generation, or related EPC engineering workflows. It is a capability comparison and not a ranking.

Common Comparison of Automated P&ID Instrument Extraction Tools

Tool	P&ID Extraction	PDF and Scanned Drawings	Instrument Tag Extraction	Instrument Index	Other Engineering Registers	Revision and Validation	Source Traceability
Pathnovo	Yes	Yes	Yes	Yes	I/O, valve and equipment workflows	Yes	Yes
Tagsight	Yes	Yes	Yes	Yes	I/O, equipment and line lists	Yes	Yes
PANDID	Yes	PDF and image inputs	Yes	Structured data	Equipment and related data	Engineer verification	Yes
PIDVision.AI	Yes	Yes	Yes	Yes	Related engineering extraction	Review workflow	Yes
Novek AI	Yes	Yes	Yes	Yes	Line, equipment and engineering registers	Yes	Yes

Connect Instrument Signals With Smarter Engineering Data Management: I/O Database

Pathnovo Instrument Index Automation

Pathnovo specifically provides an instrument index automation workflow from P&IDs. Its documented capabilities include extraction of instrument tags, instrument types, service descriptions, P&ID references, loop numbers and related specification information. It also describes workflows for datasheet population, I/O list generation, valve schedules and revision tracking.

Refer the below link

https://pathnovo.com/solutions/instrument-index-automation

Feature	Pathnovo Capability
P&ID extraction	Yes
Instrument tag extraction	Yes
Instrument type extraction	Yes
Service information	Yes
Loop information	Yes
Instrument index generation	Yes
Datasheet population	Yes
I/O list generation	Yes
Valve schedules	Yes
Revision tracking	Yes
Structured output	Excel and JSON documented
EPC application	Instrumentation and engineering document workflows

Build Accurate I/O Records Without Missing Critical Signals: I/0 List

Tagsight P&ID Instrument Extraction

Tagsight describes P&ID extraction for instrument indexes, I/O lists, equipment lists and line lists. Its documentation states that it can process vector and raster PDFs, scanned drawings and image formats, while maintaining traceability to the source drawing. It also describes support for different instrumentation tagging conventions and multi sheet drawing sets.

Refer the below link
https://tagsight.io/pid

Feature	Tagsight Capability
P&ID extraction	Yes
Vector PDF	Yes
Scanned P&ID	Yes
Instrument tag extraction	Yes
Instrument index	Yes
I/O list	Yes
Equipment list	Yes
Line list	Yes
Tag convention handling	Yes
Multi sheet P&ID processing	Yes
Source traceability	Yes
Engineering review	Yes

Capture Critical Instrument Details Engineers Need For Design: Instrument Data Sheet /Specification

PANDID P&ID Data Extraction

PANDID focuses on extracting structured information from P&IDs, including engineering objects such as instruments, equipment, lines and tags. Its approach is useful where the requirement extends beyond a basic spreadsheet and involves creating structured engineering relationships from the drawing.

Refer the below link
https://www.pandid.io/

Feature	PANDID Capability
P&ID extraction	Yes
PDF and image input	Yes
Instrument detection	Yes
Tag extraction	Yes
Equipment detection	Yes
Line detection	Yes
Structured engineering data	Yes
CSV output	Documented
Graph based data	Documented
Engineer verification	Yes
Data correction workflow	Yes
Engineering relationship analysis	Yes

Trace Every Instrument Through Complete Control Loop Documentation: Instrument Loop Diagrams

PIDVision.AI P&ID Analysis

PIDVision.AI describes AI based P&ID analysis using instrument detection, classification and OCR based extraction. Its workflow is focused on converting information contained in P&ID drawings into structured instrumentation information.

Refer the below link
https://pidvision.com/

Feature	PIDVision.AI Capability
P&ID analysis	Yes
PDF processing	Yes
Image processing	Yes
OCR extraction	Yes
Instrument detection	Yes
Instrument classification	Yes
Instrument tag extraction	Yes
Line number extraction	Yes
Service description extraction	Yes
Instrument index workflow	Yes
Structured engineering information	Yes
Engineering review	Yes

Avoid Cable Documentation Errors Across Complex Instrumentation Projects: Instrument Cable Schedule

Novek AI Instrument List Extraction

Novek AI describes a broader engineering document intelligence workflow covering P&IDs, instrument datasheets and related engineering documents. Its platform describes detection of instruments, tags, process lines and connections, followed by construction of a connected engineering model. It also provides source linked review and structured engineering outputs.

Refer the below link
https://novek.ai/use-cases/ai-instrument-list-extraction/

Feature	Novek AI Capability
P&ID extraction	Yes
Scanned P&ID	Yes
PDF processing	Yes
Raster CAD input	Yes
Instrument detection	Yes
Instrument tag extraction	Yes
Instrument loop detection	Yes
Line number extraction	Yes
Process topology	Yes
Cross drawing connections	Yes
Instrument index	Yes
Datasheet extraction	Yes
Cross document reconciliation	Yes
Source linked review	Yes
Confidence based review	Yes
Structured engineering output	Yes
API integration	Documented
Engineering database integration	Documented

Organize Junction Box Connections Before Commissioning Starts: Instrument Junction Box (JB) Schedule

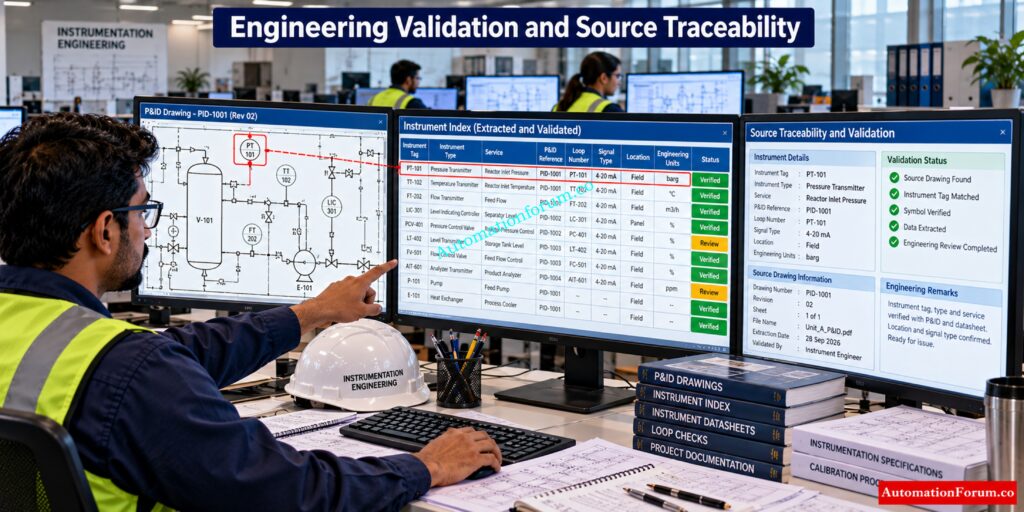

Practical EPC Comparison of P&ID Instrument Index Automation Tools

For an EPC instrumentation team, these feature tables should be used together with the common comparison table. The main evaluation should focus on whether the software can process the company’s actual P&ID formats, understand project specific tagging conventions, maintain source traceability and produce an instrument index that matches the approved engineering template.

The most important test is therefore not simply whether a tool can extract a tag from a drawing. The engineering team should verify how reliably it handles the complete workflow from P&ID extraction to structured instrument data, engineering validation, revision checking and final instrument index preparation.

Understand Systems Architecture Documents EPC Engineers Cannot Ignore: Vendor Document for Project Systems Architecture: Complete Engineering Guide for Instrumentation, Automation and Control

How to Compare Automated Instrument Index Generation Tools for EPC Projects

The feature table provides only an initial comparison. A proper EPC evaluation should examine how each system behaves with actual project drawings.

For example, two tools may both support OCR and instrument tag extraction, but their practical workflows can differ significantly when a drawing contains a crowded control loop, an unclear instrument bubble, a scanned revision or a client specific symbol.

Engineers should therefore test several representative drawing conditions, including:

1. Clean vector based P&IDs
2. Scanned P&IDs
3. Low resolution drawings
4. Drawings containing handwritten markups
5. Drawings with multiple instrument loops
6. Drawings using client specific symbols
7. P&IDs containing repeated or similar instrument tags
8. Revised drawings containing added or removed instruments
9. Drawings where instrument information must be reconciled with datasheets
10. Large drawing packages containing multiple process units

Strengthen Shutdown Engineering With Proper Safety Documentation: Shutdown Philosophy: Engineering Documentation for Process Safety and Emergency Shutdown Systems

Revision Comparison and Engineering Validation

The output should then be compared against the approved engineering instrument index template.

Particular attention should be given to source traceability. If an extracted instrument is recorded as PT 101, the engineer should be able to identify the exact P&ID and drawing location from which the information was obtained. This becomes especially important during engineering review, document revisions and commissioning.

Another important consideration is exception handling. A practical automation system should not force every uncertain result into a final engineering record. Unclear tags, questionable instrument classifications and conflicting document information should be visible to the engineering team for review.

Understand Electrical Power Distribution From One Critical Drawing: Single Line Diagram

Engineering Database and Excel Integration

The comparison should therefore consider the complete workflow from P&ID ingestion to extraction, validation, engineering review, structured instrument index generation and revision management rather than evaluating OCR capability alone.

No single platform should be treated as universally suitable for every EPC project. The appropriate choice depends on the drawing formats, project standards, required engineering outputs, document volumes, integration requirements, security requirements and the level of engineering validation required.

Get Ready To Use Instrumentation Engineering Documentation Templates: Downloadable Engineering Documentation Instrumentation and Control Templates

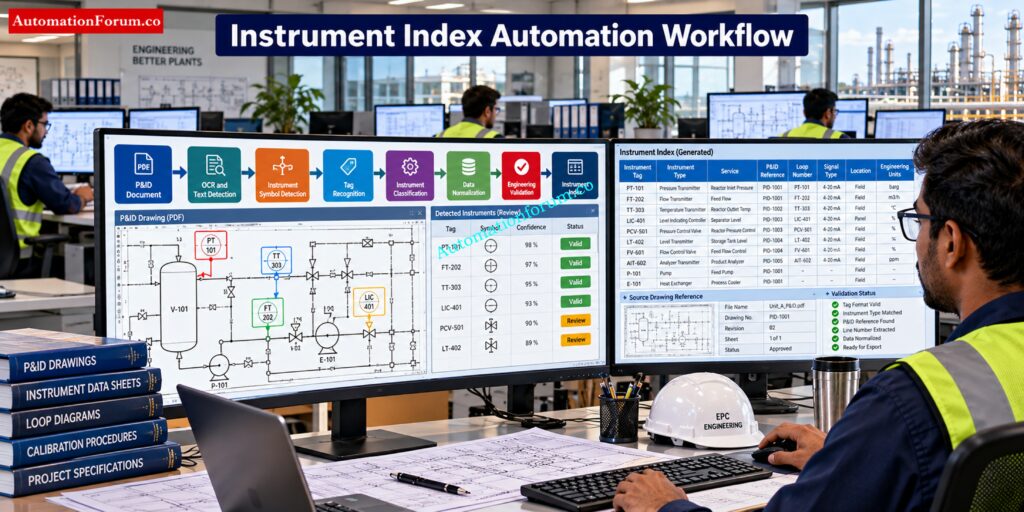

How Automated Instrument Index Generation From P&IDs Works

A practical automated workflow normally contains several stages.

1. P&ID Document Collection: The project team gathers approved P&IDs and identifies drawing numbers, revisions and document status.
2. Drawing Preprocessing: PDF pages or scanned drawings are prepared for analysis. Image quality, orientation and resolution can affect extraction.
3. OCR and Text Detection: The technology detects text such as instrument tags, line numbers and service descriptions.
4. Instrument Symbol Detection: Computer vision detects engineering items and instrument symbols.
5. Tag Recognition: The system associates a detected instrument symbol with its tag.
6. Instrument Classification: The extracted tag and symbol are interpreted to determine the likely instrument type.
7. Contextual Relationship Analysis: The system attempts to understand relationships between instruments, process lines, equipment, valves and control functions.
8. Data Normalization: Extracted information is converted into consistent fields for the project instrument index.
9. Engineering Validation: Rules can be applied to identify missing tags, duplicates, inconsistent information or unusual relationships.
10. Source Traceability: Each extracted record should remain traceable to its original drawing and location.
11. Human Engineering Review: Engineers review uncertain records and correct exceptions before the index becomes an approved engineering deliverable.

Simply extracting text is not sufficient. A tag such as PT 101 has engineering meaning only when its symbol, location, process connection and relationship with the relevant process system are understood.

Refer the below link for the Reading and Interpreting of Piping and Instrumentation Diagrams

Reading and Interpreting of Piping and Instrumentation Diagrams

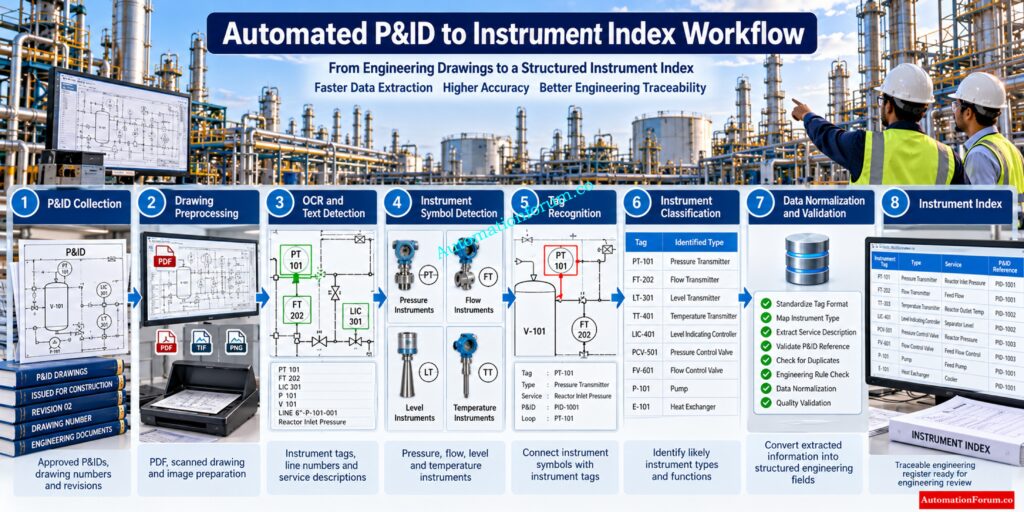

Practical EPC Example of Automated Instrument Index Generation

Consider a process unit containing several hundred instruments distributed across multiple P&IDs.

In a manual workflow, engineers open each drawing, identify instruments, record tags, enter services and references into Excel, check duplicates and compare the resulting index with other documents.

An automated workflow can first process the drawing package, detect symbols and tags, structure the extracted information and identify potential duplicates. Engineers can then focus their time on exceptions, unclear drawings and validation.

The major difference is therefore not that engineering review disappears. The workflow changes from repeated transcription toward verification and reconciliation.

Discover Which Engineering Documents Drive Instrumentation Design: Types of Engineering Drawings and Documents used in Instrumentation

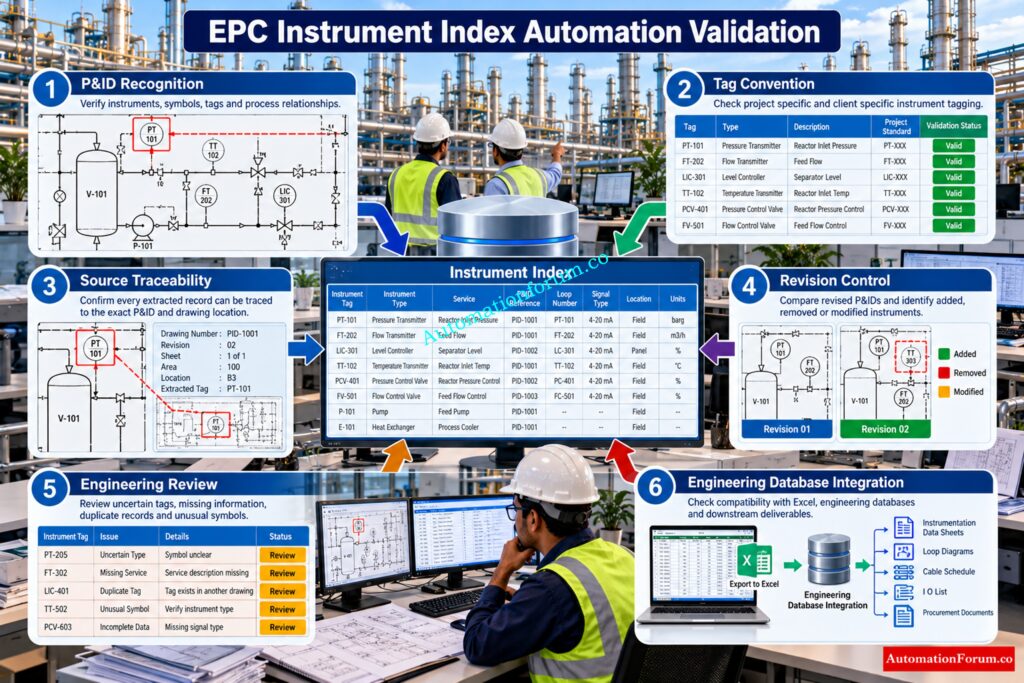

What Should EPC Engineers Check Before Selecting Instrument Index Generation Software?

Before adopting an instrument index automation system, engineers should evaluate:

1. Recognition performance on actual project drawings
2. Support for scanned and low quality P&IDs
3. Instrument symbol recognition
4. Project specific tag convention handling
5. Client specific field mapping
6. Traceability to drawing and source location
7. Revision comparison capability
8. Excel and engineering database compatibility
9. Human correction and validation workflow
10. Data security and confidential project handling
11. API and integration capability
12. Audit trail and exception handling

A controlled pilot using representative project drawings is more meaningful than relying only on demonstrations using clean sample drawings.

Refer the below link for the Catch Critical P&ID Errors Before Design Approval: P&ID Checklist for Instrumentation Design Engineer

P&ID Checklist for Instrumentation Design Engineer

Limitations of AI Based Instrument Index Generation From P&IDs

AI based P&ID extraction still has practical limitations.

1. Poor quality scans can affect OCR. Handwritten markups can be difficult to interpret. Overlapping symbols can create detection problems. Legacy P&IDs may use symbols and tag conventions that differ from current project standards.
2. Another important limitation is missing information. A P&ID may identify a pressure transmitter and its service but not contain the manufacturer, model, complete calibration range or all datasheet information.
3. False instrument detection and missed instrument detection are also possible. For this reason, engineering validation should remain part of the workflow.

ISA 5.1 provides standardized approaches for depicting and identifying instrumentation and control functions, but individual EPC companies and clients can have additional conventions. The current ANSI ISA 5.1 edition is the 2024 revision.

Define Control System Behavior Before Automation Engineering Begins: Control Narrative

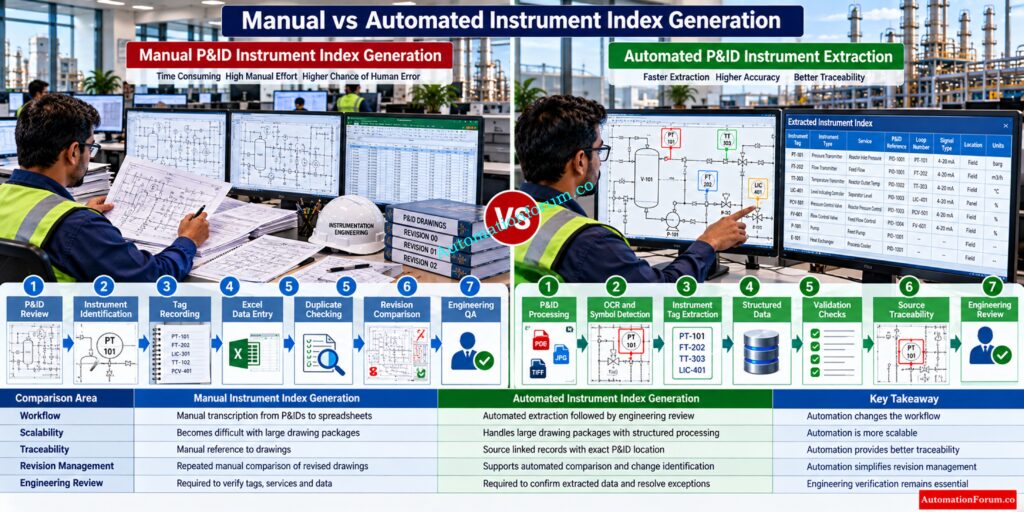

Manual Instrument Index Generation vs Automated P&ID Extraction

Area	Manual workflow	Automated workflow
Time	Repeated drawing review and data entry	Initial extraction followed by review
Scalability	Becomes difficult with large drawing packages	Designed for larger document volumes
Consistency	Depends heavily on individual engineers	Structured extraction can improve consistency
Traceability	Often manually maintained	Can be linked directly to source drawings
Revision management	Requires repeated comparison	Some tools provide automated comparison
Error detection	Engineering QA checks	Automated checks plus engineering review
Initial setup	Low technology requirement	Requires configuration and validation
Customization	Direct spreadsheet control	Depends on tool capability
Brownfield projects	Often difficult for large archives	Useful where scanned drawing support exists

Map Trips And Interlocks Before Final Safety Validation: Cause and Effect Drawings

Integration of Instrument Index Automation With EPC Engineering Deliverables

A reliable instrument index can become a useful source for downstream engineering activities.

These can include I/O lists, instrument datasheets, control valve schedules, shutdown valve schedules, DCS engineering, PLC engineering, SIS engineering, marshalling information, junction box schedules, cable schedules, loop diagrams, procurement records and commissioning databases.

The value increases when extracted records remain traceable to the original P&ID and can be reconciled with datasheets, cause and effect documents and other engineering registers.

See How Process Engineers Map Complete Plant Processes: Process Flow Diagram

Engineering Standards and Conventions for P&ID Instrument Extraction

• ISA 5.1 Instrumentation Symbols and Identification: ISA 5.1 is important when interpreting instrumentation symbols and identification methods.
• ISA 20 Instrument Specification Forms: ISA also maintains ISA 20 specifications covering forms for process measurement and control instruments.
• IEC 61511 and IEC 61508 for Safety Instrumentation: IEC 61511 and IEC 61508 can become relevant when safety instrumentation and SIL information are involved.
  Client P&ID Standards and Project Tagging Philosophy: Client engineering specifications and the project tagging philosophy remain equally important.

An automated tool should not be assumed to guarantee compliance with any engineering standard simply because it recognizes standard symbols.

Document PLC Alarms And Trips Before Plant Commissioning: PLC Alarm and Trip Documentation Procedure – EPC PLC Automation Engineer Guide

How to Evaluate the ROI of Instrument Index Automation

A practical EPC evaluation can use:

Manual engineering cost =

Number of P&IDs × average instruments per P&ID × average review and entry time per instrument × engineering hourly cost

Then compare this with:

Automation software cost + implementation cost + validation hours + revision processing effort

Potential rework avoided can also be considered.

The actual business case depends on project size, drawing quality, automation capability, engineering review requirements and integration depth.

Build Complete PLC Records For Reliable Automation Projects: PLC System Documentation Guide: Essential Records for Industrial Automation

Questions EPC Engineers Should Ask Before Using AI for P&ID Instrument Extraction

1. Can the system process scanned P&IDs?
2. Can every extracted tag be traced to the source drawing?
3. How are duplicate tags identified?
4. How are uncertain results presented?
5. Can engineers manually correct extracted information?
6. Can the output match our existing instrument index template?
7. Can the system compare P&ID revisions?
8. Can it recognize our client specific symbols and tag conventions?
9. How is confidential project information protected?
10. Can extracted data be integrated with our existing engineering systems?

Compare Powerful P&ID Platforms Used For Process Engineering: 11 Best P&ID Software Tools for Process Design Engineers in 2025

Frequently Asked Questions About Automated Instrument Index Generation

What is an Instrument Index?

An instrument index is an engineering register containing instrument tags, types, services, P&ID references, loop information and other project data.
It provides a structured reference for instrumentation design, procurement, commissioning and maintenance activities.

What is the difference between PID and P&ID?

In process engineering, most people call P&ID Piping and Instrumentation Diagram and PID Process Identification or other project specific terms. A P&ID shows process equipment, piping, valves, instruments and control relationships used for plant design and operation.

What is a P&ID diagram in instrumentation?

A P&ID is an engineering drawing that shows process equipment, piping, valves, instruments and their functional relationships.
Instrumentation engineers use P&IDs to develop instrument indexes, control loops, I/O information and related engineering deliverables.

What is the best software for creating P&IDs?

The choice of P & I D software should be based on project standards, symbol libraries, interface with engineering databases, and collaboration and document management needs.

Common engineering platforms include AutoCAD Plant 3D and AVEVA and Hexagon solutions, however appropriateness depends on the EPC project.

What is the ISO standard for P&IDs?

ISO 10628 is an international standard for diagrams for the chemical and petrochemical sector comprising the graphical representation of process plants.

Additional ISA standards and client specific P&ID conventions may be defined as per project requirements.

Which software is used for P&ID?

EPC businesses develop and maintain P&IDs by using specialist engineering platforms like AutoCAD Plant 3D, AVEVA and Hexagon tools.

The choice of software is usually dictated by client standards, project database and engineering workflow.

What software can I use to create a P&ID?

You can utilize specialized P&ID engineering tools like AutoCAD Plant 3D or other plant design platforms used by EPC businesses.
For professional projects, check symbol standards, data management, collaboration and compatibility with the client’s engineering system.

What is the best free software for creating P&IDs?

Free P&ID tools can be useful for learning, basic diagrams and small engineering exercises.
For EPC projects, engineers generally need controlled symbols, engineering data management, revision control and project specific standards.

Which AutoCAD is best for P&ID?

AutoCAD Plant 3D is intended for plant design workflows, and provides tools for developing P&IDs and related engineering information.

The final choice should be based on the client’s necessary software platform and engineering requirements for an EPC project.

What is automated instrument index generation from P&IDs?

Automated instrument index generation uses OCR, computer vision, AI and engineering rules to extract instrument information from P&IDs.
The extracted information can then be structured into an instrument index for engineering review and validation.

Can AI generate an instrument index from a PDF P&ID?

Yes, there are specialized AI tools that can extract instrument tags and associated information from PDF P&IDs.

The index extracted has still to be validated by an instrumentation engineer before being entered into an approved engineering registry.

What information can AI extract from a P&ID?

AI is able to pull out instrument tags, instrument types, services, line numbers, equipment linkages and drawing references depending on the software.
Additional information may require datasheets, I/O lists or other engineering documents.

What is the difference between OCR and P&ID understanding?

OCR mainly converts text in a drawing into machine readable information.
P&ID understanding also interprets symbols, relationships, process lines, equipment and engineering context.

Can automated tools generate I/O lists from P&IDs?

Some automated engineering platforms provide I/O extraction or I/O list generation workflows from P&IDs.
However, a complete approved I/O list may require information from control system engineering and other project documents.

Can AI tools handle scanned P&IDs?

Some specialized P&ID analysis tools support scanned drawings and image based documents.
Extraction quality can still depend on resolution, drawing condition, OCR quality and project specific symbols.

How accurate is automated instrument index generation?

Accuracy depends on the software, P&ID quality, drawing complexity, tagging conventions and engineering configuration.
Vendor accuracy claims should be validated using representative project drawings before production use.

Does an automated instrument index still require engineering review?

Yes, engineering review remains important for unclear tags, missing information, unusual symbols and conflicting documents.
Automation should support engineering verification rather than replace the responsible instrumentation engineer.

Learn Exactly What A Complete Instrument Register Contains: Instrument Index: Definition, Example, Template and How to Create One

Conclusion: Automated Instrument Index Generation From P&IDs

Automated instrument index generation from P&IDs can change an EPC workflow from extensive manual transcription toward structured extraction, validation and reconciliation.

The appropriate solution depends on project size, P&ID quality, engineering standards, required output, integration requirements, data security, validation workflow and revision management.

https://automationforum.co/instrument-index-generator/For instrumentation engineers, the most important evaluation criterion is not simply whether a tool can read a tag. The practical question is whether the system can produce traceable engineering data that fits the project workflow and can be confidently reviewed before becoming an approved deliverable.

Refer the below link for the Instrument Index Generator for EPC Instrumentation Projects

Instrument Index Generator for EPC Instrumentation Projects
