Introduction to Transmitter Calibration Calculator

A transmitter in an industrial plant is only as useful as the scaling behind it. In a 4 to 20 mA loop, the current signal must correctly represent the process variable so the control system, operator display, alarms, and interlocks all behave as intended. That is why transmitter calibration remains a core skill for instrumentation engineers, control engineers, and commissioning teams. The calculator behind this topic helps engineers reverse interpret a current signal and a known process value to understand signal percentage, span, LRV, and URV in a practical field situation.

This is not just a classroom formula. It is the kind of logic used during loop checks, transmitter configuration review, field troubleshooting, and DCS or PLC scaling verification. The basic principle is simple. Four mA represents zero percent of the active range, twenty mA represents one hundred percent of the active range, and the sixteen mA between them represents the usable measurement span. The calculator uses that relationship to help engineers interpret transmitter output in real engineering units.

Transmitter Calibration Calculator

Master dry calibration fast with this proven calculator: Displacer Level Transmitter Calibration Calculator for Dry Calibration Step by Step Guide

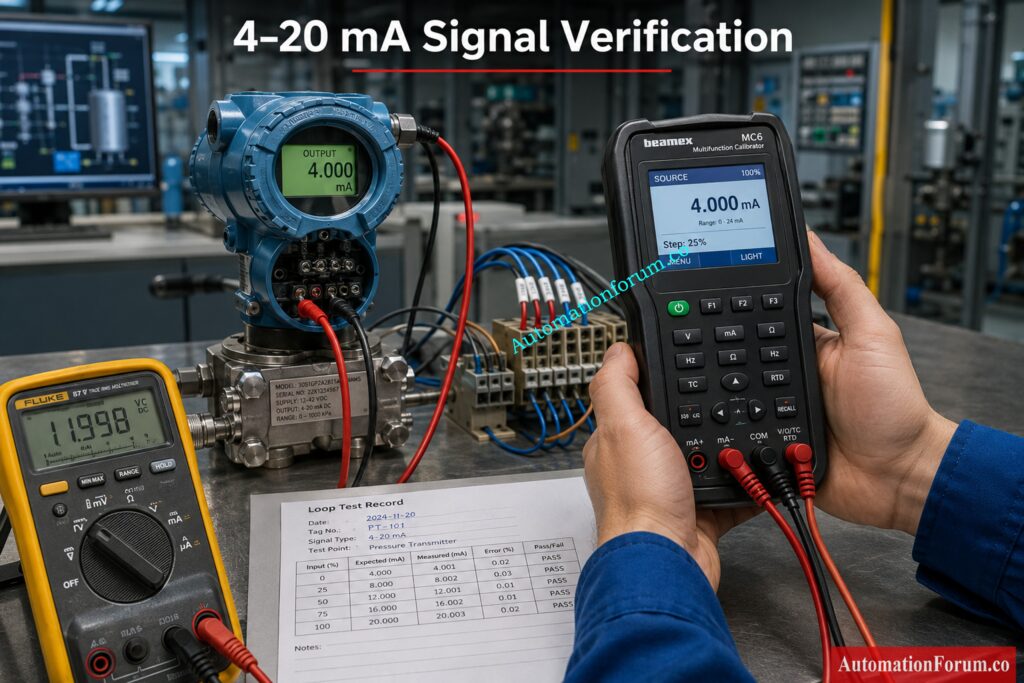

What Is a Transmitter Calibration Calculator?

How the calculator interprets the signal

This calculator works as a reverse calculation tool for transmitter scaling. It takes a measured current value in the 4 to 20 mA range and a corresponding process variable value, then uses that information to determine the percentage of signal, the inferred span, and the estimated LRV and URV. This makes it especially useful when the engineer already knows the current output and the measured process condition but wants to understand the scaling behind it.

In real plant work, that situation happens often. A technician may measure 12 mA at a pressure transmitter and know the process is around 5 bar. A commissioning engineer may see a flow transmitter at 16 mA and want to confirm the range configuration. A maintenance engineer may be checking whether a level transmitter display matches the field signal. The calculator turns that practical field observation into usable calibration information.

Why reverse logic matters in transmitter calibration

Normally, transmitter scaling is explained from range to current. Here the calculator does the opposite. It starts with the signal and the process variable, then works backward to infer the measurement span. That is useful because field instruments do not always arrive in a neat configuration sheet. Sometimes the engineer sees the signal first and has to determine whether the transmitter is configured as expected.

One important limitation must always be remembered. At exactly 4 mA, the signal percentage becomes zero. Because the calculator depends on signal percentage in the span calculation, span, LRV, and URV cannot be derived from that one point alone using the displayed method. That is an important engineering detail and a good reminder that a single low end point cannot fully describe a range.

Crush challenging DP quiz questions with confidence today: Advanced DP Transmitter Calibration Quiz For Instrumentation Engineers And Technicians

Why Transmitter Scaling and Calibration Are Important

Impact on control stability, alarms, and operator trust

Correct scaling is not a minor configuration detail. It affects control stability, alarm logic, trend accuracy, and operator trust. If a transmitter is scaled incorrectly, a process may look normal while actually drifting outside safe limits, or it may appear to be in alarm when the process is healthy. In a plant environment, that can lead to poor decisions, unnecessary shutdowns, or unsafe operation.

Why LRV, URV, and span must be correct

Span, LRV, and URV also define how the control system interprets the process. If the URV is too low, the signal saturates too early. If the LRV is wrong, the whole range shifts and every displayed value becomes misleading. For a control loop, that means the PID controller receives the wrong process feedback. For an alarm system, it means the threshold may no longer represent the actual process condition. This is why calibration and scaling must always be checked together.

Ace level transmitter interview questions before the competition: Level Transmitter Calibration Quiz for Instrumentation Technicians and Engineers Interview

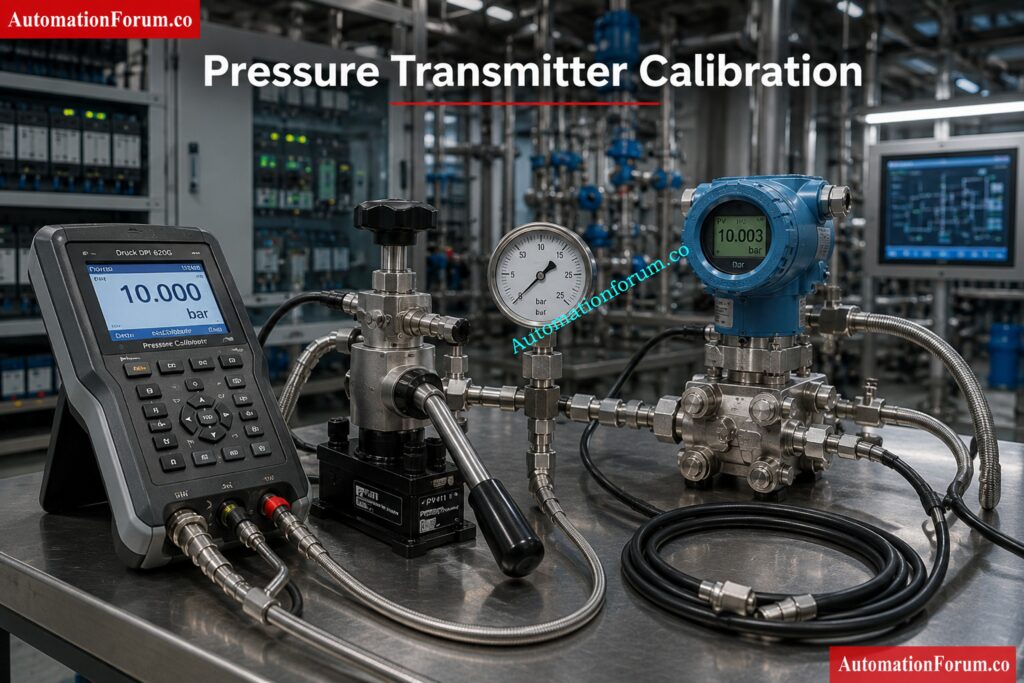

Transmitter Calibration Calculator Inputs

mA output

The first input is the current signal, which should be within the standard 4 to 20 mA loop range. Four mA is the live zero point and twenty mA is the live full scale point. The calculator is built around that standard analog signal relationship, so the engineer can use it for transmitter analysis, calibration review, and loop validation.

Process variable

The second input is the process variable. This is the actual measured value in engineering units such as bar, degree Celsius, liters per hour, or millimeters. In one loop, the PV may represent pressure. In another, it may represent temperature. In another, it may represent level or flow. The calculator does not change the signal math when the engineering unit changes, which is exactly how industrial instrumentation works in practice.

Practical examples of PV

For a pressure transmitter, PV may be 0 bar, 2.5 bar, 5 bar, or 10 bar. For a temperature transmitter, PV may be 25 degree Celsius, 75 degree Celsius, or 125 degree Celsius. For a flow transmitter, PV may be expressed in liters per hour or another flow unit. For a level transmitter, PV may be shown in millimeters. The sample table in the calculator demonstrates these different applications clearly.

Decode pressure transmitter workbench wiring with HART clarity: Wiring Diagram for Pressure Transmitter Calibration in Workbench using HART

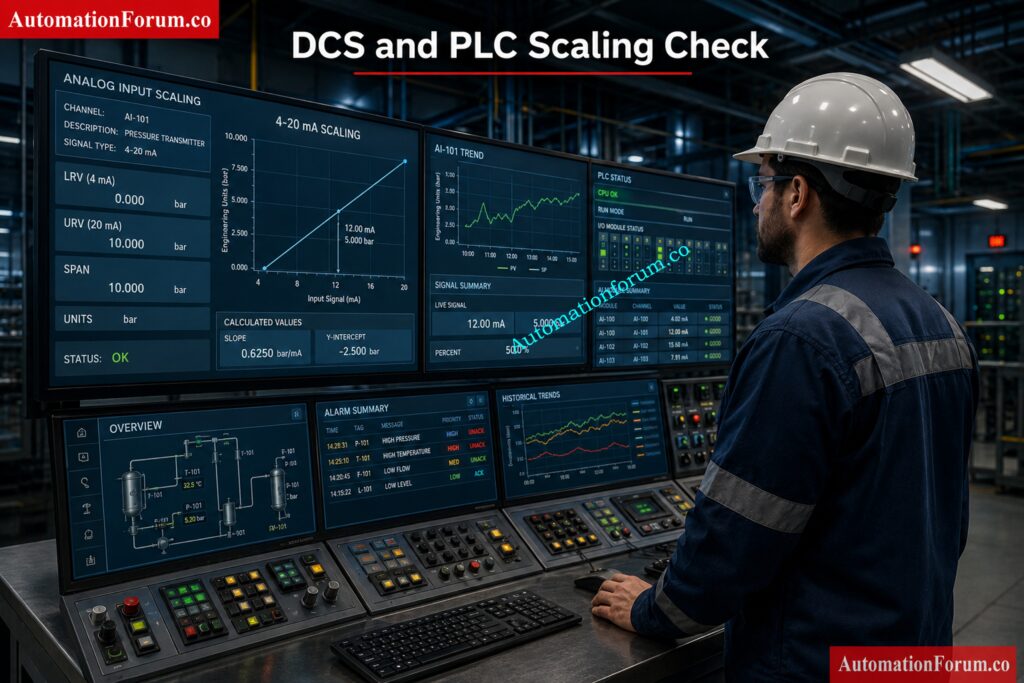

Transmitter Calibration Calculator Outputs

Signal percentage

Signal percentage tells the engineer how far along the active current range the transmitter is operating. This is useful because it converts mA into a simple proportional view of the measurement. A signal at 50 percent means the transmitter is exactly halfway through its usable span. That is often the fastest way to understand whether the field signal is behaving correctly.

LRV (Lower Range Value)

LRV means lower range value. It is the bottom of the configured measurement range. In transmitter calibration, it represents the engineering value associated with the low end of the signal. When the transmitter is set up properly, LRV must align with the process design and the instrument installation condition.

URV (Upper Range Value)

URV means upper range value. It is the top of the configured measurement range. In simple terms, it is the value the transmitter should represent at full scale. If the URV is wrong, the control room display may still look active but the measurement meaning will be incorrect.

Span

Span is the difference between URV and LRV. It is the full width of the measurement window. For engineers, span is one of the most important calibration values because it defines the working range of the transmitter. The calculator shows span directly so the user can quickly verify whether the range makes sense for the application.

Calculate DP level and density ranges instantly online: Excel tool for DP type level and density transmitter calibration range calculation

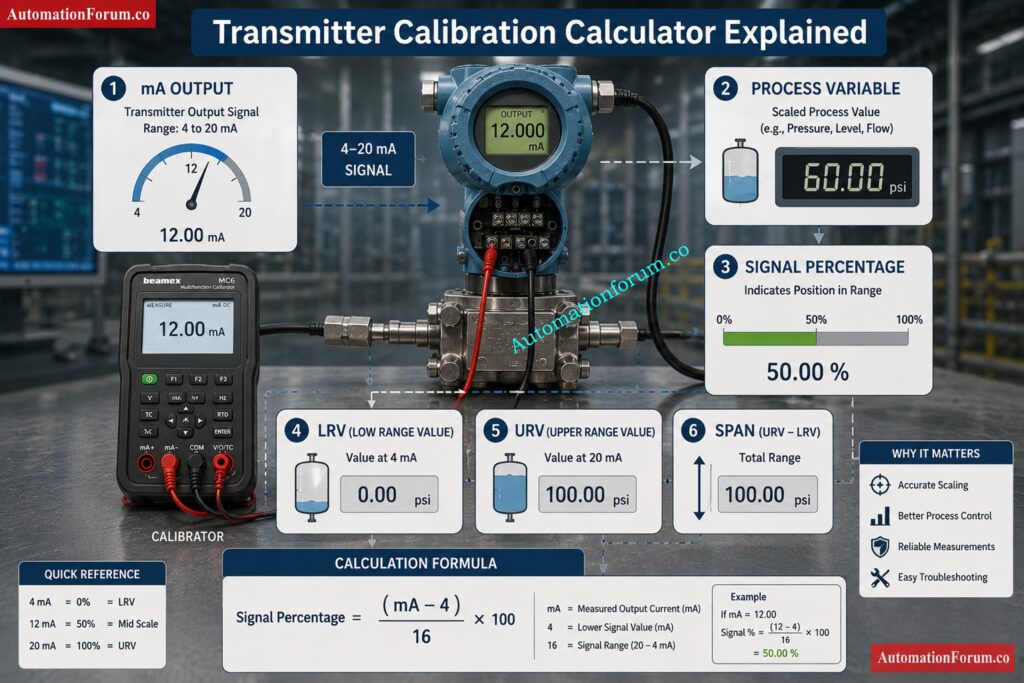

Formulas Used in Transmitter Calibration Calculation

Signal Percentage Formula

The first formula is used to convert current to signal percentage.

Signal percentage = (mA minus 4) divided by 16 times 100

This works because the active signal range is 16 mA wide. The live zero at 4 mA gives 0 percent, the midpoint at 12 mA gives 50 percent, and the full scale at 20 mA gives 100 percent. That proportional behavior is what makes 4 to 20 mA so useful in industrial control systems.

Improve instrument accuracy calculations with one quick check: Instrument Accuracy Calculator

Span Formula

The second formula is used to estimate span.

Span = PV divided by signal percentage divided by 100

Once the signal percentage is known, the process value can be used to infer the full range width. This is the reverse calculation logic used by the calculator. It is useful for checking how a transmitter output relates to the engineering scale behind it.

LRV Formula

The third formula is used to estimate LRV.

LRV = PV minus signal percentage divided by 100 multiplied by span

This identifies the lower end of the range based on the known PV and signal position. It helps the engineer understand where the measurement window begins.

URV Formula

The fourth formula is used to estimate URV.

URV = LRV plus span

This gives the upper end of the measurement range. Together with LRV and span, it completes the range picture for the transmitter.

Get flawless pH calibration using trusted standard solutions: pH transmitter calibration with standard solutions

Worked Examples of Transmitter Calibration Calculation

Pressure Transmitter Example

Item	Value
mA output	12 mA
PV	5 bar
Signal percentage	50 percent
Span	10 bar
LRV	0 bar
URV	10 bar

At 12 mA, the signal is halfway between 4 mA and 20 mA. That means the transmitter is at 50 percent of range. If the process variable is 5 bar, then the full span must be 10 bar. The calculated LRV is 0 bar and the URV is 10 bar, which matches a very common pressure transmitter range. This is exactly the type of practical check that engineers use during commissioning and calibration review.

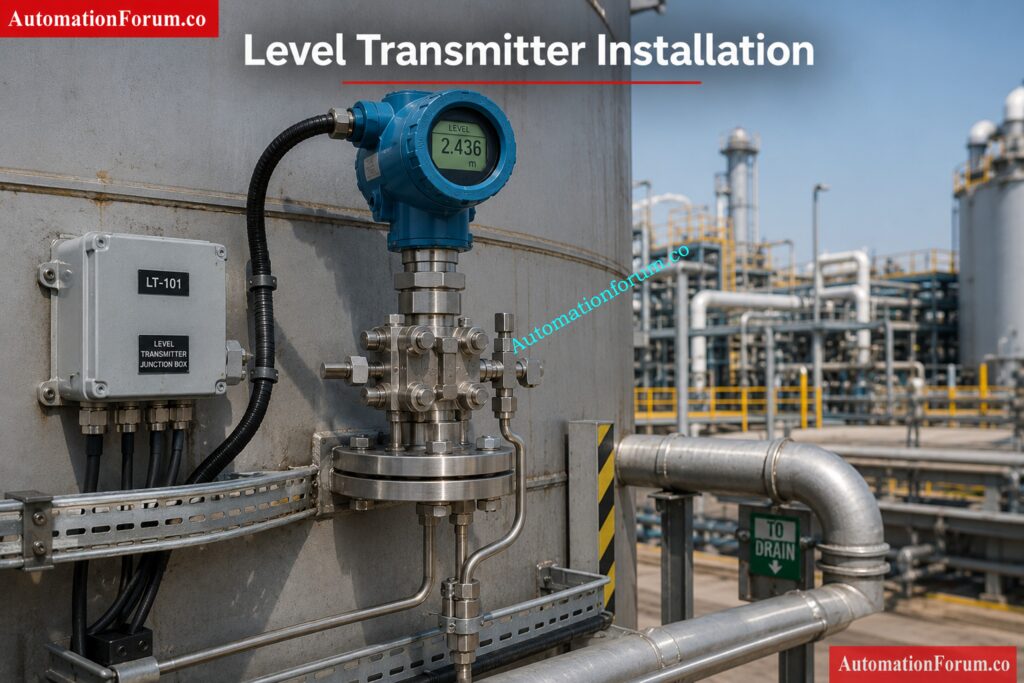

Level Transmitter Example

Item	Value
mA output	16 mA
PV	500 mm
Signal percentage	75 percent
Span	666.67 mm
LRV	0 mm
URV	666.67 mm

At 16 mA, the signal is at 75 percent of the active range. If that corresponds to 500 mm, the inferred span is 666.67 mm. That tells the engineer the transmitter is not simply using a rounded 1000 mm scale. It may reflect actual installation geometry, zero elevation, or process design details.

Follow a sharp conductivity calibration process without mistakes: Conductivity Transmitter Calibration Procedure

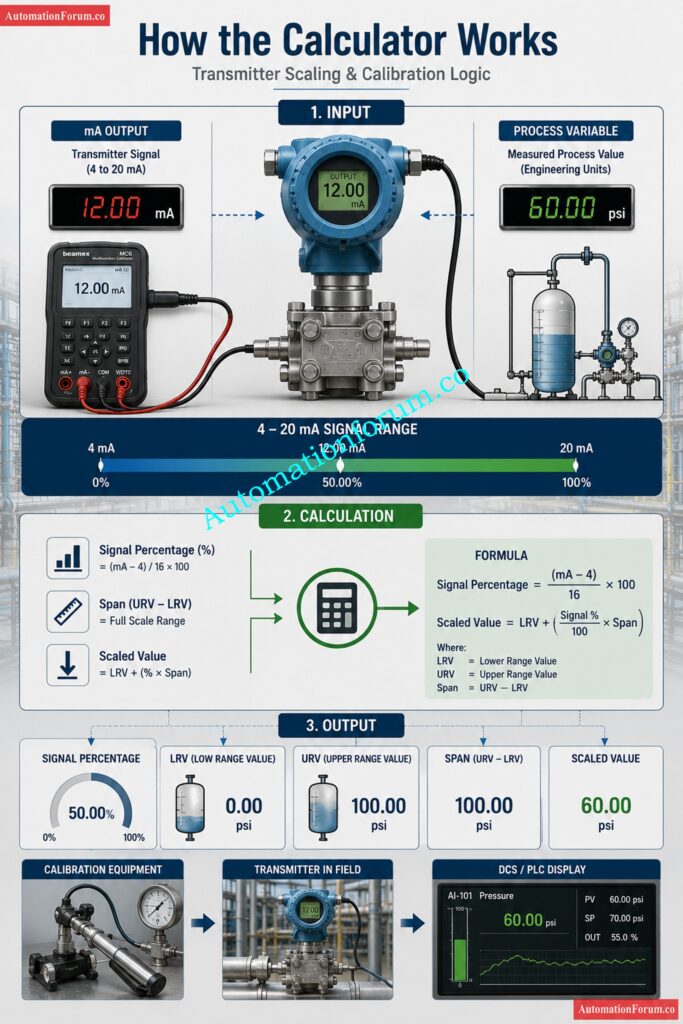

Industrial Applications of Transmitter Calibration Calculator

This transmitter calibration calculator is widely used across process industries to verify transmitter scaling, perform calibration checks, and validate measurement ranges.

• Applications of Pressure, Flow and Level Transmitters for Oil and Gas Plants
• Boiler Pressure, Steam Flow, Drum Level and Temperature Measurement Power Plants
• Reactor, vessel and utility measurements in chemical and petrochemical plants
• Monitoring tank levels and flows in water and wastewater treatment plants
• Pharmaceutical and food processing sectors for crucial process control applications
• Manufacturing plants: production systems and process monitoring
• Loop testing, commissioning and verification of start-up tasks
• DCS and PLC Analog Input Scaling Verification

Learn HART transmitter calibration like a seasoned expert: HART transmitter calibration procedure – For pressure transmitter

Design Considerations for Transmitter Calibration

Selecting the right range and scale is critical to get good measurements and to keep process control steady.

• Check if the process measurement has a linear relationship
• Take into account zero suppression and elevation requirements
• Select a range based on transmitter turndown capabilities
• Consistent use of engineering units throughout the system
• Account for implications of installation location and reference elevation
• Choose a range that includes average and maximum operating conditions
• Use appropriate limitations in the transmitter are confirmed

Unlock smarter weight-based displacer calibration for liquid service: Displacer Level Transmitter Calibration Using Weight for Single Liquid Applications

Engineering Best Practices for Accurate Calibration

Good engineering practice helps to increase the precision of measurement and the reliability of the system.

• Check transmitter range parameters against approved datasheets
• Cross check configuration and loop drawings, and control narratives
• Check output signals with a calibrator or loop simulator
• Verify that DCS or PLC scaling matches the transmitter configuration.
• Alarm, trip and interlock points setting.
• Low, mid, and high point verification checks
• Maintain appropriate calibration records and documentation
• Review scaling any time a transmitter is replaced or adjusted

Refer the below link for Step-by-Step Pressure Transmitter Calibration Guide (NIST & IEC 61508 Aligned)

Step-by-Step Pressure Transmitter Calibration Guide (NIST & IEC 61508 Aligned)

Common Transmitter Calibration Mistakes

But a lot of the trouble with transmitters is caused not by instrument failures, but by setup and scaling issues.

• Confusing LRV and URV values when setting up
• 4 mA equals 0 technical units (usually assumed
• Ignore zero suppression or zero elevation effects
• Incorrect engineering unit conversions
• Incorrect span used during calibration or commissioning
• Improper setting of DCS or PLC scale parameters
• No calibration check at several test points
• No update of alarm limits when range changes

Solve interface level dry calibration with confidence: Displacer type interface level transmitter dry calibration weight calculator

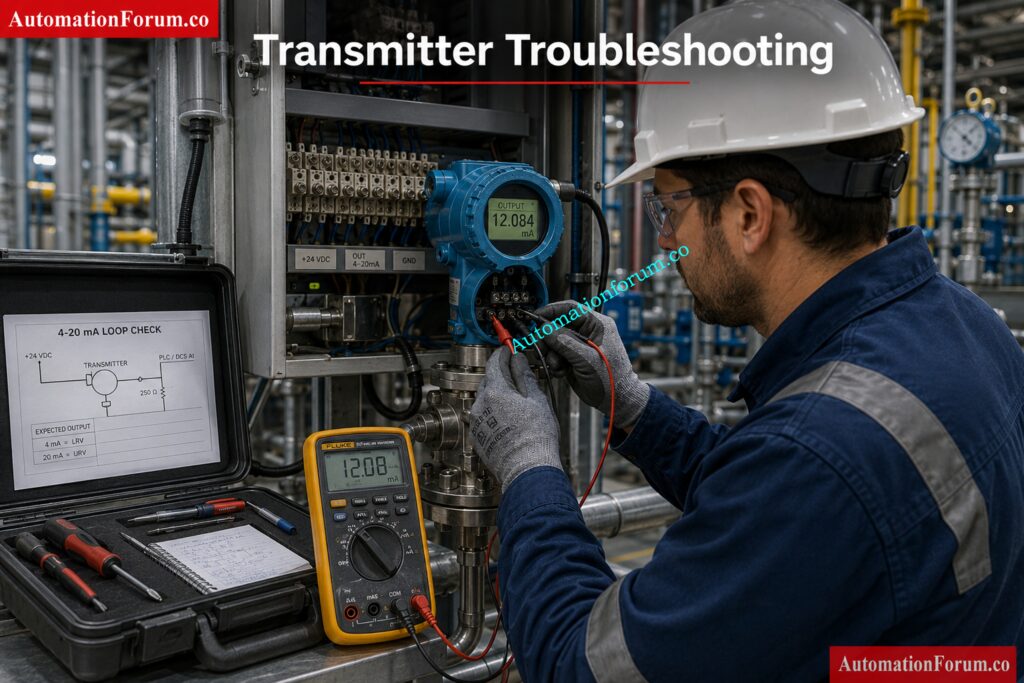

Troubleshooting Transmitter Calibration Errors
