Explanation:
Proper documentation ensures traceability, maintenance reference, audit compliance, and future troubleshooting support. Final commissioning records include calibration data, configuration parameters, loop checks, and test reports.

Explanation:
Coating buildup can weaken radar reflections and produce inaccurate readings. Cleaning the probe and adjusting signal parameters restore reliable measurement performance.

Explanation:
Incorrect probe length configuration can cause scaling errors, inaccurate readings, and incorrect level calculations. Engineers must verify actual installed probe length against configured parameters.

Explanation:
Guided wave radar performs reliably under harsh industrial conditions including extreme temperatures, pressure variations, and vapor environments.

Explanation:
Improper calibration settings or reflections from nearby structures can cause the transmitter to misinterpret echoes as product level, resulting in false full level indication.

Explanation:
Echo curve analysis allows engineers to evaluate reflection strength, false echoes, signal loss, and process interference conditions during troubleshooting and commissioning.

Explanation:
Long nozzles generate additional microwave reflections that can interfere with accurate level detection. Proper nozzle dimensions improve signal quality during commissioning.

Explanation:
Grounding shield cables at both ends can create circulating currents and electrical noise. Standard practice is grounding at one end only to avoid interference.

Explanation:
Guided wave radar technology provides accurate level measurement even under varying pressure conditions because microwave propagation is minimally affected by pressure changes.

Explanation:
HART communicators allow engineers to configure measurement ranges, damping, echo mapping, diagnostics, and output scaling during commissioning activities.

Explanation:
Thick foam can absorb microwave energy, resulting in weak reflections and unstable measurement. Proper probe selection and parameter optimization help reduce this issue.

Explanation:
The blocking distance prevents measurement processing near the probe top where strong reflections can occur. This avoids false level detection near the mounting area.

Explanation:
Improper centering causes reflections from chamber walls, producing inaccurate readings and unstable echo profiles. Proper alignment is critical during installation verification.

Explanation:
Damping filters rapid process fluctuations and stabilizes transmitter output signals. This prevents unnecessary control system oscillations and nuisance alarms.

Explanation:
Cable probes are suitable for taller vessels and long measuring distances because they provide flexibility and extended measurement capability compared to rigid rod probes.

Explanation:
Heavy vapor and condensation can weaken or distort radar signals. During commissioning, engineers may enable vapor compensation, optimize probe selection, or modify installation arrangements.

Explanation:
Loop checking confirms proper signal transmission from the field instrument to the PLC, DCS, or SCADA system. It verifies scaling, signal integrity, alarm response, and communication reliability.

Explanation:
Direct product impact can create turbulence, probe vibration, false echoes, and unstable readings. Proper installation away from inlet streams improves measurement reliability.

Explanation:
Incorrect polarity can damage the transmitter or prevent startup. Instrumentation engineers must verify terminal wiring, loop continuity, grounding, and supply voltage before power application.

Explanation:
Guided wave radar uses microwave pulses traveling along the probe, making it less affected by vapor, dust, temperature, and pressure changes compared to ultrasonic transmitters. This improves reliability in difficult process applications.

Explanation:
Standard industrial analog signals use 4 mA as the lower range value and 20 mA as the upper range value. During commissioning, technicians verify correct scaling between physical level and transmitter output.

Explanation:
Improper grounding can introduce electrical noise and unstable communication signals. Grounding ensures reliable HART communication, stable output signals, and protection against electromagnetic interference during operation.

Explanation:
Guided wave radar transmitters depend on reflected microwave energy. Liquids with low dielectric constants generate weaker reflections, making proper probe selection and sensitivity settings critical during commissioning. Incorrect dielectric configuration can lead to weak echoes and signal loss.

Explanation:
When the guided wave radar probe contacts the tank wall, strong unwanted reflections occur. This produces unstable readings, signal distortion, and measurement fluctuations. Proper installation clearance from the tank wall is essential during commissioning verification.

Explanation:

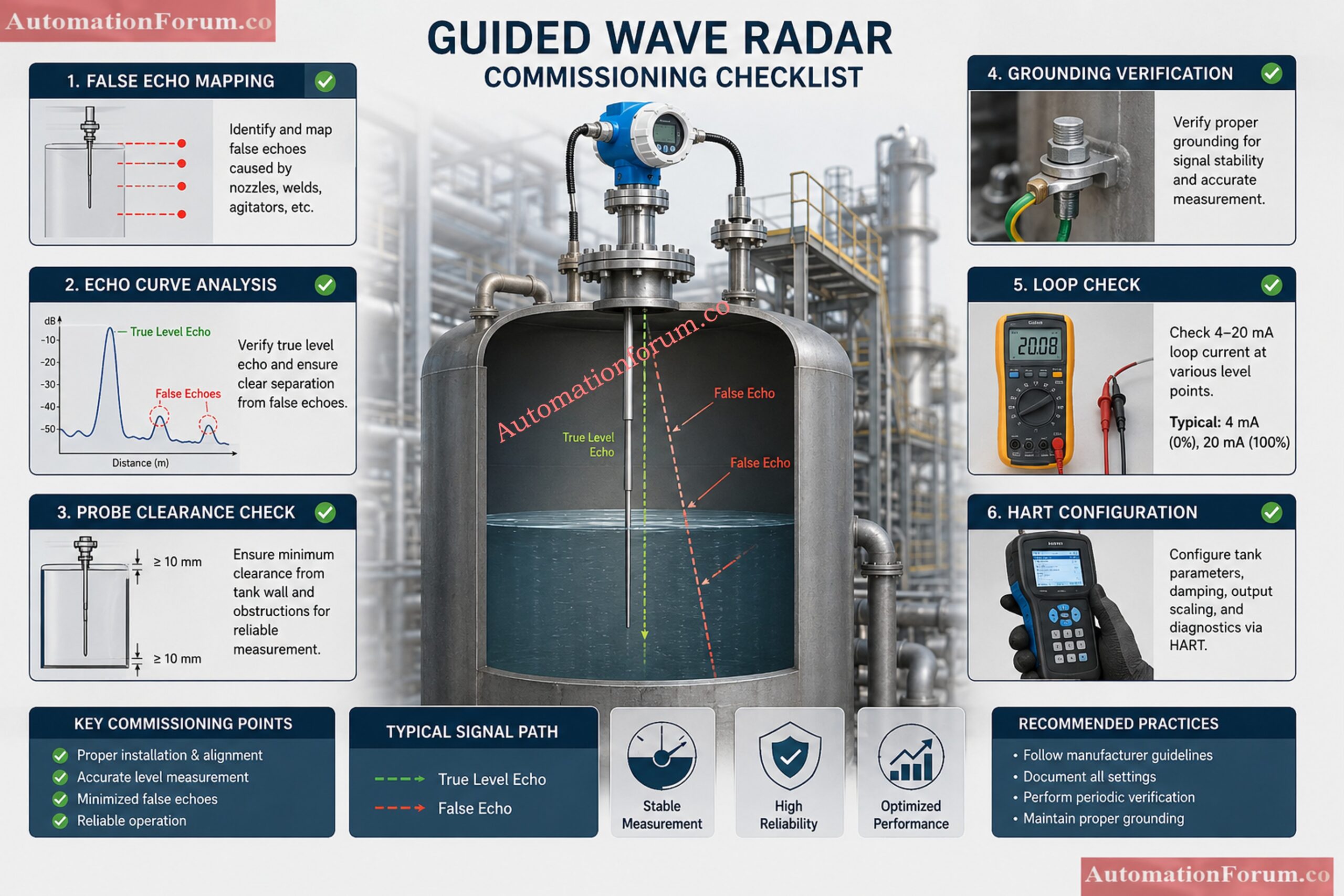

False echo mapping is performed to eliminate unwanted reflections generated from nozzles, agitators, ladders, heating coils, and tank internals. During commissioning, the transmitter stores these interference echoes so that only the actual product reflection is processed for level measurement. This improves measurement stability and prevents false level indication.
