What is a control valve and how does it work

• Control valves are critical components in various industrial systems, acting as the final control elements that modulate fluid flow, pressure, temperature, and level.
• These devices respond to signals from external controllers to adjust their position, thereby controlling the process parameters to desired levels.

This comprehensive guide explores the essential aspects of control valves, including their components, working principles, types, applications, selection criteria, and troubleshooting.

Understanding Control Valves

• A control valve is a power-operated device used to regulate or manipulate the flow of fluids, including gasses, liquids, and steam.
• It is a fundamental part of a control loop, serving as the final control element that implements the control strategy determined by the controller.
• The primary function of a control valve is to vary the size of the flow passage, as directed by a signal from a controller, to achieve the desired process variable.
• This enables the direct control of flow rate and the consequential control of other process quantities, such as pressure, temperature, and liquid level.

Key Components of a Control Valve

Control valves are complex devices consisting of multiple components, each playing a vital role in their operation:

1. Valve Body: The valve body is the housing that contains the internal trim parts, such as the plug, seat, and other components that allow the fluid to flow through the valve. The valve body is designed to withstand the static and differential pressures of the process fluid, as well as provide the necessary pipe-connecting ends and support for the seating surfaces and closure member..
2. Bonnet: An extension of the valve body that covers and protects the valve’s internal moving parts. It also supports the actuator.
3. Trim: The internal components that come into direct contact with the process fluid. This includes the valve plug, seat, and stem, which are crucial for controlling the fluid flow.
4. Actuator: The actuator is the power source that provides the force to open and close the valve. Actuators can be pneumatic, hydraulic, or electric, and they are responsible for moving the valve’s modulating element, such as a ball or butterfly.
5. Positioner: The positioner is a device that ensures the valve has reached the desired degree of opening. It helps overcome issues related to friction and wear, ensuring the valve accurately achieves the desired position. Positioners can be pneumatic, electro-pneumatic, or digital, with the latter offering advanced functionality, including diagnostics and two-way digital communication.

Click here for Calibration of Control Valve Positioner

6. Gland Packing: Seals the valve stem to prevent fluid leakage where the stem exits the bonnet.
7. Diaphragm: Used in some actuators, it converts the control signal into mechanical movement.
8. Yoke: A structural component that supports the actuator and connects it to the valve body.

How Control Valves Work

Working Principle of Control valve

• The primary function of a control valve is to modulate the flow of fluids through a system.
• This modulation is achieved by varying the position of a movable element (e.g., a plug or disc) within the valve, which adjusts the size of the flow passage.

The operation of a control valve can be summarized as follows:

Receiving a Control Signal:

• The control valve receives a signal from a controller, such as a PLC or DCS, which indicates the desired position of the valve.
• This signal can be an electrical, pneumatic, or digital communication protocol.

Actuator Movement:

• The actuator, based on the received signal, moves the valve’s modulating element (e.g., plug, ball, or butterfly) to the desired position.
• This changes the size of the flow passage, allowing more or less fluid to flow through the valve.

Feedback and Adjustment:

• A valve positioner monitors the actual position of the valve and compares it to the desired position.
• If there is a difference, the positioner adjusts the actuator to ensure the valve reaches the intended position.
• This feedback loop helps overcome issues related to friction, wear, and other factors that could affect the valve’s accuracy.
• Advanced devices that use microprocessors to control valve positioning accurately, supporting digital communication protocols like HART or Profibus?

Process Variable Control:

• By adjusting the valve position, the control valve regulates the flow of the process fluid, which in turn affects the process variable, such as pressure, temperature, or flow rate.
• The controller continuously monitors the process variable and adjusts the control valve to maintain the desired setpoint.
• The control valve’s ability to precisely regulate the flow of fluids is crucial in maintaining the stability and efficiency of industrial processes.
• It allows for the direct control of flow rate and the consequential control of other process variables, making it a critical component in a wide range of applications.

How Does a Control Valve Receive a Signal From a DCS or PLC?

A control valve normally operates as part of a complete control loop rather than as an isolated device. The controller calculates the required corrective action based on the process variable and sends an output signal to the valve assembly.

A typical control loop works in the following sequence:

Process measurement → Transmitter → DCS or PLC → PID controller → Output signal → I/P converter or positioner → Actuator → Control valve → Process

For example, in a flow control loop, a flow transmitter measures the actual flow and sends the measurement to the DCS. The PID controller compares the measured flow with the setpoint and calculates the required valve position.

The controller output is then sent to the valve positioner. The positioner converts the command into the required actuator pressure or movement and drives the valve to the required position.

The resulting change in valve opening changes the process flow. The transmitter measures the new flow and the control loop continuously repeats this process.

This closed loop operation allows the control valve to continuously compensate for process disturbances and maintain the controlled variable close to its setpoint.

Types of Control Valves

Control valves can be classified based on their design, actuation, and functionality:

Classification by Design

Sliding-Stem Valves:

• These valves use linear motion to move a closure member, such as a plug, into and out of a seating surface.
• Examples include globe valves and diaphragm valves.

Rotary Valves:

• These valves use rotational motion to turn a closure member, such as a ball or butterfly, into and out of a seating surface.
• Examples include ball valves and butterfly valves.

Classification by Control Valve Actuation Type

Pneumatic Actuators:

• These actuators use compressed air to provide the force required to open and close the valve.
• Pneumatic actuators are the most common type due to their simplicity and reliability.

Hydraulic Actuators:

• Hydraulic actuators use a pressurized liquid, typically oil, to operate the valve.
• They are often used in applications where high forces are required, such as in large valves.

Electric Actuators:

• Electric actuators use an electric motor and gear reduction system to move the valve.
• They are becoming increasingly popular due to their precision, efficiency, and ease of integration with digital control systems.

What Are Fail Open, Fail Close, and Fail in Place Control Valves?

The failure action of a control valve defines what the valve should do when the actuator loses its operating power, instrument air, or control signal.

Fail Open

A fail open valve moves toward the open position when the actuator loses its required power or air supply.

This action may be selected when continued flow is safer than stopping the process flow.

Fail Close

A fail close valve moves toward the closed position when the actuator loses its operating power or air supply.

This is commonly selected when stopping the flow is required to protect equipment or prevent an unsafe process condition.

Fail in Place

A fail in place arrangement attempts to maintain the valve near its existing position following a loss of the normal control signal or actuator supply.

The required failure action must be determined from the process safety requirements and the consequences of valve failure. It should not be selected simply because a particular actuator configuration is commonly used.

The valve failure position should be clearly defined during control system and process safety engineering and reflected in the relevant P and ID, control narrative, cause and effect documentation, and valve datasheet.

Classification by Functionality of Control valve

On-Off Valves:

• These valves are designed to either fully open or fully close, providing a binary control function.
• They are commonly used for isolation or emergency shutdown applications.

Modulating Valves:

• Modulating valves can be positioned anywhere between fully open and fully closed, allowing for precise control of the flow rate.
• They are used in applications where continuous adjustment of the process variable is required.

Pressure Reducing Valves:

• These valves automatically reduce a higher inlet pressure to a lower outlet pressure, regardless of changes in flow rate or inlet pressure.
• They are used to manage pressure in distribution networks.

Pressure Sustaining/Relief Valves:

• These valves automatically maintain a minimum preset inlet pressure by relieving excess pressure to prevent damage to the system.

Classification by Control Valve Body

• Control valves come in various types, each suited to specific applications and fluid types:

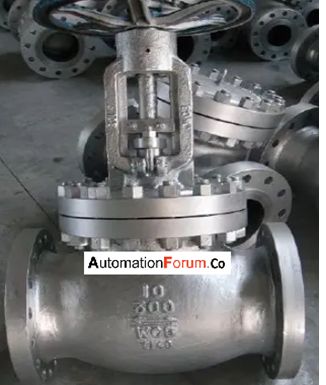

Globe Valves:

• With a linear motion design, globe valves are ideal for precise flow control.
• The plug moves perpendicular to the flow, throttling the fluid as needed.

Ball Valves:

• These valves use a spherical disc to control flow and are known for their durability and ease of operation.
• They are typically used for on/off control rather than throttling.

Butterfly Valves:

• These have a disc that rotates around an axis to control flow.
• They are lightweight and suitable for handling large flow volumes.

Diaphragm Valves:

• Utilizing a flexible diaphragm, these valves are excellent for handling corrosive fluids and slurries.

Angle Valves:

• Designed with inlet and outlet ports at right angles, angle valves are used in applications requiring directional flow changes

Control Valve Characteristics

The performance of a control valve is defined by its flow characteristics, which describe the relationship between valve opening and flow rate:

Linear Characteristic:

• Flow rate increases linearly with valve opening.
• This is suitable for processes where the valve differential pressure remains constant.

Equal Percentage Characteristic:

• Flow rate changes exponentially with valve opening.
• Ideal for processes where the valve differential pressure varies significantly.

Quick Opening Characteristic:

• A small change in valve opening results in a large change in flow rate. Useful for rapid on/off control?.

Click here for more about Control valve characteristics

How Is a Control Valve Sized?

Control valve sizing is one of the most important steps in valve selection. A valve that is too small may not provide the required flow capacity, while an oversized valve can operate close to the seat for much of its normal operating range and may provide poor controllability.

The required valve capacity depends on process conditions such as:

Flow rate

Upstream pressure

Downstream pressure

Pressure drop across the valve

Fluid temperature

Fluid density

Specific gravity

Vapor pressure

Fluid viscosity

Gas compressibility

Required operating range

For many control valve applications, the required flow capacity is expressed using the Cv value.

Cv represents the flow capacity of a valve under defined reference conditions. The required sizing equation depends on whether the service involves a liquid, gas, or steam and whether special flow conditions such as choking or cavitation are present.

The valve should therefore be sized using the applicable engineering equations rather than selecting a valve based only on pipe size.

IEC 60534 and the ISA 75 series provide recognized guidance for control valve flow capacity and sizing. IEC 60534 2 1 covers sizing equations for compressible and incompressible fluid flow under installed conditions.

Why Oversizing a Control Valve Can Be a Problem

An oversized control valve may provide more capacity than the process actually requires.

This can result in:

Poor low flow control

High sensitivity around small valve movements

Reduced effective operating range

Difficulty maintaining the process setpoint

Potential cycling or instability

For this reason, valve sizing should consider the normal operating point as well as minimum and maximum process conditions.

Applications of Control Valves

Control valves are used across various industries due to their ability to precisely control fluid parameters:

1. Process Industries: In chemical, petrochemical, and pharmaceutical industries, control valves regulate the flow of reactants, maintain pressure levels, and control temperatures.
2. Water Treatment: Control valves manage water flow and pressure in treatment plants, ensuring efficient filtration and distribution.
3. HVAC Systems: In heating, ventilation, and air conditioning systems, control valves regulate the flow of heating or cooling media to maintain desired temperatures.
4. Oil and Gas: Control valves are crucial in managing the flow of oil and gas in pipelines, refineries, and distribution systems.
5. Power Generation: In power plants, control valves regulate steam flow, maintain pressure levels, and control cooling water circulation.
6. Chemical and Petrochemical: These industries rely on control valves to maintain precise control over process variables, such as pressure, temperature, and flow rate, in the production and handling of chemicals and petrochemicals.
7. Pharmaceutical and Food Processing: These industries utilize control valves to precisely control process variables, ensuring product quality, safety, and consistency.
8. Pulp and Paper: Control valves are used in pulp and paper mills to regulate the flow of various fluids, such as water, steam, and chemical solutions, during the manufacturing process.

Advantages of Control Valves

The use of control valves in industrial processes offers several key advantages:

Precise Process Control:

• Control valves enable the precise regulation of process variables, such as flow rate, pressure, and temperature, allowing for tighter control and optimization of industrial processes.

Improved Efficiency:

• By accurately controlling process variables, control valves can help improve the overall efficiency of industrial systems, reducing energy consumption and waste.

Enhanced Safety:

• Control valves can be designed with fail-safe mechanisms, such as spring-return actuators, to ensure the valve moves to a predetermined position in the event of a power or signal failure, mitigating potential safety risks.

Reduced Maintenance Costs:

• Advanced control valve technologies, such as digital positioners, can provide real-time diagnostics and predictive maintenance capabilities, helping to identify and address issues before they lead to costly downtime.

Increased Flexibility:

• Control valves can be configured to handle a wide range of fluid types, flow rates, and process conditions, making them adaptable to changing process requirements.

Reduced Water and Energy Losses:

• In applications such as water distribution networks, control valves can help manage pressure and flow, reducing water and energy losses due to leaks and other inefficiencies.

Improved Process Stability:

• By maintaining tight control over process variables, control valves can help stabilize industrial processes, reducing the risk of disruptions and ensuring consistent product quality.

Challenges and Considerations in Control Valve Selection

Selecting the right control valve for a specific application requires careful consideration of various factors, including:

Factor no1: Process Conditions

• The control valve must be compatible with the physical and chemical properties of the process fluid, as well as the operating pressure, temperature, and flow rate ranges.

Factor no 2: Valve Size and Capacity

• The control valve must be sized correctly to handle the required flow rate and pressure drop, ensuring optimal performance and avoiding issues like cavitation or flashing.

Factor no 3: Valve Characteristics

• The control valve’s characteristics, such as its rangeability, inherent flow characteristics, and sensitivity, must be matched to the process requirements to ensure accurate and stable control.

Factor no 4: Actuator Selection

• The choice of actuator (pneumatic, hydraulic, or electric) depends on factors like the required force, speed of response, and fail-safe requirements.

Factor no 5: Positioner Selection

• The positioner must be compatible with the actuator and control system, and provide the necessary functionality, such as diagnostics and communication capabilities.

Factor no 6: Materials of Construction

• The control valve materials must be compatible with the process fluid to prevent corrosion, erosion, or other forms of degradation that could compromise the valve’s performance and lifespan.

Factor no 7: Regulatory and Safety Compliance

• Control valves must meet relevant industry standards and regulations, such as those related to safety, emissions, and environmental protection.

Factor no 8: Installation and Maintenance

• The control valve must be installed and maintained according to the manufacturer’s recommendations to ensure reliable and efficient operation over the long term.

Factor no 9:Environmental Conditions

• Consider the operating environment, such as temperature extremes, humidity, and potential exposure to corrosive substances?.

Careful consideration of these factors, along with close collaboration between process engineers, control system designers, and valve manufacturers, is crucial for selecting the most appropriate control valve solution for a given application.

Click here for How to Choose Right control Valve Bonnet for your Application?

What Causes Cavitation, Flashing, and Noise in a Control Valve?

Control valves can experience severe hydraulic or aerodynamic effects when large pressure drops occur across the valve.

Cavitation

Cavitation can occur in liquid service when the local pressure inside the valve falls below the liquid vapor pressure, causing vapor bubbles to form and subsequently collapse as pressure recovers.

Repeated bubble collapse can cause:

Valve trim damage

Surface erosion

Vibration

Excessive noise

Reduced valve performance

Cavitation should be considered during valve sizing and selection, particularly in high pressure drop liquid applications.

ISA provides specific guidance for evaluating control valve cavitation and the ISA 75 series addresses control valve performance, sizing, testing, noise, and related characteristics.

Flashing

Flashing occurs when liquid vaporizes because its pressure falls below the vapor pressure and remains in the vapor state downstream of the valve.

Unlike cavitation, the vapor does not necessarily collapse after the pressure recovers.

Flashing can cause severe erosion of valve trim and downstream piping.

Control Valve Noise

High velocity and pressure reduction can also produce excessive noise, particularly in gas and steam applications.

Valve selection may therefore require consideration of noise prediction, trim design, pressure drop distribution, and downstream piping conditions. ISA 75 includes standards and guidance related to control valve noise measurement and prediction.

Troubleshooting and Maintenance of Control Valve

To ensure the optimal performance and longevity of control valves, regular maintenance and troubleshooting are necessary. Common issues and their solutions include:

Cavitation:

• Occurs when the fluid pressure drops below its vapor pressure, causing bubbles to form and collapse.
• This can damage the valve trim and body. To avoid cavitation, use anti-cavitation trims or install multiple valves in series?.

Click here for How to Avoid Cavitation in Control Valve?

Leakage:

• Can occur due to worn-out packing or damaged seals. Regular inspection and replacement of worn parts are essential.

Click here for Control Valve Leakage Testing, Types, and Calculation Standards

Actuator Problems:

• Pneumatic actuators may experience issues with air supply or diaphragm wear.
• Electric actuators may face motor or electrical problems. Ensuring a clean and stable power or air supply can mitigate these issues.

Click here for Control Valve Hunting due to Valve Positioner: Troubleshooting

Calibration:

• Regular calibration of positioners and actuators ensures accurate valve positioning and control.

Click here for Calibration procedure for Control Valve

• Digital positioners can simplify this process using handheld communicators and digital protocols?.

Click here for How to do Control Valve Preventive Maintenance?

Click here for Maintenance on Struck Control Valve

Emerging Trends and Innovations in Control Valves

The control valve industry is continuously evolving, with several emerging trends and innovations that are shaping the future of this technology:

Increased Electrification

• There is a growing trend towards the use of electric actuators in control valve applications, driven by their improved accuracy, speed, and energy efficiency compared to traditional pneumatic actuators. This trend is particularly evident in industries with sensitive media, such as chemicals and petrochemicals, where the inherent safety and reliability of electric actuators are highly valued.

Advancements in Positioner Technology

• The development of digital positioners with advanced features, such as embedded PID control, real-time diagnostics, and two-way digital communication, is enhancing the performance, flexibility, and maintenance capabilities of control valve systems.

Intelligent Control Valves

• The integration of smart sensors, advanced algorithms, and connectivity capabilities is leading to the emergence of “intelligent” control valves that can self-diagnose issues, optimize their performance, and communicate with higher-level control systems. This trend is driving improvements in process efficiency, reliability, and predictive maintenance.

Miniaturization and Modularization

• There is a growing demand for smaller, more compact control valve designs that can be easily integrated into space-constrained applications, such as those found in the pharmaceutical, food processing, and HVAC industries. Modular control valve designs are also gaining traction, allowing for easier customization and faster installation.

Increased Focus on Sustainability

• As environmental concerns and regulations become more stringent, control valve manufacturers are placing greater emphasis on developing solutions that minimize energy consumption, reduce emissions, and support the transition to more sustainable industrial processes. This includes innovations in materials, valve designs, and control algorithms.

Advancements in Valve Diagnostics and Predictive Maintenance

• The integration of advanced sensors, data analytics, and machine learning algorithms is enabling control valve systems to provide more comprehensive diagnostics and predictive maintenance capabilities. This helps to reduce unplanned downtime, optimize maintenance schedules, and extend the lifespan of control valve assets.

Remote Operation

• Enhanced capabilities for remote monitoring and control, allowing operators/engineers/technicians to manage valve performance from a central location or even via mobile devices?

Click here for Codes and Standards for Control Valve Selection in Industrial Applications

Standards and Regulations for Control Valves

Control valves are subject to various standards and regulations that ensure their safe and efficient operation in industrial processes. Here are some key standards and regulations:

• API 6D: The American Petroleum Institute (API) Standard 6D specifies the requirements for the design, manufacturing, and testing of control valves used in the oil and gas industry.
• API 6A: The API Standard 6A covers the requirements for the design, manufacturing, and testing of control valves used in the oil and gas industry, focusing on the valve body and bonnet.
• ASME B16.34: The American Society of Mechanical Engineers (ASME) Standard B16.34 outlines the requirements for the design, manufacturing, and testing of control valves used in the process industries.
• ASME B16.5: The ASME Standard B16.5 covers the requirements for the design, manufacturing, and testing of control valves used in the process industries, focusing on the valve body and bonnet.
• ISO 5211: The International Organization for Standardization (ISO) Standard 5211 specifies the requirements for the design, manufacturing, and testing of control valves used in the process industries.
• ISO 5212: The ISO Standard 5212 covers the requirements for the design, manufacturing, and testing of control valves used in the process industries, focusing on the valve body and bonnet.
• NFPA 69: The National Fire Protection Association (NFPA) Standard 69 outlines the requirements for the design, manufacturing, and testing of control valves used in the process industries, focusing on fire safety.
• OSHA: The Occupational Safety and Health Administration (OSHA) regulates the use of control valves in the workplace, ensuring compliance with safety standards and regulations.
• CE Marking: The CE marking is a mandatory requirement for control valves sold in the European Union, ensuring compliance with EU safety and health regulations.
• UL Certification: The Underwriters Laboratories (UL) certification is a voluntary requirement for control valves, ensuring compliance with safety and performance standards.
• FM Approval: The Factory Mutual (FM) approval is a voluntary requirement for control valves, ensuring compliance with safety and performance standards in the process industries.
• API 607: The API Standard 607 specifies the requirements for the design, manufacturing, and testing of control valves used in the oil and gas industry, focusing on fire safety.
• API 6FA: The API Standard 6FA covers the requirements for the design, manufacturing, and testing of control valves used in the oil and gas industry, focusing on the valve body and bonnet.
• ASME B16.42: The ASME Standard B16.42 outlines the requirements for the design, manufacturing, and testing of control valves used in the process industries, focusing on the valve body and bonnet.
• ISO 10497: The ISO Standard 10497 specifies the requirements for the design, manufacturing, and testing of control valves used in the process industries, focusing on the valve body and bonnet.

What Is the Difference Between a Control Valve and an On Off Valve?

A control valve and an on off valve serve different control purposes.

Feature	Control Valve	On Off Valve
Primary purpose	Modulates process conditions	Isolates or permits flow
Normal operation	Continuously changes position	Normally fully open or fully closed
Control signal	Variable control signal	Switching command
Position	Can operate at intermediate positions	Normally open or closed
Typical application	Flow, pressure, level, temperature control	Isolation and shutdown
Positioner	Commonly used for modulating applications	Not normally required
Control loop	Commonly part of a feedback loop	Usually not used for continuous feedback control

A control valve is selected when the process requires continuous modulation. An on off valve is generally selected when the process requires a discrete open or closed function.

The two should not be treated as interchangeable simply because both can be operated automatically.

Frequently Asked Questions About Control Valves

What is the main purpose of a control valve?

The main purpose of a control valve is to regulate a process variable by changing the flow of a fluid through the process system. It acts as the final control element in many automatic control loops.

How does a control valve work with a PID controller?

The PID controller compares the measured process variable with the setpoint and generates an output command. The control valve responds to this command by changing its position, which changes the process flow and helps bring the process variable toward the setpoint.

Why is a positioner used on a control valve?

A positioner helps the valve achieve the commanded position accurately by comparing the desired position with actual valve travel and adjusting actuator output when necessary.

What is Cv in a control valve?

Cv is a measure of control valve flow capacity under defined reference conditions. It is used during control valve sizing to determine whether a valve can provide the required flow under specified process conditions.

What is valve rangeability?

Rangeability describes the usable ratio between the maximum controllable flow and minimum controllable flow of a control valve under specified conditions. It is an important consideration when a process operates across a wide flow range.

Why does a control valve hunt?

Valve hunting can occur when the valve continuously moves around a desired position instead of settling. Possible causes include incorrect controller tuning, excessive valve gain, positioner problems, mechanical friction, deadband, unstable process conditions, or inappropriate valve sizing.

What causes control valve stiction?

Stiction is commonly associated with static friction in the valve or actuator assembly. It can cause the valve to remain stationary until sufficient force builds up and then move suddenly, resulting in poor process control and cycling.

What causes control valve vibration?

Control valve vibration can result from unstable flow conditions, excessive velocity, cavitation, flashing, aerodynamic effects, mechanical problems, poor support, or inappropriate valve selection.

Why is control valve sizing important?

Correct sizing ensures that the valve has sufficient capacity while maintaining controllability over the required operating range. An incorrectly sized valve can cause poor control, excessive pressure loss, instability, noise, or reduced operating life.

What are the common control valve failure modes?

Common problems include valve sticking, actuator failure, positioner malfunction, air supply problems, trim erosion, seat leakage, cavitation damage, flashing, excessive friction, incorrect calibration, and mechanical wear.

Click here for Control Valves in Process Industries: A Collection of In-Depth Articles
