CC-Link Industrial Network Protocol: Architecture, Variants, and Applications

In the complicated world of industrial automation today, predictable, dependable, and quick communication protocols are crucial for maintaining safety, efficiency, and synchronization between control systems and machinery. Although prevalent throughout sectors, prominent protocols including Ethernet/IP, Modbus TCP, and PROFINET have a limited specialty in automation systems, especially those based on Mitsubishi Electric products. Another strong and high-performance protocol is Control & Communication Link.

Although it’s not typically the first name that comes to mind when designing a modern industrial network, CC-Link is a powerful and expanding choice particularly in Asia-Pacific manufacturing contexts. This complete guide will clarify what CC-Link is, where it is used, how it works, the variations between its variants, and how to apply it practically in your control architecture.

What is CC-Link?

An industrial automation network protocol called CC-Link (Control & Communication Link) allows distant I/O modules, drives, HMIs, controllers (such as PLCs), and other field devices all communicate seamlessly. Originally created by Mitsubishi Electric in the late 1990s, it is currently run by the worldwide group of more than 300 automation suppliers known as the CC-Link Partner Association (CLPA).

CC-Link is especially well-known for:

• High-speed deterministic communication
• Close connection to Mitsubishi PLCs and drives
• Scalable implementation over controllers and devices
• Variants enabling both Ethernet physical layers and RS-485

Whether your project calls for a factory-wide distributed control system or a small modular machine’s automation network, CC-Link provides a suite of solutions catered for dependability, economy, and performance.

Origins and Development Timeline – CC-Link Protocol

Knowing how CC-Link developed helps one better appreciate its strength and adaptability to modern automated systems.

• Mitsubishi Electric develops the first CC-Link specification to link PLCs and I/O devices over RS-485 serial communication in 1996–1999.
• 2000: Mitsubishi creates the CLPA, endorsing CC-Link as a freely available, standard industrial protocol.
• 2007: Support of 1 Gbps Ethernet-based deterministic networks by CC-Link IE (Industrial Ethernet).
• 2016–2020: CLPA releases CSP+ device profiles for simple configuration and diagnostics as well as CC-Link IE Field Basic for standard Ethernet ports.


International standards such IEC 61158 and ISO 15745 now acknowledge CC-Link, therefore confirming its position in worldwide automation applications.

Explore Industrial Connectivity Protocols: Connecting the Industrial World: An Exploration of Communication Protocols in Automation and Instrumentation

Applications of CC-Link in Industrial Automation

Mitsubishi-dominated automation systems or areas like Japan, China, and Southeast Asia where Mitsubishi controllers are numerous usually feature CC-Link. From sensors to enterprise systems, the protocol is meant to operate at multiple levels of the automation structure.

Common Industries Using CC-Link

Industry Sector	Typical Use Cases
Automotive Manufacturing	Robotic arms, conveyor control, safety I/O, PLC-to-PLC sync
Electronics/Semiconductors	Wafer handling, cleanroom automation, high-speed device networking
Food & Beverage	Packaging lines, motion control, CIP systems
CNC & Machine Tools	Servo drive integration, compact motion controllers, HMI networks

CC-Link is flexible for several automation philosophies since it fits centralized and distributed control structures.

Refer the Overview of variety of Industrial communication protocols

Industrial communication protocols

What are the different types of CC-Link?

CC-Link Variants and Architecture

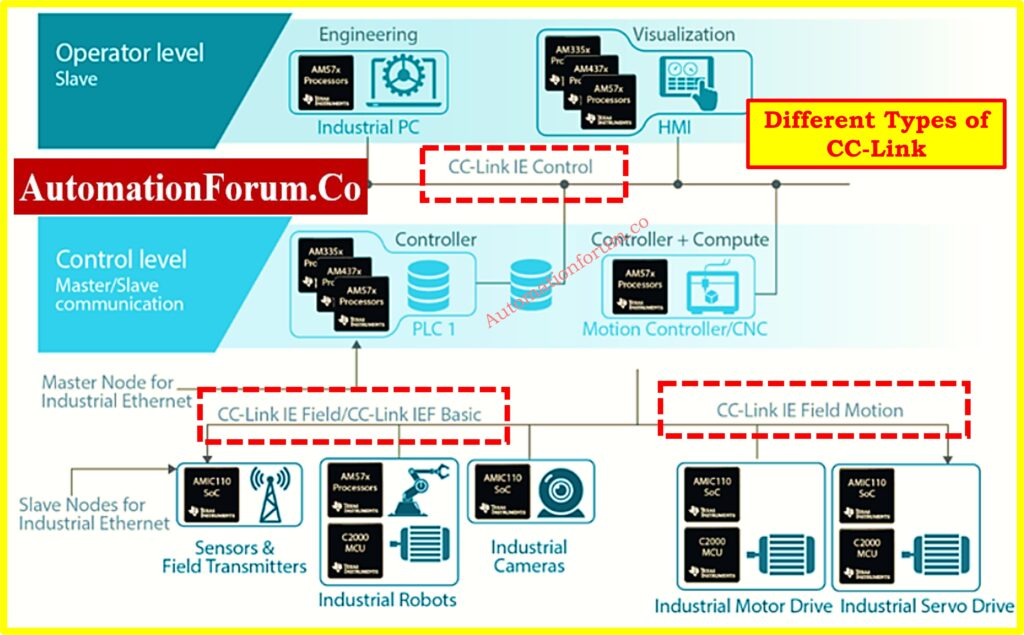

CC-Link is a family of protocols served for various performance levels and applications rather than a single one.

Usually using a master-slave topology or controller-device model the design consists in a master station (usually an intelligent gateway) controlling all network communication cycles.

Each of the five main variations of CC-Link is tailored for particular topologies, media, and speed criteria.

Understand FF Communication Protocol Basics: Foundation Fieldbus Protocol Basics

Technical Comparison of CC-Link Variants

Feature	CC-Link (Classic)	CC-Link IE Field	CC-Link IE Control	CC-Link IE Field Basic	CC-Link/LT
Medium	RS-485 (twisted pair)	Ethernet (Cat5e/Cat6)	Ethernet (Cat5e/Cat6)	Standard Ethernet	3-wire dedicated cable
Topology	Daisy-chain	Line, Star, Ring	Star or Ring	Star or Line	Daisy-chain
Max Speed	10 Mbps	1 Gbps	1 Gbps	100 Mbps	156 Kbps
Device Capacity	64 stations	120 stations	120 stations	64 stations	64 stations
Deterministic Timing	Yes	Yes	Yes	Limited (depends on load)	Yes
Real-time Synchronization	Moderate	High	Very High	Moderate	Low
Ideal Use	Compact, high-speed machines	Large field I/O networks	PLC-to-PLC fast networks	Low-cost Ethernet integration	Small-scale automation
Software Config Tools	GX Works2	GX Works3 + CLPA Tools	GX Works3 + CSP+	GX Works3 + CSP+	GX Works2 or Basic Config

From modest isolated devices to synchronized multi-PLC automation lines, CC-Link’s broad spectrum of choices makes it flexible for projects of all kinds.

OT Protocols and Cybersecurity: Protocols and Standards in Industrial Automation: A Guide to OT Cybersecurity

Implementing a CC-Link Network

Using CC-Link on a plant or machine requires careful topological, station layout, and hardware choice planning. The main actions steps are these:

Step 1. Select the CC-Link Variant

Select depending on the speed, device count, pricing, cabling needs of the application.Usually, this is a Mitsubishi PLC with a CC-Link master module that is, Q-Series, iQ-R.

Gateways like HMS 5209-DFNT-CCLINK let Allen-Bradley or Modbus-based systems interface with non-Mitsubishi controllers.

Step 2. Install a Master Station

• In most cases, this is a Mitsubishi PLC with a CC-Link master module (e.g., Q-Series, iQ-R).
• For non-Mitsubishi controllers, gateways like HMS 5209-DFNT-CCLINK allow Allen-Bradley or Modbus-based systems to talk to CC-Link.

Step 3. Connect Slave Devices

Devices include:

• I/O modules
• HMIs and drives
• Sensors and actuators
• Remote terminal units (RTUs)

Step 4. Network Wiring and Termination

• Classic CC-Link calls for shielded twisted-pair wires arranged in a daisy-chain pattern.
• Placed at both ends of the network, termination resistors
• Standard Ethernet wiring (Cat5e/Cat6) and topologies either star, ring, or line are used by CC-Link IE.

Step 5. Address Configuration

• Usually, DIP switches or programming sets station numbers.
• The master should be familiar with every slave station found in its configuration table.

Step 6. Software Configuration and Diagnostics

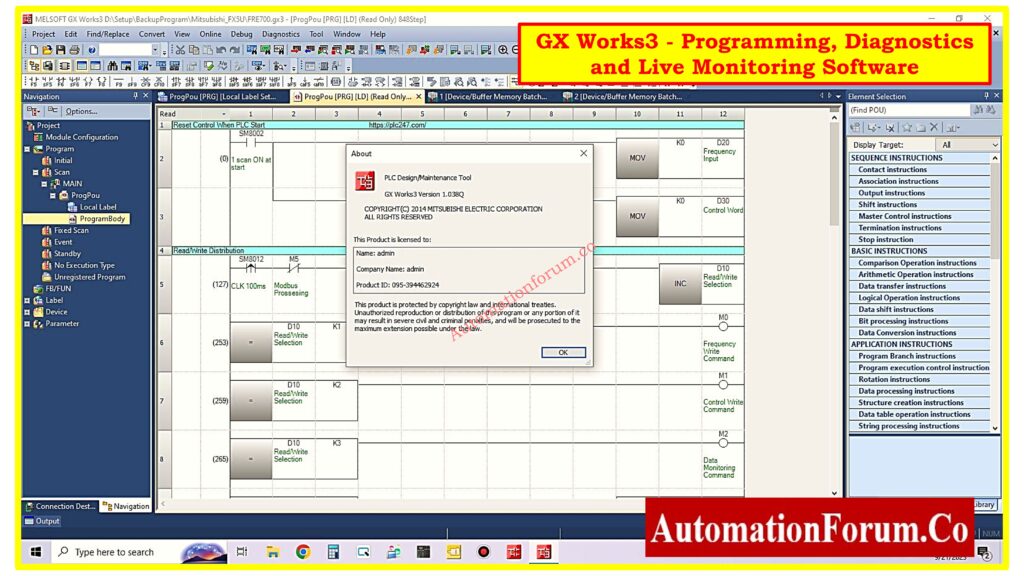

• Programming, diagnostics, and live monitoring call for GX Works 2 or GX Works 3.
• Like GSD/EDS files, CSP+ files streamline adding third-party devices with preset settings.

Understand Modbus Communication Basics: Modbus Communication Protocol

Interfacing CC-Link with Other Protocols

Many times, several industrial protocols coexist in actual facilities. Gateways or protocols converters let CC-Link be included into more general systems.

Popular Gateway used for Interfacing CC-Link with Other Protocols Cases:

Interfacing Protocols	Gateway Product Examples
Between Ethernet/IP and CC-Link	HMS Anybus X-Gateway, ProSoft gateways
Between Modbus TCP and CC-Link	Moxa MGate, HMS Netbiter
Between PROFINET and CC-Link IE	HMS CompactCom modules, Anybus multi-protocol

These devices provide flawless data flow between several vendor environments without modifying present PLC logic.

Advantages of using CC-Link

Tight Integration with Mitsubishi Platforms

• CC-Link is developed by Mitsubishi Electric, ensuring seamless compatibility with their PLCs, HMIs, drives, and I/O systems. Engineering tools like GX Works2/3 directly support CC-Link configuration, diagnostics, and monitoring, making system design and commissioning straightforward. Since most Mitsubishi devices come with native CC-Link support, adding or expanding systems is often plug-and-play, minimizing integration effort.
• This tight integration also benefits motion and control applications. Mitsubishi servo drives, for instance, communicate effortlessly over CC-Link IE Field, supporting real-time data exchange and parameter tuning. For OEMs and machine builders working in Mitsubishi environments, CC-Link provides a vendor-optimized communication backbone that reduces engineering time and increases reliability.

Deterministic Communication for Motion and Safety

• The deterministic communication of CC-Link protocols particularly CC-Link IE means that data is transmitted at consistent intervals. For motion control where timing accuracy influences the whole process this is absolutely essential. By means of token-passing or planned communication technologies, CC-Link guarantees fixed scan times unlike conventional Ethernet protocols that can suffer variable delays.
• CC-Link IE enables real-time control across several devices using consistent timing and communication speeds up to 1 Gbps. In robotic systems, CNCs, and coordinated motion platforms especially, it’s quite important. By guaranteeing prompt response from sensors and safety relays, therefore fulfilling criteria for important processes, deterministic behavior further improves safety functions.


HART Device Setup Guide: Get Started with Fieldbus: Step-by-Step Guide for Installing and Commissioning HART and WirelessHART Devices for Engineers and Technicians

Potential Problems with using CC-Link

Limited Usage Outside Asia-Pacific

• Although CC-Link is somewhat common in Japan and most of Asia, it is not adopted very widely in Europe, North America, or other world markets. Engineers from outside these areas might not know its layout, tools, or device profiles. Using CC-Link might cause a learning curve and integration difficulties in worldwide projects including teams familiar with PROFINET, Modbus TCP, or Ethernet/IP.
• Many times depending on Mitsubishi-specific support channels, multinational companies or suppliers call for further training. Should standardizing several sites top importance, this limited worldwide reach should be taken into account during protocol choice.

Gateway Requirements and SCADA Compatibility

• CC-Link does not usually interface readily with products from other companies. Usually bridging CC-Link with protocols like EtherNet/IP or Modbus calls for a gateway device such those provided by HMS Anybus, Moxa, or ProSoft. This raises expenses and offers still another point of possible failure.
• Furthermore not usually supported directly by most SCADA systems is CC-Link. Custom drivers or OPC servers could still be required even if CSP+ files help to ease device configuration. This makes SCADA integration less simple than those of systems with broader worldwide acceptance.

CC-Link is not only helpful but also necessary whether you are integrating discrete machine tools with deterministic I/O time, supporting East Asian manufacturing lines, or working with Mitsubishi-based systems.

Offering the performance of gigabit Ethernet with the real-time dependability needed by industrial applications, the new CC-Link IE and IE Field Basic variations are a direct reaction to Ethernet/IP. Furthermore, as Industry 4.0 and digital transformation shape automation methods, learning CC-Link will have a major career and project benefit.

Refer the below link for the ICS/SCADA OT Cybersecurity Self-Assessment: NIST-Based Procedure for Critical Infrastructure

ICS/SCADA OT Cybersecurity Self-Assessment: NIST-Based Procedure for Critical Infrastructure

Frequently Asked Questions (FAQ) about CC-Link
What are cc links?

In industrial automation,.cc links sometimes refer to CC-Link (Control & Communication Link), a high-speed, deterministic fieldbus protocol first developed by Mitsubishi Electric. It offers dependable integration of many kinds of automation devices like PLCs, HMIs, sensors, and drives and helps clear communication bottlenecks. It has nothing to do with internet domain names ending in “.cc,” like country code domains.

What is CC in networking?

In general, CC is Common Criteria, an internationally accepted ISO/IEC 15408 standard for assessing the security of information technology products. Often employed in government or high-security contexts, it offers a disciplined framework to confirm whether a system satisfies predefined security assurance criteria.

What is CC-Link cable?

In CC-Link networks, a CC-Link cable is a media of communication. Usually following RS-485 standards, classic CC-Link is a shielded twisted-pair connection. It offers daisy-chain topologies with dependable data transfer across distances up to 1.2km, or 13.2km with repeaters. Standard Cat5e or Cat6 Ethernet cables provide gigabit-level communication rates for CC-Link IE (Ethernet-based) networks.

What is the CC-Link protocol?

Industrial automation makes advantage of the open field, fast CC-Link communication system. It lets field equipment and controllers exchange dependable, real-time data. Originally owned by Mitsubishi, it is now under management by the CC-Link Partner Association (CLPA) and extensively sponsored by several other suppliers.

CC-Link combines multiple kinds of networks:

• CC-Link (Classic): RS-485 based, for simple, robust device networks.
• CC-Link IE Field: Ethernet-based with high-speed and deterministic communication.
• CC-Link IE Field Basic: Software-based, general-purpose Ethernet option with simpler integration.
• CC-Link/LT: A lightweight version for smaller machines and cost-sensitive applications.

What is the difference between CC link and Ethernet?

Designed for automation, CC-Link IE Field is a real-time industrial Ethernet system. Essential for synchronized control of motion, I/O, and safety devices, it provides deterministic communication.

Less suited for time-sensitive industrial applications, conventional Ethernet used in LANs or Wi-Fi is a general-purpose communication protocol with non-deterministic behavior. Predictable, low-latency connection guaranteed by CC-Link IE Field guarantees dependability of machine operation.

What is the maximum distance for CC-Link?

CC-Link (Classic): With normal RS-485 cabling, up to 1.2 km; with repeaters, up to 13.2km.

CC-Link IE Field: Distance relies on Ethernet cabling guidelines, usually 100 meters per segment using Cat5e/Cat6 cables, extendable via switches or fiber converters.

Protect PLCs from Threats: How to Safeguard PLCs Against Cyber Attacks in Industrial Networks ?

What is the difference between CC-Link IE field and CC-Link IE field basic?

Feature	CC-Link IE Field	CC-Link IE Field Basic
Communication Speed	Up to 1 Gbps	100 Mbps (software-based)
Real-time Capability	Fully deterministic	Limited real-time performance
Hardware Requirement	Requires dedicated ASIC/FPGA	Runs on general Ethernet NICs
Device Integration	High-performance, advanced	Easy, cost-effective
Use Case	Precision control, motion, safety	Basic field I/O and sensors

Connection through CC-Link While IE Field Basic provides simpler connection with common Ethernet devices at less cost and complexity, IE Field is perfect for demanding applications needing real-time synchronizing.

What is CC-Link IE?

Link CC-Link Under the CC-Link framework, IE Industrial Ethernet is a family of Ethernet-based networks. It enables both cyclic (synchronous) and acyclic (on-demand) messaging together with high-speed (1 Gbps) communication. It is meant to manage several control kinds, including:

• I/O control
• Motion control
• Safety control
• Inter-controller communication

This qualifies it for everything from enterprise-wide manufacturing networks to machine-level control.
