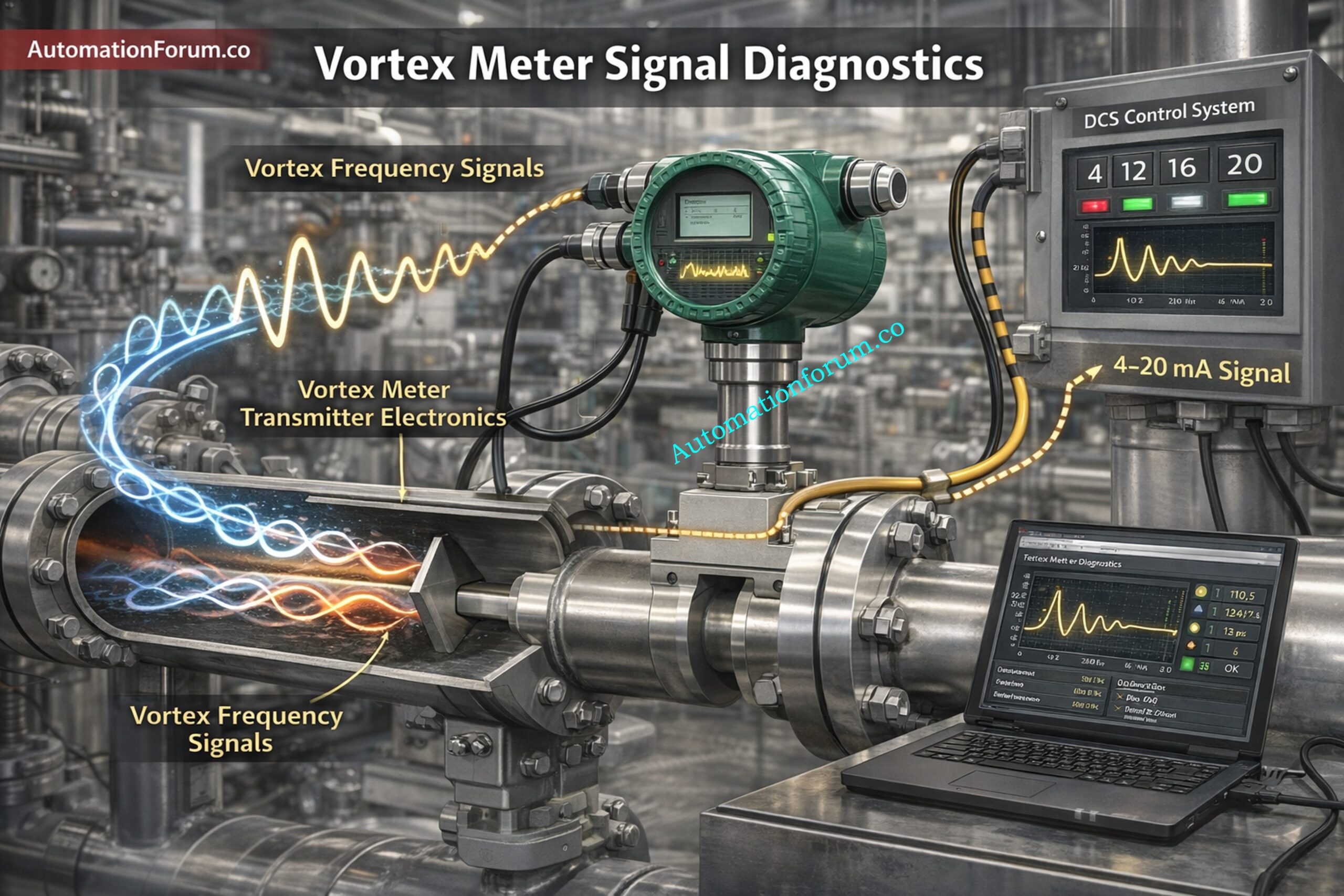

Vortex Flow Meter Troubleshooting – Transmitter Diagnostic Quiz for Engineers

Explanation: Nuisance alarms during startups are best handled by implementing time delays, hysteresis, or transient suppression logic and by inhibiting certain alarms during startup windows. Ensure safety-critical interlocks remain active while suppressing nuisance messages. Test the logic with simulated startups and document the new alarm behavior. This maintains safety while reducing operator distractions.

Explanation: Restoring the site-specific configuration removes scaling and unit mismatches that can cause incorrect readings or safety issues. Use saved templates or HART backups to reload ranges, linearization, and alarm settings. Perform zero/span checks and loop verification before returning to service. If no backup exists, carefully reconfigure and document final settings.

Explanation: If the device produces a stable frequency but the DCS PV is noisy, investigate DCS sampling rates, filtering, and input card noise. Measure current at the DCS terminal with a scope to compare against transmitter output. Adjust filtering or correct wiring issues rather than swapping the transmitter. Ensure anti-aliasing and smoothing settings match application needs.

Explanation: Corrosion undermines mechanical integrity and electrical isolation, causing erratic signals and safety risks. Replace components with appropriate corrosion-resistant alloys or lined materials and confirm seals and glands meet the process chemistry. Revalidate calibration and grounding after replacement. Update procurement specs to prevent recurrence.

Explanation: Fouling changes the bluff-body shape and reduces vortex strength, so scheduled cleaning, pigging, or using anti-fouling designs is necessary. Inspect after cleaning to confirm amplitude restoration and consider process-side mitigations or material/coating upgrades. If deposits persist, consider relocating or changing the measurement technology. Document cleaning intervals and results.

Explanation: Remote configuration depends on the communication path; failure to accept remote zero indicates software/DCS permissions, address, or HART multiplexing issues. Check HART master settings, device address, and whether another master holds the line. Use a handheld HART tool to validate remote command acceptance directly at the device. Resolve any software or master conflicts before further commissioning.

Explanation: Faulty compensation often stems from incorrect pressure/temperature sensor calibration or unit mismatches driving wrong density inputs. Verify units, ranges, and calibration certificates for sensors feeding compensation. Reconfigure units and re-calibrate external sensors, then test compensation across pressure steps. Document corrected sensor configuration.

Explanation: Audible ticking and excessive heat point to internal power supply or component stress and increased failure risk. Isolate power, measure voltages and internal temperatures, and compare to vendor thermal specifications. Replace failing power module or add heat-sinking/ventilation as required. Address promptly to avoid sudden equipment failure.

Explanation: Vortex meters require a minimum Reynolds number for stable shedding; if the process often drops below this, shedding ceases and low-flow cutoff occurs. Calculate the system Reynolds number and compare to manufacturer lower limits. If below limits, consider a different meter type or apply flow conditioning. Do not mask the issue by adjusting span alone.

Explanation: If local frequency is correct but DCS shows different values, verify transmitter-to-DCS scaling, frequency-to-engineering conversion, and K-factor settings. Confirm output mode (frequency/pulse vs 4-20 mA) and compare values at the DCS input terminal. Update DCS mapping to match transmitter scaling. Document corrected settings and retest.

Explanation: Strong harmonics indicate waveform distortion from flawed shedder geometry, upstream asymmetry, or deposits. Inspect the shedder for erosion or deformation and correct mounting alignment. Replace or repair the bluff-body if mechanically compromised, then re-run spectral analysis. Properly addressing the mechanical root cause removes harmonic content.

Explanation: Sudden saturation commonly results from electrical transients – lightning strikes or switching surges – rather than mechanical failure. Inspect surge protection, grounding, and check plant event logs for high-energy events. Capture transient signatures with an oscilloscope if possible and replace failed surge arresters. Validate transmitter operation after restoring protection.

Explanation: Span-only drift suggests gain errors in the transmitter electronics, possibly temperature- or age-related amplifier drift. Perform temperature cycling and monitor span behavior; check supply stability and ripple. If electronics show dependence, replace or upgrade to temperature-compensated modules. Record drift rates for proactive replacement planning.

Explanation: Mounting too close to valves or bends distorts flow profile and biases readings; verify against vendor straight-run requirements. Add flow conditioning or relocate the meter to meet installation specs, then re-run in-situ calibration. Document final placement and the corrective action taken. Avoid assuming electronics fault without checking installation first.

Explanation: Twisted-pair shielded cable with the shield grounded at the instrument end reduces induced noise and ground loops. Avoid parallel runs with power cabling and add ferrites or surge suppressors near the transmitter. Verify improvements with oscilloscope tests during disturbance conditions. If noise persists, consider a current isolator.

Explanation: Vortex meters require single-phase flow; two-phase conditions give unreliable shedding readings. Install separators, steam traps, or relocate measurement to a section with stable single-phase steam. Only consider changing meter technology if two-phase cannot be eliminated. Do not rely on tuning transmitter parameters to correct two-phase errors.

Explanation: Changes in pressure affect fluid density and acoustic propagation, shifting measured vortex frequency and causing zero drift. Perform pressure-dependent zero checks and, if necessary, apply pressure compensation or enable density input. Recalibrate zero/span at representative pressure conditions. Update maintenance procedures for pressure-variable processes.

Explanation: Firmware that improves stability but removes diagnostics requires vendor engagement to request a version with both stability and diagnostics. Keep a backup of previous firmware and document observed behaviors. Test any new firmware in a controlled environment before fleet deployment. If diagnostics are critical, plan a controlled upgrade path with the vendor.

Explanation: If the current at transmitter is correct but DCS displays offset, check DCS input card type, scaling, and linearization. Measure current at DCS terminal while toggling transmitter output to verify. Correct scaling or card configuration and rerun the loop-check. If DCS config is correct, then revisit transmitter scaling settings.

Explanation: Mechanical vibration can introduce frequencies close to vortex shedding harmonics, confusing DSP detection. Capture raw signal spectra to distinguish vibration from true shedding. Add vibration isolation, damping, or adjust mounting orientation and enable vendor-supplied notch filters if available. Record vibration spectra during upset events for offline analysis.

Explanation: A common issue is mismatched configuration – the analog output and HART PV may be scaled to different variables or linearizations. Verify primary variable, engineering units, range, and linearization in the transmitter. Reconcile transmitter analog scaling with DCS/HART displays and re-run a loop-check. Update configuration and confirm with test signals.

Explanation: Upstream swirl distorts the flow profile and vortex shedding, causing false or unstable counts. Measure flow profile or swirl with a pitot or profile probe and add a flow conditioner or required straight pipe. If relocation is necessary, follow vendor straight-run guidelines. Field-tip: always check for swirl before replacing electronics.

Explanation: HART digital packets can be corrupted if the transmitter’s HART modem or connections fail while the analog current stays valid. Verify HART wiring and test with a handheld communicator at the device head. Check loop impedance and grounding to meet HART specifications. Replace or reprogram the modem if diagnostics show modem faults.

Explanation: Temperature-induced offsets in sensing electronics or mounting create zero drift after thermal cycles. Compare cold-to-operating temperature zero values and enable temperature compensation if supported. Re-calibrate zero at representative operating temperature or fit a temperature-stable mounting. If drift persists, record temperature coefficient and consult vendor for hardware/electronics options.

Explanation: Electromagnetic interference from motor starts typically couples into analog loops or grounding systems. Start by checking grounding continuity and cable routing, separating signal and power runs. Use an oscilloscope or clamp meter to observe common-mode noise and add ferrite cores or surge suppression. If needed, fit a grounded isolator or re-route wiring away from motor drives.
