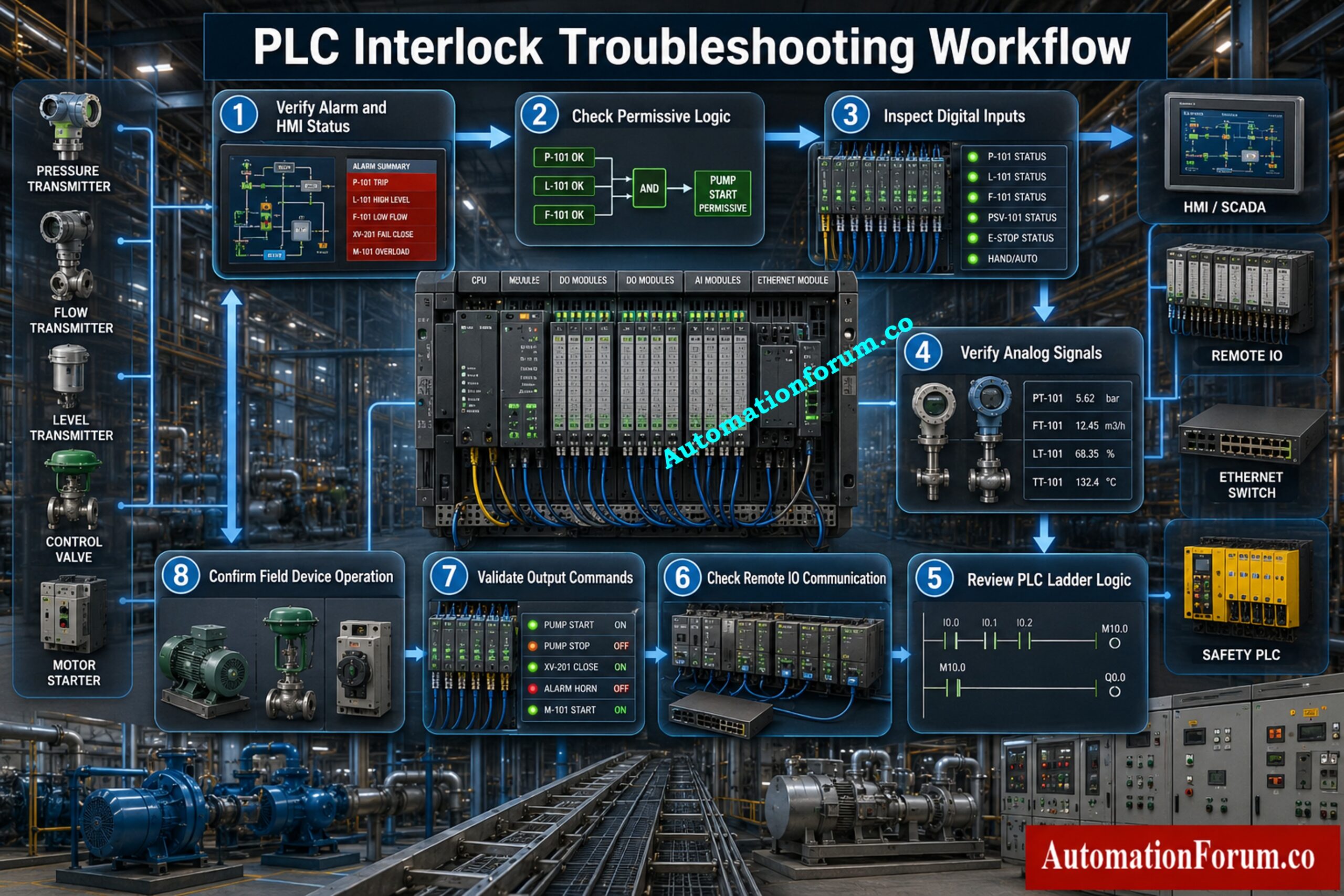

Advanced PLC Interlock Troubleshooting Quiz for Process Industries | 25 Practical PLC Diagnostics Questions for Instrumentation and Automation Engineers

Explanation

Replacing an IO module can introduce addressing or channel mapping errors. Incorrect signal assignment often causes repeatable sequence failures. Always verify the IO list, electrical drawings, and PLC tag mapping before modifying logic or bypassing interlocks.

Explanation

Online logic tracing identifies the exact instruction preventing the permissive from becoming TRUE. Avoid forcing outputs or bypassing logic until the actual cause is confirmed.

Explanation

A wiring error affecting the common return can force multiple inputs into the same state simultaneously. Inspect panel wiring against electrical drawings before replacing IO modules.

Explanation

The PLC has successfully issued the shutdown command. If the valve does not move, the problem is usually pneumatic or mechanical. Confirm instrument air pressure before investigating control logic.

Explanation

Maintenance activities often introduce wiring errors. Incorrect polarity, loose terminals, or open circuits can force analog inputs into over range or fault conditions. Verify loop wiring before replacing hardware.

Explanation

High resolution Sequence of Events records capture very short duration signals that ordinary HMI trends may miss. These records help identify intermittent faults and nuisance trips.

Explanation

Logic modifications must match the approved Cause and Effect Matrix and control philosophy. Program changes are a common source of unexpected trips during commissioning and maintenance.

Explanation

Safety PLCs execute independent safety logic. A bypass left active, proof test configuration, or safety override can affect trip logic even when process values appear normal. Review the safety application before replacing instruments.

Explanation

A one shot instruction activates only on a FALSE to TRUE transition. If the start command remains continuously TRUE, the output coil never receives a trigger. Verify sequence execution and online logic status.

Explanation

Online logic monitoring reveals exactly where execution stops within the program. This method identifies missing permissives, timer conditions, interlocks, or programming errors without unnecessary hardware replacement.

Explanation

Two out of three voting improves reliability by tolerating a single failed transmitter while maintaining protection. Maintenance should replace the faulty transmitter promptly without compromising process safety.

Explanation

Since the PLC output is energized, the fault exists downstream of the output module. Broken wiring, loose terminals, or failed interposing relays are common causes.

Explanation

A transient input or logic condition lasting only one PLC scan can trigger a latched shutdown. Online monitoring and cross reference analysis help identify short duration events that operators may never observe on the HMI.

Explanation

Loss of communication prevents the PLC from validating field conditions. Restoring communication maintains process safety and avoids unnecessary bypasses that could expose equipment to unsafe operation.

Explanation

A smooth CPU switchover indicates healthy redundancy. Persistent incorrect alarms usually point to synchronization, configuration, or alarm database inconsistencies rather than field device failures.

Explanation

A 12 mA signal represents approximately 50 percent of span. If the PLC still displays zero, the issue is likely incorrect scaling, channel configuration, or analog card setup rather than a field instrument failure.

Explanation

The motor is electrically healthy, but the PLC never receives the required ready signal. Incorrect wiring or wrong IO mapping commonly causes this condition after maintenance. Verify wiring, IO allocation, and PLC diagnostics before modifying the PLC program.

Explanation

Internal memory bits often retain shutdown status until specific reset conditions are satisfied. Reviewing latch, unlatch, and reset logic is more effective than replacing hardware when all field signals are healthy.

Explanation

Since both the transmitter and PLC measure 12 mA correctly, the hardware is functioning. The remaining issue is incorrect engineering unit conversion or scaling within the PLC configuration.

Explanation

Many PLC applications treat communication loss as an unsafe condition. Even a short timeout can invalidate critical inputs and activate shutdown logic according to the approved Cause and Effect philosophy.

Explanation

The valve has physically reached the required position, but the PLC interprets the feedback incorrectly. Signal inversion, incorrect contact selection, or PLC input configuration should be verified before replacing the switch.

Explanation

The timer indicates the PLC never receives confirmation that the motor is running. Incorrect auxiliary contacts, wiring faults, or wrong IO assignments are more likely than mechanical or process problems.

Explanation

A latched trip remains active even if the initiating signal lasts only one scan. Reviewing online logic, event history, and reset conditions helps identify short duration faults.

Explanation

The field device operates correctly, but the PLC never detects the signal. Incorrect termination, wiring changes, or IO mapping errors commonly occur after maintenance or commissioning activities.

Explanation

An active force overrides normal logic execution and prevents the output from responding as programmed. Always check force tables, override status, and maintenance flags before modifying logic or replacing hardware.
