What is a proximity switch and what is it used for? How do proximity switches work

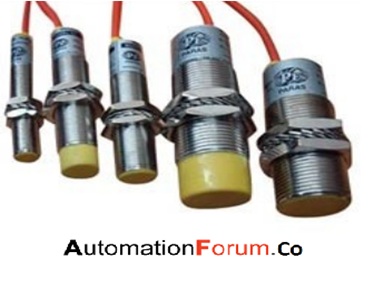

What is the proximity switch?

A proximity switch is a sensor that detects the presence or absence of an object without contact. Common types include inductive (for metal objects), capacitive (for various materials), and ultrasonic (using sound waves). It’s widely used in automation.

A proximity switch is used to determine how close an object is, or the proximity of an object. The proximity of an object is determined by using certain means such as magnetic, electric, or optical. So these switches can be used to check the presence of an object. These switches are widely useful for many security processes. These switches can be used to check the motor rotation speed. Proximity switches can detect the approach of a metallic device part with the help of a magnetic or electromagnetic field. Normal proximity switches use a permanent magnet so it can create a sealed switch mechanism if an object’s mechanical part come close to it. There are certain types of proximity sensors that can act as a metallic detector and this type can be considered as the complex proximity switches. The complex proximity switches operate by energizing a coil of wire by using electric current, the magnitude of the current is monitored electronically. The monitoring section would trip if a metallic part gets close to the coil.

How capacitive proximity switches are different from inductive switches

The sensing material is different in both of these switches and the inductive switches can only be used to detect the metallic objects or the objects that have a metallic part in it while the capacitive switches can be used to check certain materials such as wood. Paper, cardboard…

Why do we need proximity switches

Proximity switches are used in many industrial applications, in many industrial processes certain physical quantities must be monitored, and in order to do that switches are used. So proximity switches are used these switches are used to sound the alarms, so while an alarm is sounded means some of the physical quantity is not at its normal level. These proximity switches are also used to shut down equipment if any of its variables have reached dangerous levels. Proximity switches are also used in automation and security-related applications.

What are the types of proximity switches and how does it work

1. Inductive proximity switch
2. Ultrasonic proximity switch
3. Optical proximity switch
4. Capacitive proximity switch

1.Inductive proximity switches

Inductive proximity switches can detect the presence of a metallic object without any contact with the object. The switching speed of inductive proximity switches is very high and that’s a reason why it is widely used in the automation field. This type of proximity switches has a coil driven by an oscillator. An electromagnetic field is created by the oscillator that would reach the active section of the switch. So if the metal part comes close to this part, then the electromagnetic field is reduced and the switch would turn on or off. By using inductive proximity sensors we can determine the metallic object, position of the metallic part in a machine, it can also detect small metallic parts such as screws and rotation speed of the device that can be checked if the rotational part is metal. It only detects conductive material and operating distance up to 50mm. it also has high noise immunity

2.Ultrasonic proximity switches

Ultrasonic proximity switches are used in the automation field and these also contact-free sensors. These sensors are used for distance measurement, not only these devices can detect object but it can also measure the distance from the object to the device. This device is used whenever we need to measure distances through the air. This type of proximity switch is very reliable. The ultrasonic proximity switches transmit ultrasonic pulses. So these pulses would be reflected by the objects and these echoes are received by the proximity switch and distance is calculated. These devices can sense up to 10 meters

Applications of Ultrasonic proximity switches

• Level measurement and position detection
• Limit detection and thickness measurement
• Stack height measurement

3.Optical switch (Photoelectric proximity switch)

An optical switch is a type of proximity switch and this device has a photocell and a light source. The device would react to changes in the received quantity of light, the light beam emitted from the emitter diode is interrupted or reflected by the object to be detected. This device is also used for safety purposes so by using this device we can check dangerous areas before personnel entry. These sensors are really compact and economical. These sensors have great flexibility

Applications of Optical switch (Photoelectric proximity switch)

• Conveyor systems and packing machines
• Mechanical engineering
• Paper, textile and plastic processing
• In printing machines
• Access control

4. Capacitive Proximity switches

Capacitive proximity switches can measure conductive and non-conductive material and it is a non-contact sensor. The detection of the object is done according to a shift in capacitance. This device can detect objects in solid, powder, or liquid state. So this type of proximity switch can detect wood, oil, water, plastic, and ceramic. Capacitive proximity switches can detect objects through certain non-metallic objects. In this proximity switch, two electrodes are used, so when an object reaches the active section of the switch it would be in place of the electrical field of the electrodes and changes the coupling capacitance.

Applications of Capacitive Proximity switches

• Level indication
• Object counting
• Automation control
• Level control in plastic or glass containers

Installation and Wiring of Proximity Switches

Installation Guidelines

• Mount switches perpendicular to the target surface for accurate detection.
• Position switches within their specified sensing range.
• Maintain proper clearance from nearby metal objects or other sensors.
• Install in environments within the specified temperature range to prevent damage.
• Choose switches with the appropriate IP rating for protection against moisture, dust, and harsh conditions.

Wiring Instructions

• Adhere to the manufacturer’s wiring diagram for accurate connections.
• Connect the switch directly to the control system, ensuring compatibility.
• Use the correct power supply voltage as specified by the manufacturer.
• Ground and shield cables to protect against electrical interference.
• Route sensor cables away from high-voltage lines to prevent signal interference.

Advantages of Proximity Switches

• Proximity switches have no moving parts, leading to a longer lifespan and reduced maintenance needs.
• They operate without physical contact, reducing wear and the risk of mechanical failure.
• Capable of rapid response times, making them ideal for high-speed applications.
• Effective across various materials, including metals, plastics, and liquids, and can be used in a wide range of environments.
• Many proximity switches are resistant to dirt, dust, and moisture, making them suitable for harsh conditions.

Disadvantages of Proximity Switches

• Proximity switches typically have a shorter sensing range compared to other types of sensors.
• Performance can be affected by extreme temperatures, electromagnetic interference, and the presence of strong magnetic fields.
• In certain applications, proximity switches may experience false triggering due to nearby metal objects or other sensors.
• Some proximity switches require specific power supply conditions, which can limit their use in certain systems.

Proximity Sensors vs. Limit Switches

Proximity Sensors vs. Photoelectric Sensors

Maintenance of Proximity Switches

Regular Cleaning

• Clean the sensor surface regularly to remove dust, dirt, and debris.
• Use a soft cloth or mild cleaner; avoid harsh chemicals.

Check for Wear and Damage

• Inspect the sensor body, wiring, and mounting hardware for any signs of wear or damage.
• Ensure all components are secure and in good condition.

Recalibration

• Recalibrate the sensor periodically to maintain accuracy.
• Recalibrate after moving the sensor or if performance issues are noticed.

Check Connections

• Inspect electrical connections to ensure they are tight and free of corrosion.
• Verify that the power supply matches the sensor’s voltage requirements.

Troubleshooting Common Issues with Proximity Switches

FAQ – Proximity Switch

How to Work a Proximity Switch?

A proximity switch works by emitting an electromagnetic field or a beam of electromagnetic radiation (infrared, for example) and detecting changes in the field or return signal caused by the presence of an object. When an object enters the detection range, it triggers a response in the switch, which then sends a signal to a control system.

What is the Function of a Proximity Sensor?

The function of a proximity sensor is to detect the presence or absence of an object within its sensing range without physical contact. This detection is used to automate tasks, control machinery, ensure safety, or count objects.

What are 3 Types of Proximity Devices?

1. Inductive Proximity Sensors: Detects metal objects using electromagnetic fields.
2. Capacitive Proximity Sensors: Detects both metallic and non-metallic objects by sensing changes in capacitance.
3. Ultrasonic Proximity Sensors: Uses sound waves to detect objects, regardless of material.

What is the Purpose of Proximity?

The purpose of proximity sensors is to detect objects or conditions in a process without requiring physical contact, enhancing automation, safety, and precision in various industrial and commercial applications.

What is the Application of a Proximity Switch?

Proximity switches are used in a wide range of applications, including:

• Industrial automation: To detect the position of parts, tools, or machinery components.
• Safety systems: To prevent machinery from operating when a person or object is in a dangerous position.
• Automotive systems: For parking assistance or collision avoidance.
