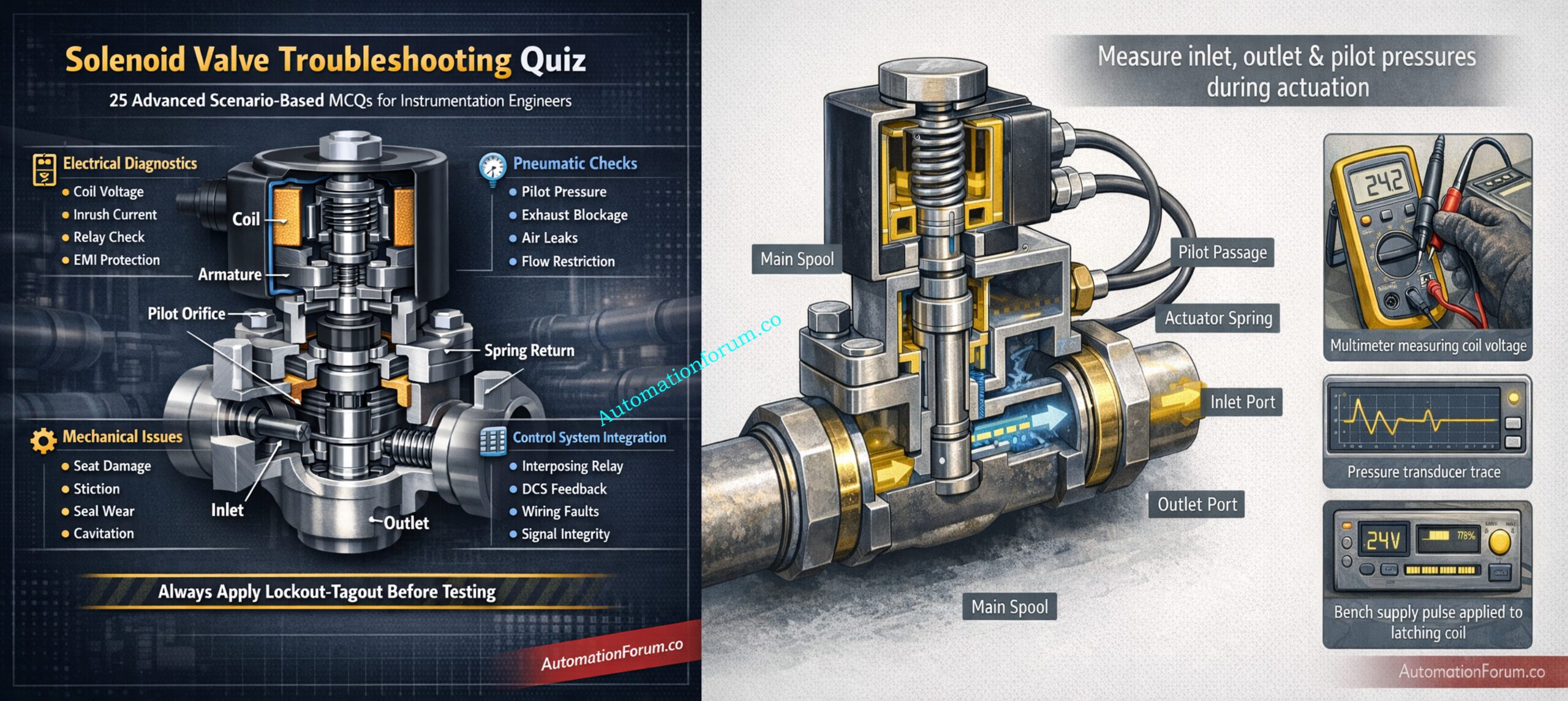

Solenoid Valve Troubleshooting – Advanced Quiz for Instrumentation Professionals

Explanation: Coil open-circuit would cause no energization, but two different coils testing good outside the cabinet suggests the control wiring or intermediate switching device (relay, contactor, or safety interlock) upstream of the coil is not closing. Verify continuity from DCS output through interposing relay and fuses to the coil while exercising the DCS output. Inspect relay coil voltages and contact state, safety interlocks, and terminal block wiring. Use a clamp meter or voltmeter to confirm whether the DCS output actually supplies the relay, and trace wiring diagrams to locate the open.

Explanation: Intermittent feedback often arises from cabling issues loose connectors, chafing, moisture ingress, or grounding faults causing transient comms loss. Inspect cable routing for mechanical stress, verify connector integrity and sealing, test continuity and insulation resistance, and check transmitter powering and surge suppression. Use loop calibrator to simulate signals and confirm stable readings. Correct cabling and grounding typically resolve intermittent transmitter faults.

Explanation: Cavitation occurs when local pressure drops below vapor pressure causing vapor pockets that collapse and erode components. Immediate mitigation includes reducing pressure drop (re-route flow, partially open valve to reduce ΔP) or increasing downstream backpressure. Long-term fixes: anti-cavitation trims, staged reductions, specialized materials, and selecting valves rated for higher ΔP. Inspect and replace eroded parts; monitor for noise and vibration indicators.

Explanation: For very high cycle counts, standard valves wear prematurely. Choose valves explicitly rated for high-cycle service with specially designed coils for continuous or rapid cycling, hardened plunger/sleeve materials to resist wear, and modular replaceable inserts. Pilot-assisted designs can minimize wear by reducing direct mechanical impact. Also implement scheduled component replacement based on life-cycle tracking.

Explanation: Hydrogen peroxide is highly reactive; single-valve failures are hazardous. Implement double-block-and-bleed or redundant isolation valves, secondary containment, and materials compatible with H2O2 to prevent degradation. Add continuous leak detection and automated shutdown logic. Regular maintenance and inspection frequency must be increased for such hazardous chemicals. Design for safe failure modes and verify safety interlocks function without causing uncontrolled leakage paths.

Explanation: Rebuilds often introduce trapped air or improper tubing orientation that creates pockets and delays. Bleed the pilot and control lines, confirm correct port connections (inlet/outlet/exhaust), replace or reseat push-to-connect fittings, and verify filter/regulator settings. Also check for micro-leaks causing air ingestion; use soapy water or leak detectors on fittings. Proper reassembly and leak testing restore expected actuation speed.

Explanation: Hydrogen embrittlement affects certain alloys and causes brittle failure resulting in sudden mechanical anomalies. Select materials and treatments resistant to hydrogen exposure (appropriate stainless grades, coatings, or polymeric seats). Diaphragm-operated valves avoid metal-to-metal seating where embrittlement risk is highest. Evaluate process hydrogen partial pressure and temperature, and implement materials selection per refinery standards.

Explanation: EMI can induce voltage transients that confuse driver electronics or create false actuation. Installing proper suppression devices across DC coils (RC snubber, diode for DC with correct polarity, transient voltage suppressor) prevents voltage spikes. For AC coils, RC or surge arrestors are appropriate. Shielded cabling, proper grounding, separation of power and signal cables, and adding surge protection at control panels reduce susceptibility. Also check for broken suppression diodes that may be missing.

Explanation: Thermal expansion or seal softening under continuous energization can change clearances and produce position drift. Logging coil temperature and valve position simultaneously will reveal correlation. Also inspect materials for recommended duty-cycle and maximum continuous temperatures. If thermal deformation is confirmed, adjust duty cycle, install cooling or heat-sinking, use higher-temperature-rated materials, or change to a valve designed for continuous duty.

Explanation: Solenoid coils often exhibit inrush currents significantly higher than steady-state. If fuse blows only on actuation but coil measures nominal steady current when static, the fuse may be undersized or too fast-acting. Check coil inrush current with oscilloscope or clamp meter; use slow-blow fuses rated for inrush or add soft-start/inrush limiters. Ensure wiring and relay contacts are sized correctly. Replacing with a fuse matching manufacturer’s recommendations resolves nuisance blowing.

Explanation: Slow reseating suggests trapped fluid in pilot cavity or slow bleed due to internal leakage or clogged vent/bleed. If the pilot cavity cannot exhaust quickly it prevents the main valve from returning promptly. Inspect pilot passages, check for debris, and verify that return springs and seals in pilot are intact. Clean pilot orifices and vents, replace worn seals, and consider adding a dedicated fast-exhaust path if manufacturer recommends.

Explanation: A coil that activates on single-phase but not when connected via 3-phase starter suggests starter wiring or contactor problems possibly one phase missing, welded contact, or anti-phase causing reduced voltage to the coil or improper starter wiring. Use a phase rotation meter and measure voltages at the coil under starter control. Inspect contactors, control transformer, and overloads. Correct starter wiring or replace faulty contactor to restore proper actuation.

Explanation: Non-linear response with deadband and sticking at low travel indicates stiction and poor resolution near small openings. Contamination, rough surfaces, or seal stickiness cause this. Clean valve internals, check seat/plunger finish, and if process requires fine low-flow control, select a valve with smaller Cv or multi-stage trim to linearize small-flow behavior. Adding a flow-smoothing orifice or change to a valve designed for low-flow proportional control can improve linearity.

Explanation: Premature failure in corrosive environments is typically material incompatibility causing corrosion of internal wetted parts and seals. Specify valves with appropriate wetted-materials like Hastelloy, duplex stainless, or PTFE seals, and ensure exterior components have protective coatings. Also consider selecting valves with encapsulated coils or IP-rated enclosures and check for galvanic corrosion with connected piping materials. Proper material selection and regular inspection will reduce corrosion-induced failure.

Explanation: Correct HMI reading but physical misalignment indicates transmitter coupling was reinstalled offset from actual shaft. During maintenance, the mechanical key or coupling can be rotated relative to actuator shaft, giving false feedback. Verify mechanical alignment, remove covers, reindex transmitter to valve shaft per vendor instructions, and recalibrate zero/span. Secure coupling and use paint marks or mechanical keys to prevent recurrence.

Explanation: Pigging operations can carry solids and abrasive particles that erode or embed in seating surfaces, causing leakage. Inspect seat and plug for scoring, pitting, and embedded particles. Clean and replace damaged seats; consider upgrading to hardened seats or using design tolerant of pigging. Additionally, install upstream filters or pigging sequences that minimize abrasive particle contact with valve seats.

Explanation: For air-to-open spring-to-close or vice versa, actuator venting is required for movement on air loss. If exhaust or vent ports are blocked (dirt, ice, closed bleed), the actuator cannot vent or pressurize appropriately, preventing movement despite correct coil state. Inspect exhaust lines, silencer/muffler, and actuator vent paths. Confirm spring integrity and that the actuator is sized for fail-safe travel. Clean or replace clogged vents and verify action under controlled depressurization.

Explanation: Clicking plus oscillating flow implies dynamic instability cavitation, resonance, or pilot-induced oscillation. Recording pressure traces at inlet, outlet, and pilot during actuation will reveal oscillation frequency, pressure spikes, and possible cavitation indicating inadequate pressure or flow. Analyze whether pilot orifice sizing, damping, or a restrictive line is causing oscillation. Solutions include adding damping orifices, bleed adjustments, check valves to prevent backflow, or resizing pilot passages.

Explanation: Latching valves require correct pulse energy, duration, and often polarity. Intermittent failure suggests pulse parameters might be marginal or wiring polarity reversed. Use a bench supply and inject pulses at the valve with controlled voltage, current, and time while monitoring waveform. Confirm the pulse meets manufacturer energy and timing specifications. Inspect control circuit for series resistances, fuses, or diode suppression altering pulse shape. Fix by adjusting controller pulse width, installing proper transient suppressors, or replacing failing drive components.

Explanation: Constant coil current with drifting position feedback suggests mechanical issues between actuator and feedback transducer stiction, wear, or loose linkage. Hunting near setpoint indicates friction breakaway and spring return behavior. Inspect actuator bearings, linkage, and feedback potentiometer or LVDT mounting. Lubricate per manufacturer instructions, tighten mechanical couplings, check for backlash, and verify feedback sensor zero/span. Replacing worn mechanical parts or re-aligning linkage reduces drift and hunting.

Explanation: Pilot-operated valves must be sized and spring-rated to overcome system differential at maximum expected upstream pressure. If valve cannot close at high upstream pressure, the main spool or poppet may need higher closing force or a balanced design to reduce pressure-assisted opening. Check manufacturer curves for operating pressure and reseat force; consider a stronger spring or balanced valve type. Also confirm pilot supply pressure and pilot orifice condition; a clogged pilot can reduce closing force under high mainline pressure.

Explanation: Warm coil indicates higher power dissipation. Even if cold resistance looks normal, under supply voltage the coil current may be high due to undervoltage or voltage spikes, or partial shorted turns causing localized heating and reduced magnetic force. Measure actual coil current and line voltage while energized, inspect for voltage drops in supply wiring, check for loose connections causing local heating, and examine duty cycle excessive duty can overheat coil. Replace coil if shorted turns are suspected; verify coil rated voltage matches supply.

Explanation: Low temperatures increase viscosity of lubricants and can stiffen elastomer seals, causing increased friction and flow restriction in small pneumatic passages and pilot passages. This delays spool movement and slows response. Inspect seals for compatibility with ambient temperature, check lubricator settings, and verify pressure and flow using flow meters or manometers. Consider using low-temperature-compatible seals, adjust lubricator viscosity, or apply local heating if necessary for critical lines.

Explanation: Slight armature movement indicates coil and electrical supply are present; steam conditions often cause deposits, scale, or warpage on valve seats and plungers preventing full seating. Inspect seating surfaces, check for thermal distortion from high-temperature steam, and confirm valve material compatibility. Use mirror/borescope inspection or remove valve for cleaning. Also check spring preload and clearance tolerances per datasheet; only after mechanical causes excluded should you test coil integrity and electrical phasing.

Explanation: Manual operation working indicates mechanical movement is possible; steady coil voltage and correct PLC output indicate the electrical path and logic are functioning. Intermittent failure under process conditions suggests the valve is pilot-operated and requires a pilot pressure or orifice clearance to shift against system pressure. Inspect pilot passages, filter screens, and supply pressure to the pilot; measure differential pressures across pilot orifice and main spool during actuation. Clean or replace pilot orifice, and verify alignment with manufacturer’s flow path diagrams.
