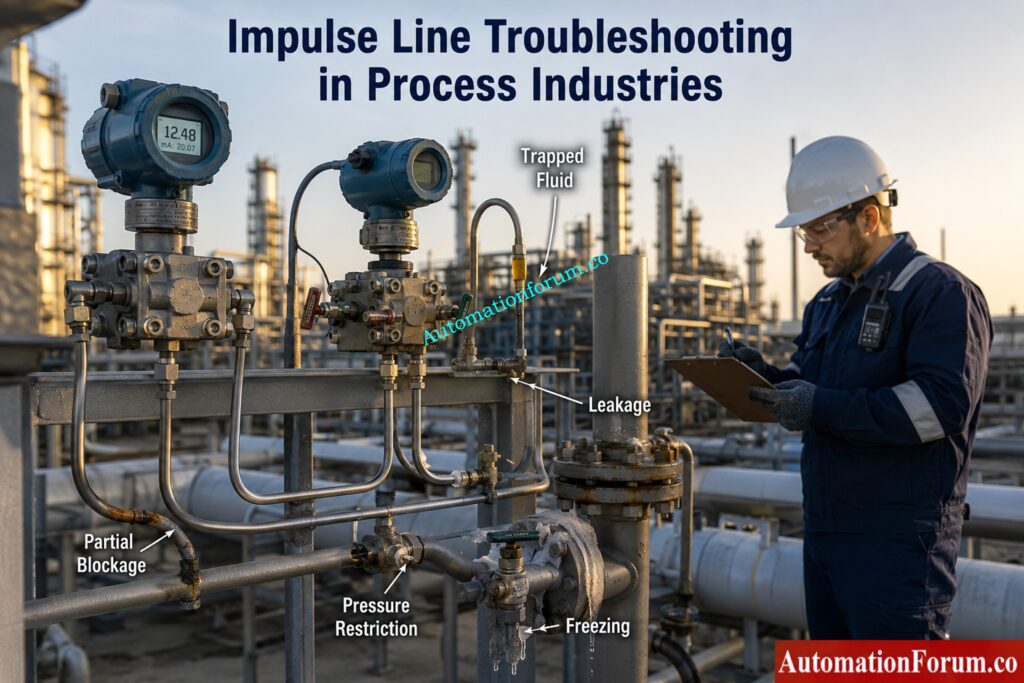

Impulse Line Troubleshooting Quiz in Process Industries

Detailed Explanation:
A restricted impulse line can isolate the transmitter from changing process conditions while leaving trapped pressure at the sensor. The transmitter may therefore continue showing a believable value even though the actual process has changed. Plugged impulse line diagnostics can help identify this condition by detecting changes in the pressure signal characteristics.

Detailed Explanation:
A vent connected to a process impulse line can release hazardous, toxic, flammable, hot, or pressurized material depending on the service. Troubleshooting must therefore begin with approved isolation, depressurization, containment, permits, and plant safety procedures. The diagnostic objective never overrides process containment requirements.

Detailed Explanation:
An open equalizing valve can connect the high and low pressure sides and substantially reduce the differential pressure seen by the transmitter. This can make a healthy transmitter appear faulty. Manifold position should always be verified after maintenance before diagnosing transmitter electronics.

Detailed Explanation:
Internal corrosion can reduce the effective impulse line passage and restrict pressure transmission. The restriction may develop gradually, producing increasing response lag or measurement error. External appearance alone may not reveal an internal restriction, so the impulse line condition must be evaluated using approved maintenance methods.

Detailed Explanation:
A healthy transmitter that does not follow real process changes should prompt investigation of the pressure transmission path. Blockage, freezing, closed valves, or process connection restrictions can isolate the sensor from changing process pressure. Advanced transmitters may also provide plugged impulse line diagnostics in suitable applications.

Detailed Explanation:
A DP transmitter calculates the difference between high side and low side pressure. If the low side path becomes restricted and does not transmit the actual lower pressure correctly, the transmitter can see an artificially increased differential. The exact output depends on the application and actual pressure conditions.

Detailed Explanation:
Condensed liquid in a gas service impulse line can form a liquid column between the process connection and transmitter. That column creates additional hydrostatic pressure that may appear as an unwanted measurement offset. Proper routing and drainage are therefore important in gas pressure measurement.

Detailed Explanation:
Elevation differences between the pressure tap and transmitter create a hydrostatic head when the impulse line contains liquid. Depending on the measurement configuration, this can create a predictable pressure offset. The transmitter mounting elevation therefore needs to be considered during installation and calibration.

Detailed Explanation:
An internal manifold leak or incorrectly positioned equalizing valve can allow pressure to pass between pressure sides. This can distort a DP measurement even when the primary isolation valves appear open. Manifold troubleshooting therefore requires checking the complete valve arrangement rather than only the process isolation valves.

Detailed Explanation:
Sediment can restrict one pressure path more than the other. A differential pressure transmitter depends on accurate transmission of both high and low pressure conditions. Comparing both impulse paths helps determine whether the measurement error originates in the process pressure path rather than the transmitter itself.

Detailed Explanation:
Wax accumulation reduces the effective internal passage available for pressure transmission. The transmitter may continue providing a reasonable steady reading while becoming increasingly slow during dynamic process changes. This distinction is important because a believable steady value does not eliminate an impulse line restriction.

Detailed Explanation:
A pressurized impulse line is part of the process containment boundary. Intrusive work must follow plant isolation procedures, permits, approved depressurization requirements, and applicable safety controls. A technician should never assume that a closed process valve means the impulse line contains no pressure.

Detailed Explanation:
Incorrect manifold operation can alter the pressure applied to the transmitter. Depending on the manifold arrangement, incorrect block or equalizing valve positions can partially isolate one pressure side or equalize both sides. The manifold configuration should be checked against the approved operating position.

Detailed Explanation:
The physical restriction provides a direct explanation for the delayed pressure transmission. Because the transmitter damping setting is unchanged, the field evidence points toward the impulse piping rather than the configuration. Partial blockage can reduce the speed at which pressure changes reach the sensor.

Detailed Explanation:
A successful calibration test demonstrates that the transmitter can respond correctly under the test conditions. It does not prove that process pressure is reaching the sensor correctly. The process tapping point, isolation valves, impulse piping, manifold, vents, drains, and connections should therefore be investigated systematically.

Detailed Explanation:
Closing an isolation valve can isolate the transmitter from the process while leaving pressure trapped in the impulse line. The transmitter may continue indicating that trapped pressure until leakage, equalization, or another pressure change occurs. This is why a believable reading does not prove that the transmitter remains connected to the live process.

Detailed Explanation:
Closing an isolation valve can isolate the transmitter from the process while leaving pressure trapped in the impulse line. The transmitter may continue indicating that trapped pressure until leakage, equalization, or another pressure change occurs. This is why a believable reading does not prove that the transmitter remains connected to the live process.

Detailed Explanation:
A reversed DP indication after maintenance strongly suggests incorrect high and low pressure connections or incorrect manifold operation. Swapping the pressure paths reverses the differential pressure presented to the transmitter. High and low connections should always be verified against the approved engineering documentation and transmitter configuration.

Detailed Explanation:
A wet leg provides a reference pressure that depends on the liquid column condition. Changes in reference liquid density or level can change the hydrostatic pressure applied to the transmitter. The resulting level indication can therefore shift even when actual vessel level remains stable.

Detailed Explanation:
Steam measurement systems rely on stable condensate conditions in the impulse piping. Unequal condensate levels can create different hydrostatic heads on the two sides of the transmitter. That additional pressure difference can appear as a false process differential pressure.

Detailed Explanation:
Liquid trapped in a gas service impulse line can create an unwanted hydrostatic head. Changes in temperature can also influence the condition of the trapped liquid and therefore the measured pressure. The pressure measurement path must maintain the intended phase condition for reliable measurement.

Detailed Explanation:
Liquid impulse lines should not contain unintended gas pockets because the gas can compress and alter pressure transmission. This can introduce measurement instability, response delay, or hydrostatic errors. The transmitter can still be correctly calibrated while the installed measurement path produces inaccurate process information.

Detailed Explanation:
Freezing can restrict or completely block an impulse line, isolating the transmitter from changing process pressure. The transmitter may continue displaying a believable value because pressure can remain trapped between the blockage and sensing element. Cold ambient conditions make freezing a particularly important diagnostic possibility.

Detailed Explanation:
A partial blockage adds resistance to pressure transmission between the process and sensing element. The transmitter can remain fully functional while the pressure reaching its sensor changes slowly. This creates impulse line response lag that can resemble excessive transmitter damping.

Detailed Explanation:
Restriction on the low pressure side can prevent the true lower pressure from reaching the transmitter. The transmitter may therefore see a larger differential pressure than the actual process condition. Deposits in the low side impulse line are a strong physical clue because unequal pressure transmission directly affects DP measurement.
