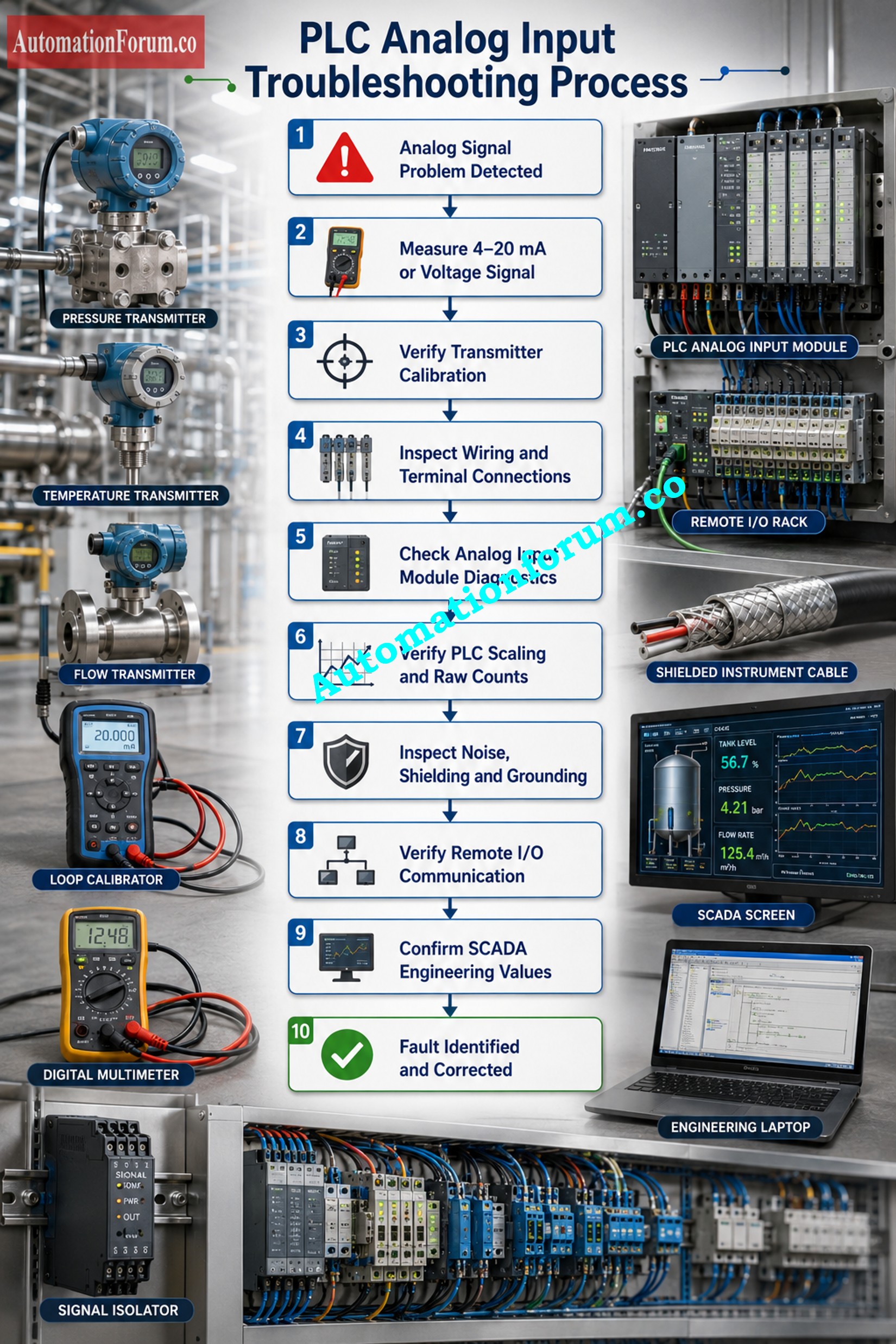

PLC Analog Input Troubleshooting Quiz with 25 Practical Engineering Questions

An experienced maintenance engineer wants to minimise future PLC analog input faults across a process plant. Which practice provides the greatest long term benefit?

A commissioning engineer discovers that a transmitter replacement causes the PLC to display only half of the expected process value. What is the most likely explanation?

An analog input value changes slowly even though the process changes rapidly. The transmitter responds correctly when tested locally. Which PLC setting should be examined first?

Several analog inputs connected to one remote input station suddenly stop updating after maintenance on the industrial communication network. What is the most probable root cause?

During commissioning, a technician notices that the PLC receives the correct raw analog counts, but the displayed engineering units remain incorrect. Which component should be checked first?

A loop powered level transmitter repeatedly loses signal whenever another transmitter on the same power supply starts operating. Which condition should be investigated first?

A new pressure transmitter has been installed, but the PLC always displays negative engineering values even though the process pressure is positive. What is the most likely cause?

A pH transmitter output remains steady at sixteen milliampere in the field, but the PLC value changes randomly every few seconds. Which troubleshooting step should be performed first?

During factory acceptance testing, engineers notice that every PLC analogue input consistently reads approximately five percent higher than the calibrated transmitter output. Which troubleshooting action should be performed first?

Several analog inputs connected through one intrinsic safety barrier suddenly indicate abnormal values after maintenance work. What should be inspected first?

A smart temperature transmitter reports the correct value through its digital communicator, yet the PLC analog input remains fixed at four milliampere. Which fault is most likely?

An analog input becomes unstable immediately after a Variable Frequency Drive is commissioned nearby. Which corrective action is most appropriate?

A technician measures twenty milliampere leaving a transmitter, but only sixteen milliampere reaches the PLC analog input terminals. What is the most likely cause?

A new analog input module has been installed, but every connected transmitter now indicates incorrect engineering values. What should be verified first?

A flow transmitter intermittently drops to zero for only a few seconds before recovering automatically. Which fault should be investigated first?

A differential pressure transmitter measures correctly with a loop calibrator, but the PLC displays values approximately twenty percent lower than expected. Which configuration issue is the most likely cause?

An operator reports that the SCADA display shows eighty percent tank level, while the PLC online value shows exactly fifty percent. Both values remain stable. What is the most likely explanation?

A remote analog input station suddenly stops updating values in the PLC, while local field transmitters continue operating normally. What should be checked first?

During routine maintenance, the PLC analog value drifts slowly over several hours while the actual process remains stable. Which factor is the most likely cause?

A loop powered pressure transmitter suddenly reports an open loop alarm on the PLC analog input diagnostics. Which investigation should receive the highest priority?

A zero to ten volt flow transmitter outputs five volts when measured directly, but the PLC consistently displays approximately two volts. Which condition is most likely responsible?

A PLC analog input suddenly indicates one hundred percent immediately after maintenance inside a marshalling cabinet. Which issue is the most probable cause?

A four to twenty milliampere level transmitter always reads exactly four milliampere even when the process level changes significantly. Which troubleshooting action should be performed first?

During commissioning, a temperature transmitter connected to a PLC analog input suddenly fluctuates between forty percent and sixty percent whenever a nearby motor starts. What should be investigated first?

A pressure transmitter powered by a twenty four volt supply should deliver twelve milliampere at fifty percent pressure. The PLC consistently displays zero percent even though a multimeter measures twelve milliampere in the loop. Which fault is the most likely cause?
