Control Valve Cv Calculation Quiz for Instrumentation Engineers

Sundareswaran Iyalunaidu
By Sundareswaran Iyalunaidu

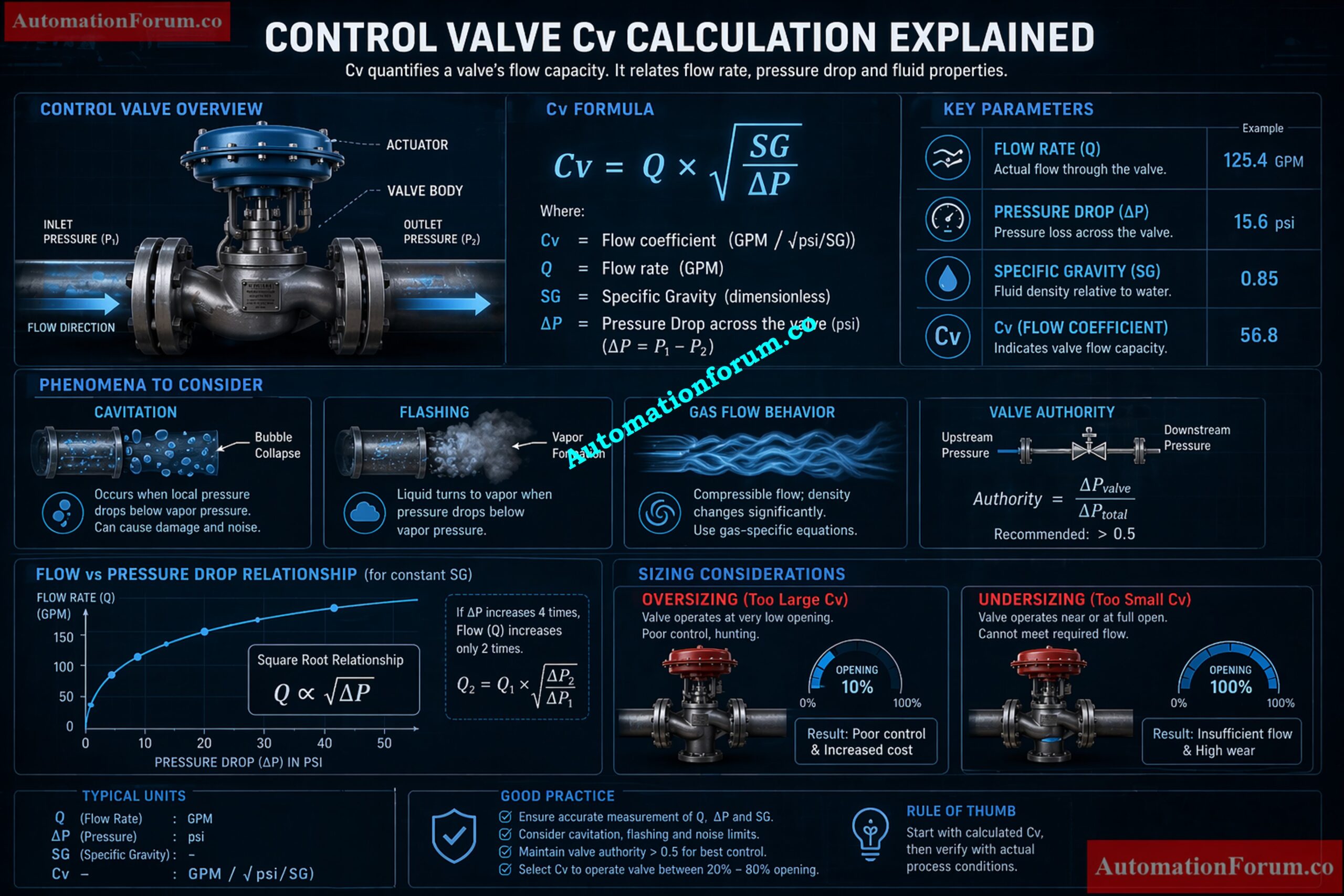

Introduction to Control Valve Cv Calculation and Valve Sizing

Control valve sizing is a critical activity in process industries where accurate flow control ensures plant stability, safety, and efficiency. The flow coefficient Cv represents the valve capacity and directly influences pressure drop, controllability, and energy losses. Improper Cv selection can lead to cavitation, choked flow, valve hunting, or poor process response. Industry standards such as ISA 75 and IEC 60534 provide structured methods for calculating Cv for liquids, gases, and steam. In real plants, engineers must evaluate operating ranges, specific gravity, and pressure conditions to ensure reliable valve performance.

This quiz focuses on practical scenarios faced during design, commissioning, and troubleshooting.

How to Take This Control Valve Cv Calculation Quiz

Control Valve Cv Calculation Quiz for Instrumentation Engineers

This is an advanced level quiz designed for experienced engineers.
Read each scenario carefully before selecting an answer.
Focus on real plant logic, not memorization.
Use engineering judgment for pressure drop, flow behavior, and valve performance.
Some questions require calculations, others test troubleshooting skills.
Choose the most practical and technically correct answer.

1 / 25

 Design Mistake (Expert Level)

An engineer sizes valve using only maximum flow condition.

What is the risk?

2 / 25

Noise in Gas Valves

Noise mainly caused by:

3 / 25

Valve Selection Philosophy

Best practice for Cv selection:

4 / 25

Low Reynolds Effect

At low Reynolds number:



5 / 25

Cv Meaning Trap

Cv = 100 means:

6 / 25

IEC Standard Role

IEC 60534 provides:

7 / 25

Steam Valve Behavior

Steam flow increases with:

8 / 25

 Hunting Cause

Valve oscillates continuously.

Most likely reason?



9 / 25

 Rangeability Concept

Rangeability refers to:

10 / 25

Numerical Cv Check

Q = 80 GPM, SG = 1, ΔP = 4 psi

Cv = ?



11 / 25

 High ΔP Effect

Very high pressure drop leads to:

12 / 25

Low ΔP Problem

A valve has very low pressure drop.

What happens?

13 / 25

Equal Percentage Selection

Best valve type for wide flow variation?

14 / 25

Installed vs Inherent Characteristic

Why does installed characteristic differ?



15 / 25

Flashing vs Cavitation Trap

Flashing differs from cavitation because:

16 / 25

Cavitation Identification

A valve shows noise, vibration, and trim erosion.

Cause?

17 / 25

Valve Authority Design

Valve ΔP = 3 psi
System ΔP = 12 psi

Authority = ?



18 / 25

Choked Flow Impact

If ΔP increases beyond choked condition:

19 / 25

Choked Flow Condition

For gas, when does choked flow occur?

20 / 25

Gas Flow Behavior

Why is Cv calculation for gas more complex than liquid?

21 / 25

Undersizing Impact

A valve cannot achieve required maximum flow even at 100% opening.

Cause?

22 / 25

Oversizing Real Field Issue

A control valve is always below 10% opening during operation.

What is the real issue?

23 / 25

Specific Gravity Trap

A hydrocarbon fluid (SG = 0.7) replaces water in same system.

What happens to required Cv?

24 / 25

Pressure Drop vs Flow Behavior

If pressure drop across a valve increases from 4 psi to 16 psi, how does flow change?

25 / 25

 Cv Calculation with Engineering Judgment

A process requires 150 GPM water flow. Available pressure drop is 16 psi. SG = 1.

What is required Cv and what does it imply for valve selection?





Your score is

The average score is 63%

0%
