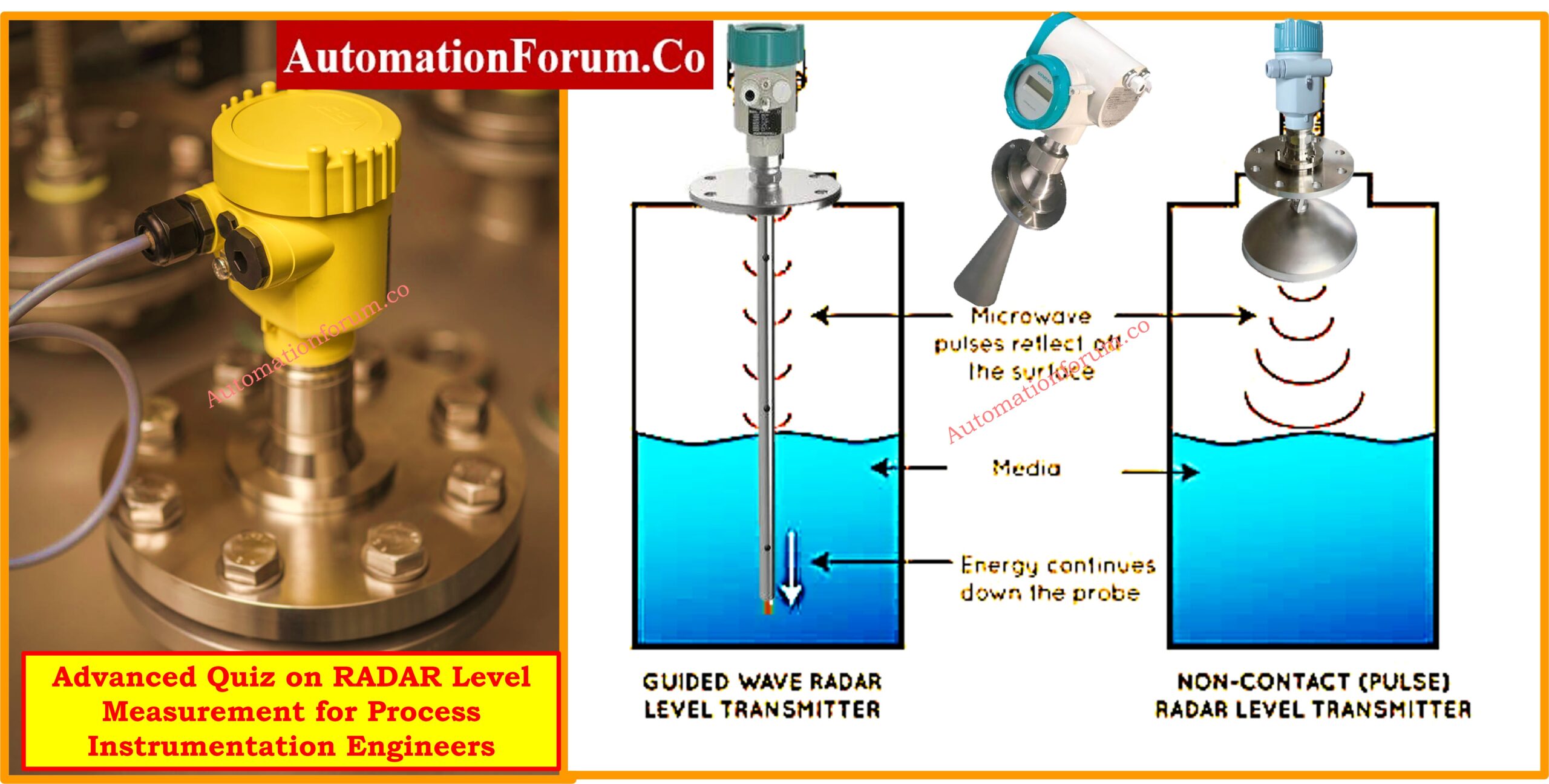

Advanced Quiz on RADAR Level Measurement for Process Instrumentation Engineers

HART multiplexers let many field devices be digitally connected to a host utilizing a shared analog backbone.

Simulating the 4-20 mA signal guarantees the PLC or DCS analog input modules receive the scaled output of the transmitter in correct manner. Before live process handover, it confirms wire accuracy, I/O card response, and analog signal linearity important.

False echo suppression lets the user cut out echoes brought on by mounting structures or tank internals.

Uneven or complicated surfaces might reflect several signals, hence echo suppression logic or mapping is needed.

Like 80 GHz, narrow-beam free-space radar can better manage dust and uneven surfaces in solids.

Buildup on the probe or too aggressive agitation lowers echo quality and calls for specific installation techniques or stilling pipes.

Every HART field device has a digital communication polling address assigned from within the network.

PTFE or another similar antenna material guarantees durability in strong chemical fumes or splashes.

Echo curves allow to identify real level signals and cancel spurious echoes or noise.

Echo loss generally follows from misalignment, pollution, or blockage of the antenna.

RADAR calculates level by timing a signal pulse’s journey to the product surface and return.

Mapping removes known barriers or dead zones in the tank and defines the measuring range.

Higher frequency, which is beneficial in small vessels or with obstacles, lets one focus more tightly and improve resolution.

proximity to metallic walls may produce false reflections, therefore confounding the level signal.

Signal misunderstanding can be brought about by electromagnetic interference (EMI) from surrounding transmitters.

Stilling wells helps liquid surfaces to stabilize, therefore enhancing the radar performance in highly agitated or foamy liquids.

Parabolic antennas have narrow beam angles fit for tall or narrow boats; Horn variants fit broader tanks.

The reflected signal might be dampened by foam or vapor layers, therefore producing weak or unstable echoes..

An empty tank offset defines a fresh zero reference point, therefore helping to offset angled roof mounting.

Periodic cleaning is necessary since moisture and salt build-up on antennas could compromise signal transmissions.

Level measurement is affected by signal reflection dispersion or absorption caused by obstructions including ladders or agitators.

HART maintains a 4-20 mA signal while providing analog + digital communication, so allowing remote setting and diagnostics.

Blocking distance, then, is the area around the sensor face where signal excess causes incorrect measurement.

GWR lessens susceptibility to low dielectric materials, mist, or turbulence by guiding the signal via a probe.

For tall, thin tanks including internal structures, coaxial guided wave radar is perfect. Minizing echo interference from tank internals, the probe guides the signal straight to the surface of the medium guarantees dependable performance in limited geometries.
