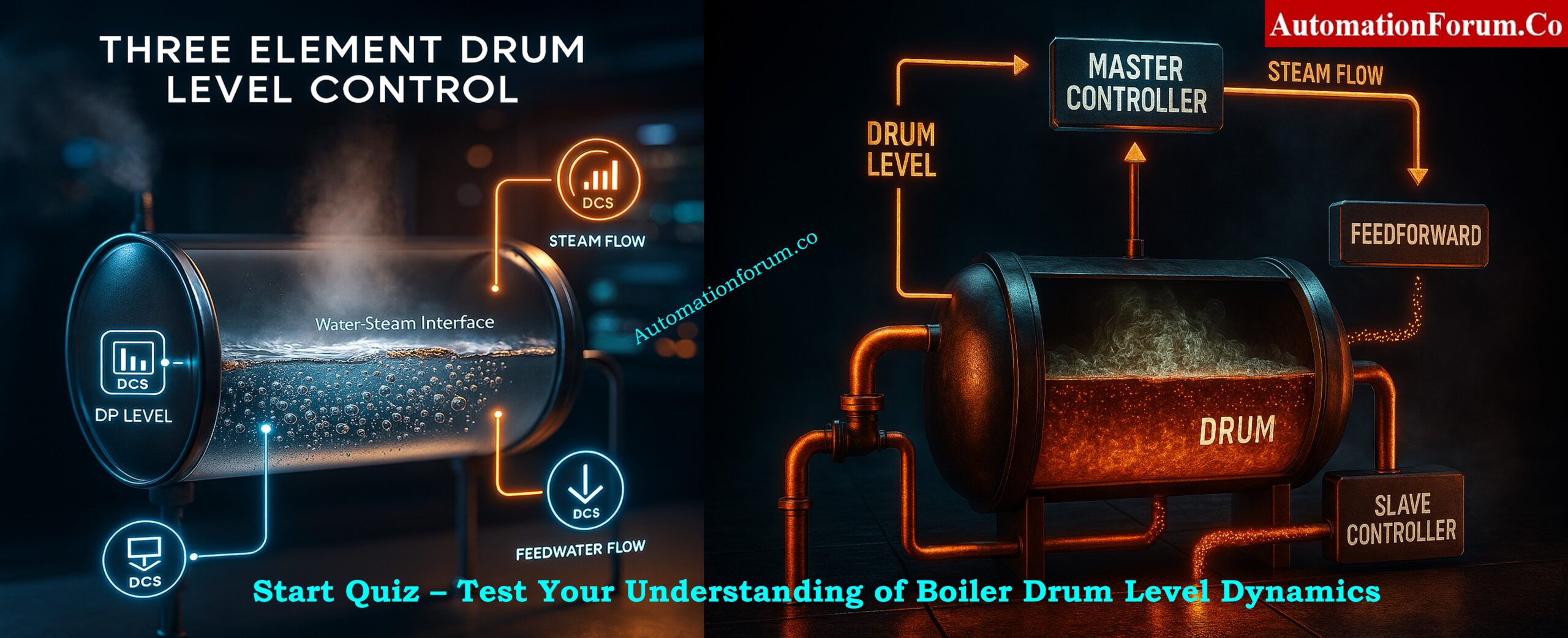

Three Element Drum Level Control System – Advanced Quiz for Instrumentation Engineers

Explanation: Before activating three-element control, both steam and feedwater flow transmitters must read consistently. A mismatch introduces immediate errors and destabilizes the level loop.

Explanation: Feedforward counters disturbances before they influence the controlled variable. In boilers, this drastically improves level stability during load swings.

Explanation: Feedforward accuracy depends on precise steam-flow measurement. Any error in steam indication leads to incorrect predictive compensation and unstable level control.

Explanation: Under steady conditions, feedwater flow matches steam flow to maintain mass balance. Deviations occur only during controlled transients such as load changes or swell/shrink compensation.

Explanation: If the valve is mechanically sluggish, the feedwater loop fails to track setpoint changes. This causes oscillations in both the flow and level loops.

Explanation: Safety systems require level transmitters to fail high (upscale) to avoid dry-fire conditions. This ensures protective shutdown logic receives conservative inputs.

Explanation: Flow transmitters must be accurately matched to maintain correct mass balance calculations. Any mismatch causes offset errors, unstable control, or feedwater over- or under-delivery.

Explanation: Reduced steam flow causes steam bubbles to expand, creating an apparent rise in drum level known as swell. Without proper control, the feedwater system may overcompensate.

Explanation: Linear valves provide consistent gain, enabling smoother control and reducing non-linearity in the feedwater loop. This improves cascade performance and stability.

Explanation: These three variables together capture both mass balance and disturbance behavior in the boiler. They allow predictive and corrective responses for accurate drum level control.

Explanation: Introducing cold or relatively cooler feedwater increases steam bubble formation, causing the drum level to swell temporarily. Three-element control compensates by balancing feedwater and steam flows.

Explanation: A blocked impulse line creates lag and dampened response in the level signal. This leads to delayed control action and potential mismatch between actual and measured drum level.

Explanation: For effective cascade control, the inner flow loop must respond much faster. If poorly tuned, the master loop attempts to correct deviations the slave has not addressed, causing instability.

Explanation: High-temperature, high-pressure steam service commonly uses an orifice plate with a DP transmitter. It provides robust, accurate measurement suitable for feedforward control.

Explanation: At low loads, steam bubble formation becomes more sensitive, amplifying shrink–swell effects. If tuning is not adjusted, the controller may overreact, causing level oscillations.

Explanation: Loss of feedwater flow measurement forces the control system to drop the three-element strategy and rely on drum level and steam flow only. This reduces reliability but keeps the boiler running safely.

Explanation: Feedforward steam-flow compensation allows the system to act ahead of load disturbances, improving stability dramatically. This avoids long recovery periods associated purely with feedback control.

Explanation: Poor tuning or mismatched dynamics causes the feedwater valve to oscillate as the controller overreacts. This leads to unstable drum level and increased mechanical wear.

Explanation: In cascade systems, the inner loop (flow) must be significantly faster than the outer (level) loop. This ensures the slave loop quickly compensates disturbances, allowing the master loop to remain stable and less aggressive.

Explanation: As drum water density changes with pressure and bubble content, the DP measurement shifts even when the actual mass level does not. This contributes to shrink–swell effects and requires compensated control strategies.

Explanation: Increased steam flow collapses steam bubbles in the water mixture, causing an apparent level drop known as shrink. This occurs before the actual mass level reduction, which is why feedforward steam flow compensation is critical.

Explanation: The slave controller controls feedwater flow by adjusting the feedwater valve or pump speed. It reacts quickly to steam-flow disturbances and ensures accurate flow matching before the level is affected.

Explanation: The master loop controls drum level and sends its output as a setpoint to the feedwater flow controller. This cascade arrangement ensures fast, stable response since the flow loop compensates rapidly for disturbances before affecting drum level.

Explanation: Shrink–swell is caused by the expansion and collapse of steam bubbles within the drum. Increased steam demand collapses bubbles (shrink), while increased feedwater or firing rate expands bubbles (swell). Three-element control stabilizes these effects through combined feedback and feedforward control.

Explanation: Steam-flow measurement provides proactive feedforward compensation during sudden load changes. When steam demand increases, the controller anticipates the drop in drum level and adjusts feedwater flow before the effect appears. This significantly improves stability compared to feedback-only systems.
