An Instrument Logic Diagram displays the interaction of process conditions, field signals, control functions, permissives, interlocks, trips, alarms and commands in an automated Logic diagrams are used by engineers in process industries to specify operation, protection, sequencing, shutdown actions and interfaces to equipment. They assist design, configuration, factory testing, commissioning, operation, maintenance and troubleshooting for DCS, PLC, SIS and ESD systems. Unlike a P and ID or instrument loop diagram, a logic diagram shows functional linkages and binary control behavior. This Instrument Logic Diagram Quiz develops skills needed to trace signals, interpret logic, verify Cause and Effect requirements, and troubleshoot control systems.

Advanced Instrument Logic Diagram Quiz for Process Control Systems in Process Industries

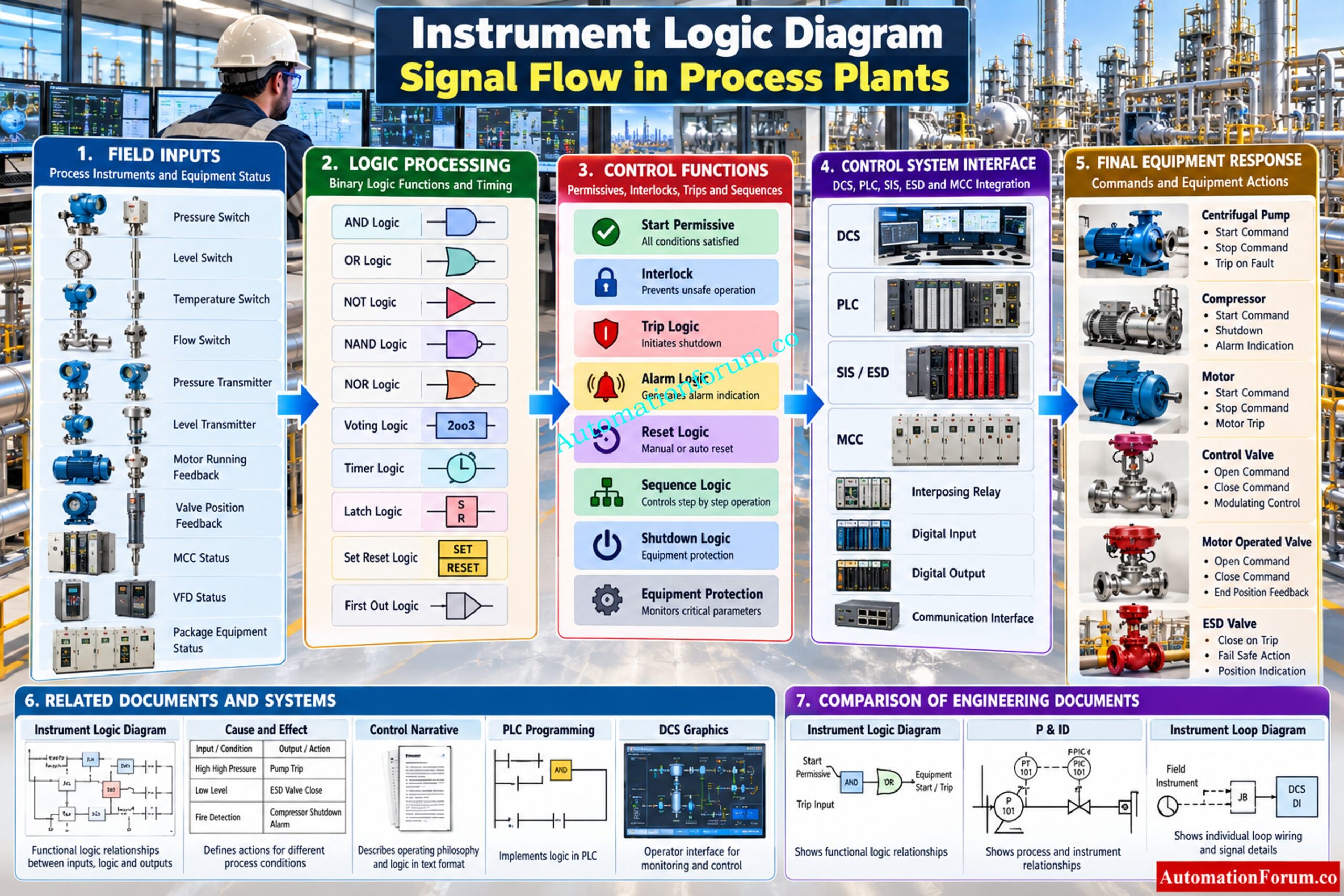

This advanced Instrument Logic Diagram Quiz challenges engineers to read control logic as it behaves in a real process plant. Analyze field conditions, permissives, interlocks, trips, feedbacks, timers, latches, voting functions, and control system interfaces before selecting an answer. Use each scenario to sharpen design review, commissioning, FAT, SAT, and troubleshooting judgment for process control, instrumentation, automation work, and applications.Test Your Instrumentation and Control Logic Skills

1 / 25

During maintenance, an operator applies an approved override to a low level interlock protecting a process pump. The shutdown logic also contains an independent emergency shutdown input from the SIS. The operator expects the override to prevent every pump shutdown. What should the Instrument Logic Diagram demonstrate?

2 / 25

A pump startup sequence contains these logic steps:

Verify suction valve open.

Verify lubrication healthy.

Start pump.

Wait for run feedback.

After successful run confirmation, permit discharge valve opening.

Enable automatic control.

During testing, the pump receives the start command but run feedback does not arrive within the configured confirmation period. What should happen next?

3 / 25

A reactor high pressure trip is derived from a pressure transmitter scaled from 0 to 100 bar. The approved shutdown requirement is 90 bar. During commissioning, the transmitter and DCS display both read 95 bar, but the SIS trip does not occur. Which engineering check is most appropriate?

4 / 25

A process protection function uses a 2 out of 3 voting arrangement. One transmitter is placed in an approved maintenance bypass, and the documented logic explicitly reconfigures the remaining channels into a 1 out of 2 voting arrangement during that bypass. While the bypass remains active, one remaining transmitter reaches the trip threshold. What should happen?

5 / 25

During SAT, a pressure switch is toggled in the field. The physical switch changes state correctly, but the DCS indication changes in the opposite direction from the documented logic diagram. Continuity tests show the wiring is intact. What should be checked first?

6 / 25

During FAT, an approved Cause and Effect revision changes the shutdown response for a compressor from alarm only to alarm plus automatic trip. The PLC logic has already been tested against the previous revision. What should the EPC and control system team do?

7 / 25

A forced draft fan start permission is generated by a logic block that becomes false only when both of the following are lost: lubrication healthy and remote control enabled. During FAT, engineers observe that the block output becomes true whenever either input becomes false. Which logic behavior does this represent?

8 / 25

A pump uses a momentary start pushbutton and a set reset latch. Pressing start sets the run command. The run command remains active after the button is released. Pressing stop or receiving a protective trip resets the latch. During testing, the start button is released but the pump continues running. Which statement best explains the behavior?

9 / 25

A motor operated valve XV 740 must open during startup only when the upstream isolation valve is proven open, the downstream pump is running, and no shutdown trip is active. During commissioning, the DCS sends an open command, but the valve does not move because the pump is stopped. What is the correct interpretation?

10 / 25

During an EPC design review, the approved Cause and Effect document states that either high reactor pressure or high reactor temperature shall initiate the same shutdown. The Instrument Logic Diagram implements the two conditions through an AND function. What should the design engineer do?

11 / 25

A package compressor PLC communicates several signals to the plant DCS, including package ready, compressor running, common trip, and start command. The DCS shows package ready as true and sends a start command. The compressor does not start because the package PLC local permissive for seal oil pressure is false. What is the correct engineering conclusion?

12 / 25

A pump graphic shows running status even though the pump is physically stopped. The DCS start command is false. The MCC technician confirms that the motor is stopped. The running status is supplied through a communication link from a PLC. What should the engineer investigate first?

13 / 25

A DCS shows a valid motor start command for M 510, but the MCC does not recognize it. The DCS output card is healthy. Which troubleshooting sequence is most appropriate?

14 / 25

A DCS shows a valid motor start command for M 510, but the MCC does not recognize it. The DCS output card is healthy. Which troubleshooting sequence is most appropriate?

15 / 25

During FAT, a motor status signal behaves exactly opposite to the expected state. The PLC output command is correct, the MCC indication is correct, and field wiring continuity is confirmed. Investigation shows that the interposing relay contact selected for the PLC input is normally closed, while the logic configuration assumes a normally open healthy contact. What is the most likely effect?

16 / 25

A high pressure switch uses a normally closed contact in a fail safe shutdown circuit. The logic is designed so that a healthy field circuit produces a normal state and loss of continuity produces a trip state. During testing, the instrument cable is intentionally disconnected. What should the logic recognize?

17 / 25

A compressor trip has been latched in the SIS. The process returns to a safe condition, but the reset command from the operator is rejected because one reset permissive remains false. The Instrument Logic Diagram shows a set reset latch. What should happen?

18 / 25

A ventilation fan run feedback signal is used to drive an alarm logic block with a five second off delay. During operation, run feedback disappears unexpectedly. Three seconds later, the fan feedback returns because the communication signal briefly dropped. What should the off delay function normally do?

19 / 25

A process shutdown requirement specifies that low flow must remain active continuously for ten seconds before a pump is tripped. During testing, the low flow signal becomes active for six seconds and then returns to normal. What should happen if the logic uses an on delay timer?

20 / 25

A compressor has three protective inputs connected to a first out logic function. During an upset, high bearing temperature becomes active first. Two seconds later, high vibration becomes active. After another second, low lube oil pressure becomes active. The DCS shows all three conditions, but the first out register identifies only one initiating condition. What should it identify?

21 / 25

A compressor controller is operating in manual mode instead of automatic mode. The operator can directly adjust the normal control output in manual mode. However, an independent high vibration trip remains active in both automatic and manual modes. Which interpretation is correct?

22 / 25

A process pump can be started from either the field station or DCS. The logic diagram includes a local remote selector. During commissioning, the selector is placed in local mode. The DCS operator sends a start command, but the pump does not start. A technician confirms that the local start pushbutton works correctly. What is the most likely explanation?

23 / 25

An emergency shutdown command is sent to an ESD valve XV 2201. The logic diagram specifies deenergization of the solenoid valve as the shutdown action and the valve is designed to fail closed. The ESD command reaches the output module, but field position feedback remains open after the configured closing time. What is the most appropriate interpretation?

24 / 25

A compressor protection system uses three independent discharge pressure transmitters in a 2 out of 3 voting arrangement. During operation, transmitter PT 401A detects high high pressure, PT 401B also detects high high pressure, while PT 401C remains below the trip threshold. No channel is bypassed and all three channels are healthy. What should the voting logic produce?

25 / 25

A motor M 304 receives a start command from the DCS through an interposing relay to the MCC. The Instrument Logic Diagram includes a start pulse followed by a five second run feedback confirmation timer. During FAT, the motor start output becomes active, but the MCC never returns run feedback. What is the expected logic response when the timer expires?
