Troubleshooting Control Valve Flashing in Process Areas Quiz

Explanation

Repeated trim replacement without reviewing the process basis can treat the symptom rather than the underlying problem. The engineering team should verify current P1, P2, temperature, vapor pressure, flow, valve travel, Cv requirement, pressure recovery, and flashing conditions against the original design basis. Control valve selection should reflect actual operating conditions.

Explanation

Flashing damage is strongly influenced by local velocity, flow path, pressure distribution, valve geometry, and material exposure. Damage can therefore vary with valve travel even when the overall process pressure drop remains significant. Field observations should be compared with valve travel, flow, pressure, and temperature trends.

Explanation

When the DCS transmitter disagrees with a calibrated local measurement, the measurement system should be verified before using the DCS value for engineering conclusions. Check transmitter calibration, impulse lines, isolation valves, configuration, scaling, and signal transmission. Incorrect pressure data can lead to an incorrect flashing diagnosis.

Explanation

The original P2 of 20 psia was already below the vapor pressure of 25 psia, indicating flashing conditions. Reducing P2 further to 15 psia increases the pressure difference below vapor pressure and can increase the severity of the flashing condition. Lower downstream pressure can therefore increase flashing related erosion.

Explanation

P2 is 32 psia while vapor pressure is 30 psia, so persistent flashing is not established from the downstream pressure. However, the local vena contracta pressure can fall below vapor pressure before recovering above it. The noise therefore warrants investigation of Pvc and pressure recovery for possible cavitation.

Explanation

When flashing is inherent to the process, the objective is to minimize its damaging effects rather than assume that the valve can prevent vaporization. Suitable valve geometry, erosion resistant materials, lower erosive velocity, and appropriate downstream flow arrangement should be evaluated together.

Explanation

The critical process comparison is between downstream absolute pressure and the liquid vapor pressure at the actual operating temperature. Raising P2 can reduce or eliminate persistent flashing if the process can maintain P2 above vapor pressure. The proposed process change should therefore be evaluated using the actual pressure and temperature conditions.

Control valve performance depends on the actual process pressure, temperature, flow, fluid properties, and valve operating condition. If startup conditions differ significantly from the original sizing basis, the valve should be reassessed using the actual conditions. This includes checking vapor pressure, pressure drop, Cv requirement, valve travel, and flashing potential.

Explanation

Cavitation occurs when vapor bubbles form during a low pressure condition and then collapse as pressure recovers above vapor pressure. The collapse can generate localized forces that produce rough pitted damage. Therefore, evidence of pressure falling below vapor pressure followed by pressure recovery strongly supports a cavitation mechanism.

Explanation

The downstream pressure is 30 psia while vapor pressure is 35 psia. Therefore P2 is below vapor pressure, which is consistent with flashing. Under severe conditions, vapor formation can affect flow capacity and produce choked or limited flow behavior. The engineer should verify the actual process conditions and valve sizing basis.

Explanation

Harder trim can improve resistance to erosive flashing, but it does not eliminate the underlying flashing condition. Flashing is driven by process pressure, vapor pressure, and fluid properties. When the condition is unavoidable, the engineering solution should address valve geometry, flow direction, velocity, material selection, and downstream piping.

Explanation

The combination of downstream pressure below vapor pressure and smooth directional erosion is consistent with flashing. In flashing service, vapor remains in the downstream flow rather than collapsing after pressure recovery. Cavitation generally involves bubble collapse and commonly produces rough pitted damage.

Explanation

The combination of increasing valve travel, decreasing downstream pressure, high liquid temperature, and limited flow increase indicates that the hydraulic condition should be investigated. Vapor formation can limit liquid flow, and choked flow can occur under severe liquid valve conditions. The pressure profile and actual process conditions should be reviewed before replacing control system hardware.

Explanation

Flashing can produce a liquid vapor mixture with significant erosive potential. Downstream geometry should be reviewed to reduce direct impingement and excessive velocity. Expanded flow areas and suitable valve configurations can help reduce erosive velocity. Material selection should also be considered where direct impact cannot be avoided.

Explanation

Gauge pressure and absolute pressure cannot be compared directly. Vapor pressure is normally expressed on an absolute pressure basis. The downstream pressure must therefore be converted to absolute pressure before it is compared with the vapor pressure. Incorrect pressure basis can lead to an incorrect flashing diagnosis.

Explanation

A valve selected for an earlier process condition may be oversized for the present operating range. Operating near very low travel can create unfavorable flow characteristics and high local velocity. The engineer should verify the current flow, P1, P2, temperature, vapor pressure, Cv requirement, and actual travel against the original sizing basis.

Explanation

Anti cavitation trim is designed to control cavitation, but it cannot eliminate true flashing when downstream pressure remains below the liquid vapor pressure. When flashing is unavoidable, the engineering response should consider valve geometry, flow velocity, material hardness, outlet expansion, and downstream piping arrangement to reduce erosion.

Explanation

FL represents a valve pressure recovery characteristic used in liquid valve sizing and analysis. A lower FL indicates a valve with greater pressure recovery tendency, which can result in a lower vena contracta pressure for comparable conditions. The resulting Pvc should therefore be considered when evaluating cavitation and flashing potential.

Explanation

Flashing is primarily determined by process conditions and fluid properties. A downstream modification that reduces P2 can cause the downstream pressure to fall below vapor pressure even though the valve hardware remains unchanged. The first investigation should therefore compare the current downstream pressure and pressure profile with the previous operating condition.

Explanation

The pressure measurement used for flashing diagnosis must represent the relevant hydraulic condition. A transmitter located far downstream may not represent the pressure immediately downstream of the valve because pressure recovery, piping restrictions, elevation, or other equipment can affect the measured pressure. Instrument accuracy and measurement location should therefore be verified before changing the valve.

Explanation

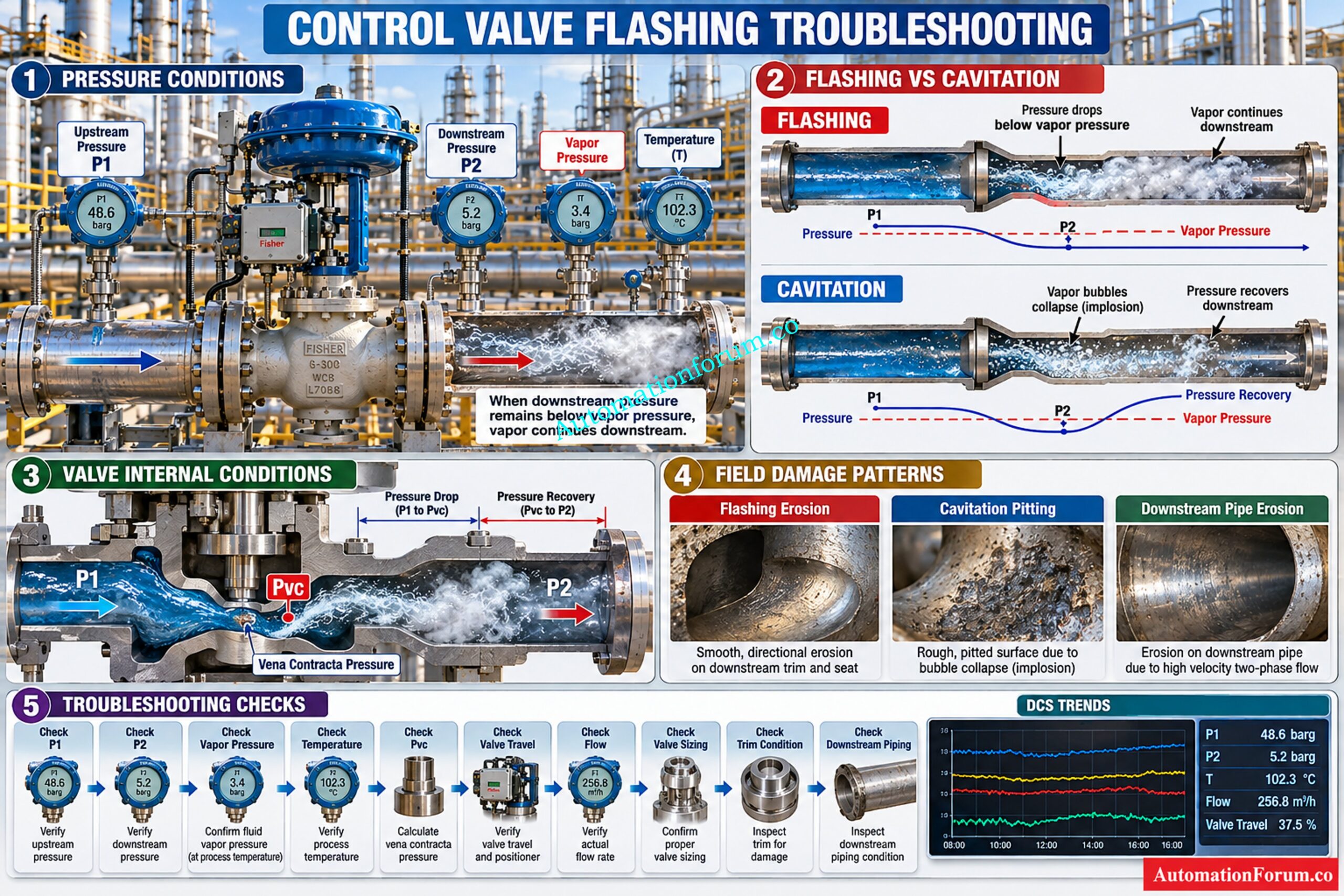

When downstream pressure remains below vapor pressure, vapor continues downstream rather than collapsing back into liquid. The resulting liquid and vapor mixture can produce significant erosive effects. Flashing damage is commonly characterized by a smooth polished appearance, whereas cavitation damage is more commonly associated with rough pitted surfaces caused by bubble collapse.

Explanation

Liquid vapor pressure increases as liquid temperature increases. When P1 and P2 remain approximately unchanged, an increase in vapor pressure reduces the margin between downstream pressure and vapor pressure. If P2 subsequently remains below vapor pressure, flashing becomes more likely. Vapor pressure is therefore an essential process variable in control valve flashing troubleshooting.

Explanation

Downstream pressure above vapor pressure does not eliminate the possibility of local vapor formation. The pressure can fall below vapor pressure near the vena contracta and then recover downstream. If bubbles collapse during pressure recovery, cavitation can occur. The engineer should therefore examine the internal pressure profile and pressure recovery rather than assuming flashing from pressure drop alone.

Explanation

The pressure drop across the valve is 100 minus 40, giving 60 psi. The pressure difference between P1 and Pvc is 100 minus 25, giving 75 psi. Therefore FL equals the square root of 60 divided by 75, which is approximately 0.89. Pressure recovery and vena contracta conditions are important when evaluating liquid valve applications.

Explanation

The downstream pressure is 22 psia while the liquid vapor pressure is 28 psia. Because P2 remains below vapor pressure, vapor can persist downstream of the valve. Continuous hissing and smooth directional erosion are consistent with flashing and erosive two phase flow. Flashing damage commonly has a smooth polished appearance.
