Preparation of IO List Documentation in EPC Engineering Quiz

Why IO List Documentation Matters in EPC Engineering Projects

The IO list is the heart of instrumentation engineering in EPC projects since it integrates field instruments, signal kinds, control systems and execution documentation in a single structured project reference. If the IO list is not complete or adequate, it might lead to design flaws, procurement problems and commissioning delays. Testing your expertise is a means to enhance coordination, improve control system design, and minimize costly mistakes in process industries during thorough engineering and launch.

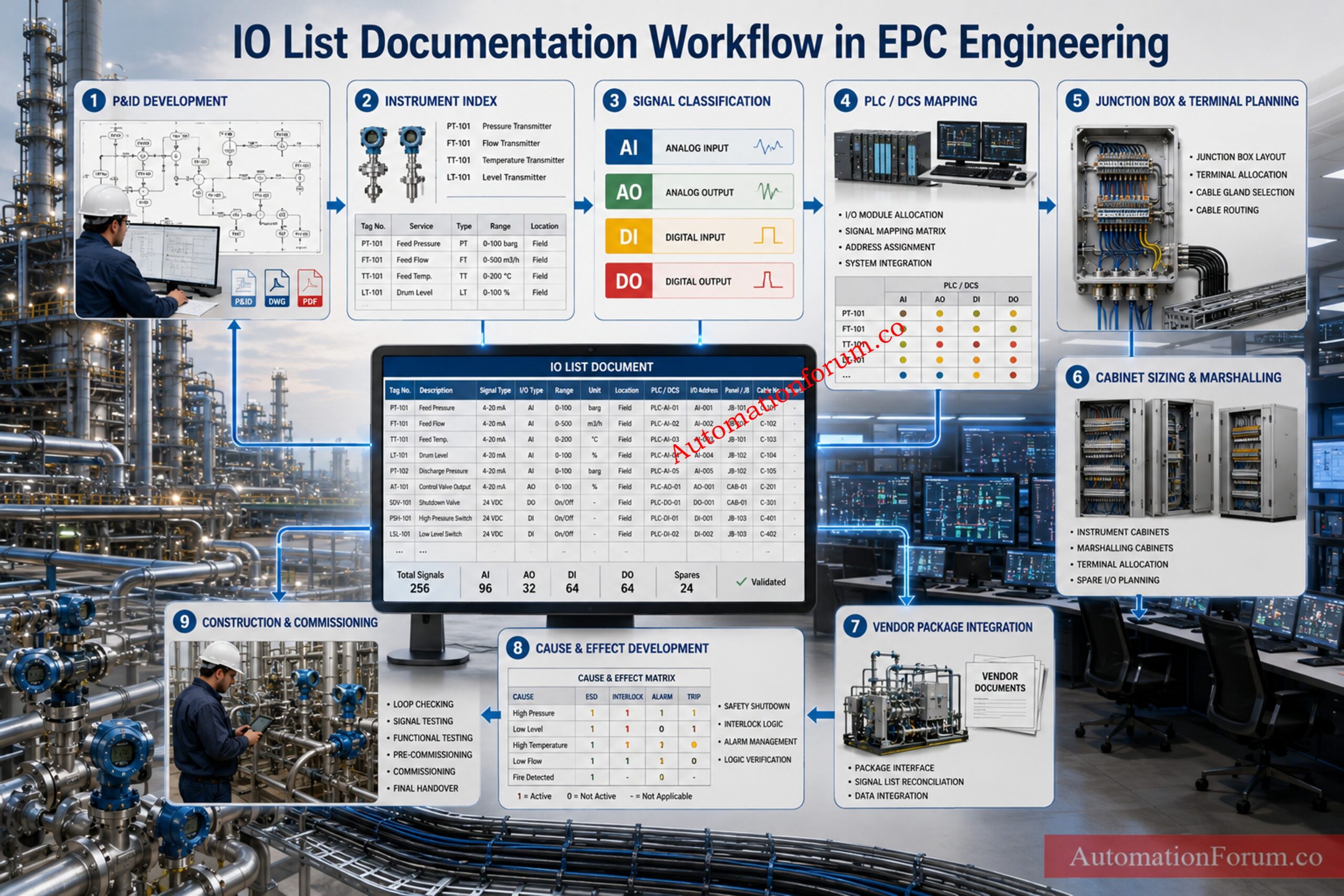

Advanced IO List Documentation Quiz for EPC and Process Industry Engineers

Preparation of IO List Documentation in EPC Engineering in Process Industries: Advanced Quiz for Instrumentation and Control Engineers

The high-end quiz on documentation of IO list in EPC engineering is targeted to the professionals who are working in process industries where every signal matters. A well-prepared IO list drives instrumentation engineering, PLC DCS mapping, control system planning and precise engineering coordination across disciplines. It supports P and ID alignment, instrument index control, cabinet sizing, terminal allocation, vendor coordination, and revision management. By practicing scenario based questions, engineers can improve project execution quality, reduce rework, and strengthen the connection between field devices and the final control system design during construction, testing, and commissioning in oil and gas, chemical, power, pharmaceutical, water treatment, and utility projects.

1 / 25

Before final IFC issue, what is the strongest quality check for IO list documentation?

Check only page numbering and format

Confirm only that the document has signatures

Review only the spare capacity entries

Verify tag consistency, signal type, and revision status

2 / 25

A smart field device offers diagnostics through communication, but the DCS needs only one status point. How should the IO list be written?

Map every diagnostic as a hardwired signal

Omit the device because it uses communication

Record the required point and interface note

Convert the device into a digital output point

3 / 25

How does a good IO list support cause and effect development?

It replaces the cause and effect matrix

It provides the signal inventory for logic mapping

It is used only after the plant starts

It applies only to analog transmitters

4 / 25

During loop check preparation, several IO points are added after the cable schedule is frozen. What is the likely consequence?

No consequence if the points are digital

Rework in cable, termination, and test packs

Automatic update of all related documents

Only the vendor package documents change

5 / 25

A vibration switch is shown as a process alarm instead of an equipment protection signal. Why does this matter?

It affects alarm philosophy and event handling

It changes only the tag naming style

It is only a mechanical engineering concern

It does not matter if the signal is digital

6 / 25

A project plans a DCS system with remote I O panels. What IO list detail becomes especially important?

The office printer location and network access

The remote panel location and signal grouping

The project logo design and document color

The civil drawing number and plot size

7 / 25

Why is IO list documentation important during procurement?

It defines modules, marshalling, and interface needs

It replaces the purchase requisition process

It is used only by the construction team

. It has no value before startup

8 / 25

A level switch is listed as AI because the process engineer expects a future transmitter. What should be done now?

Leave it as AI for future flexibility

Change it to DI based on the actual device

Remove the point until the transmitter arrives

Convert all future signals into AI points

9 / 25

The IO list includes an engineering unit column for every analog point. Why is this useful?

It helps with document formatting only

It supports scaling, HMI setup, and validation

It replaces the need for an instrument data sheet

It is only important for procurement teams

10 / 25

A project uses one IO list for PLC and DCS areas, but ownership is not clearly separated. What is the best practice?

Maintain one master list with clear ownership fields

Keep one list without any system assignment

Split documents only by discipline names

Create separate lists for each engineer involved

11 / 25

What is the most reliable sequence for finalizing IO list documentation during detailed engineering?

Cable routing, procurement, then P and ID review

Commissioning, then vendor approval, then loop diagram review

Procurement, then tag numbering, then cause and effect

P and ID review, index confirmation, IO classification, hardware sizing

12 / 25

A critical compressor trip signal is listed like a normal digital input with no special remark. Why is this a concern?

Trip signals require special safety and logic handling

All digital inputs have the same priority

Trip signals should never appear in the IO list

The point should be changed to analog output

13 / 25

An analog input is shown as 0 to 10 V in the IO list, but the selected PLC module accepts only 4 to 20 mA directly. What should happen?

Keep the signal and ignore the mismatch

Change hardware without revising the IO list

Reconcile the signal or add interface hardware

Convert the point into a digital input

14 / 25

A junction box is being designed for several field instruments. Which IO list detail is most important for terminal planning?

The brand name of the labeling printer

The signal type and core requirement per point

The planned date of mechanical completion

The color of the field instrument body

15 / 25

The IO list shows an AI point, but the instrument data sheet shows a discrete switch output. What does this indicate?

The difference is acceptable in EPC engineering

A mismatch exists and must be reconciled

The point can be treated as spare capacity

The issue can wait until commissioning

16 / 25

A vendor sends a package skid IO list that does not match the project standard. What should be done?

Keep the vendor format as a separate record

Ignore the differences during review

Delete the vendor version after procurement

Align the package data with the master IO list

17 / 25

A shutdown valve belongs to the safety system, but the DCS also needs status indication. How should the IO list handle this?

Show the valve only in the safety PLC

Remove the valve from the IO list completely

Record the status as an analog signal point

Show both safety function and status feedback clearly

18 / 25

Two instruments share the same tag number across different packages. What is the best EPC engineering response?

Keep both tags and separate them later

Rename the vendor tag only after commissioning

Resolve the conflict through tag control and revision

Mark one instrument as a spare device

19 / 25

A DCS cabinet has limited spare terminals, while future expansion is expected. What is the best IO list practice?

Omit spare capacity to simplify the document

Document spare capacity in the master IO list

Add spare points only after startup

Convert spare analogs into digital points

20 / 25

The IO list shows a temperature element tag, but the loop diagram is still under review. What should the project team assume?

The loop diagram can be skipped for this point

The IO list alone is enough for cable routing

The loop diagram must be aligned before final wiring

The point should be moved into spare capacity

21 / 25

A control valve is intended to fail closed on air loss, but the IO list does not mention fail action. What is the main risk?

The valve tag may become duplicated in the index

The signal type may change from analog to digital

The loop diagram will no longer be required

Commissioning and cause and effect checks may be incorrect

22 / 25

A flow transmitter sends a 4 to 20 mA signal to the DCS for indication only. How should it be classified in the IO list?

As an analog input point

As an analog output point

As a digital input point

As a digital output point

23 / 25

A motor operated valve requires open and close commands, status feedback, and permissive inputs. How should it be represented in the IO list?

As digital input signals only

As digital output signals only

As both digital input and output signals

As analog input signals only

24 / 25

A pressure transmitter appears in the instrument index and also in the IO list. What is the most accurate interpretation?

The index identifies the device and the IO list maps signals

Both documents perform the same engineering function

The IO list is only for procurement and cost tracking

The instrument index is used only during commissioning

25 / 25

During detailed engineering, the P and ID is updated after the IO list has already been issued for vendor review. What should be done first?

Keep the IO list unchanged until procurement closes

Update the master IO list and issue controlled revision

Wait for commissioning before making any change

Convert the affected points into spare capacity

Your score is

The average score is 52%
