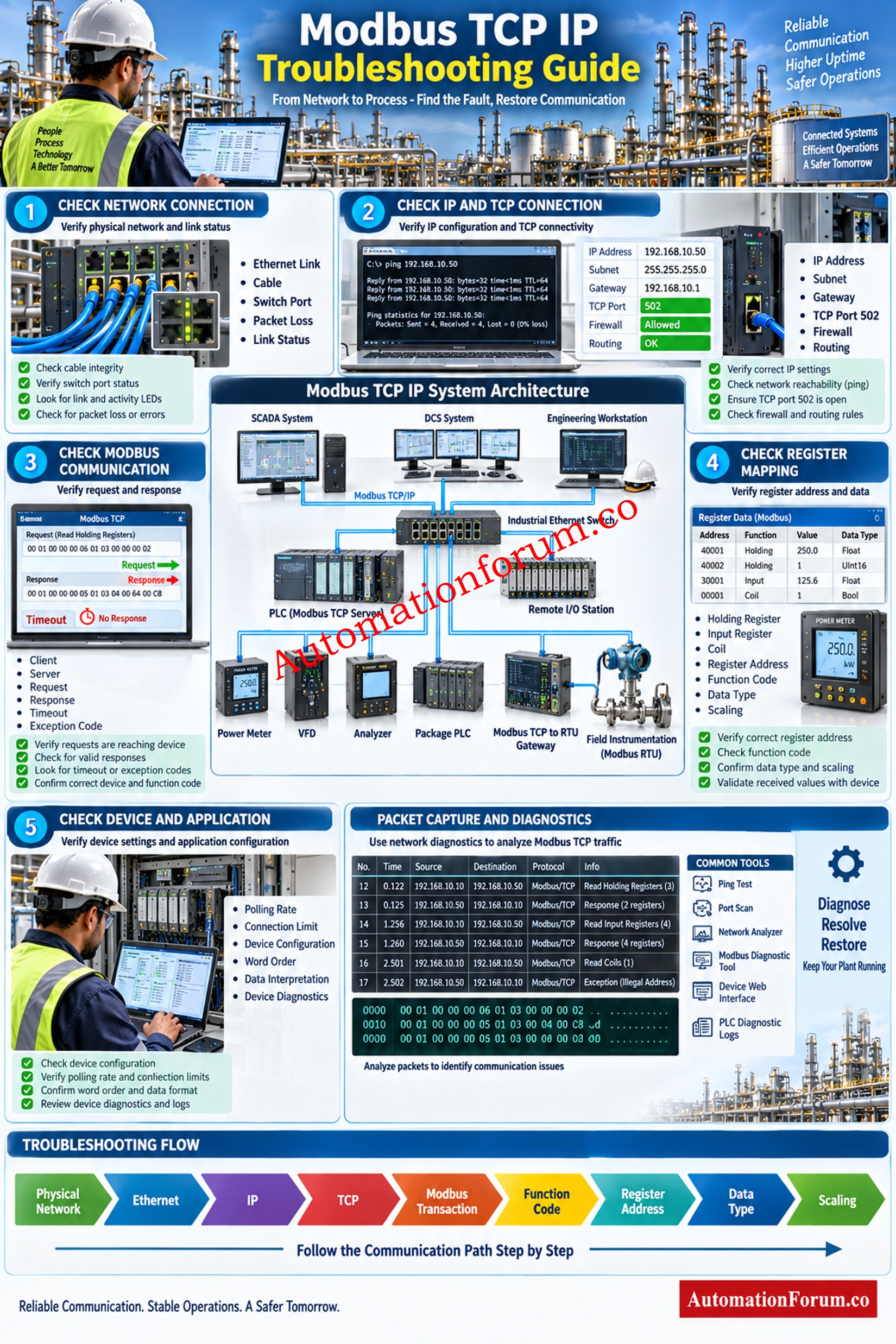

Troubleshooting Modbus TCP IP in Process Industries Quiz

Explanation

Recurring communication problems require a structured maintenance approach rather than repeated component replacement. Maintain accurate network documentation, IP records, switch diagnostics, port statistics, device logs, communication parameters, and approved register maps. Periodic health checks can identify developing network and device problems before they become plant failures.

Explanation

The healthy Ethernet communication confirms that the PLC network path is functioning. The fault is more likely on the gateway’s downstream side. Check serial wiring, baud rate, parity, stop bits, slave addresses, termination, serial diagnostics, Unit Identifier mapping, and gateway configuration.

Explanation

Repeated TCP resets indicate that the connection is being terminated rather than simply timing out. Investigate the analyzer’s TCP server behavior, connection limits, protocol configuration, firmware issues, firewall behavior, and client connection method. Packet capture can identify which side initiates the reset.

Explanation

Exception code 06 indicates that the server is busy and cannot accept the request at that time. Investigate server processing capacity, polling frequency, concurrent clients, transaction rate, and device workload. Reducing unnecessary communication may help determine whether the server is being overloaded.

Explanation

Different workstation firewall rules, routes, network interfaces, or Modbus client settings can produce different results even on the same physical network. Compare TCP port access, local firewall configuration, network route, source IP, client settings, and request structure.

Explanation

Excessive polling can increase transaction load and response time. Group contiguous registers where practical, avoid unnecessary duplicate requests, and configure reasonable scan intervals. Check the server’s processing capacity and maximum connection or transaction handling limits.

Explanation

The FAT network and plant network may use different IP addresses, subnet masks, gateways, VLANs, routes, and firewall rules. Compare the actual commissioned network configuration against the approved plant network design. This should be verified before changing application registers.

Explanation

Incorrect register interpretation is common when manufacturers document addresses using different conventions. Verify whether the documented address is zero based or one based and whether the register belongs to holding registers or input registers. Confirm the actual Modbus request sent by the client.

Explanation

If basic IP communication works but TCP port 502 cannot be opened, investigate the application service. Confirm that the PLC’s Modbus TCP server is enabled and configured correctly. Also check firewall rules, port configuration, and PLC communication resources.

Explanation

A changing value does not automatically indicate a communication fault. Verify whether the energy total is represented using two registers, whether the word order is correct, and whether the value is signed or unsigned. Also check whether the device updates the two registers atomically.

Explanation

Some embedded Modbus servers have limits on simultaneous TCP connections or handle connection termination poorly. Review the device connection limits, DCS driver behavior, retry strategy, and TCP session handling. Device diagnostics and packet capture during the restart sequence can provide useful evidence.

Explanation

Exception code 03 indicates an illegal data value. This can occur when a request contains an invalid quantity or other parameter for the selected function. Compare the working request with the failing request and verify the allowed range specified by the device manufacturer.

Explanation

Ping uses ICMP and does not prove that application traffic is permitted. Modbus TCP normally uses TCP port 502. Verify that the firewall allows the required source, destination, protocol, and port combination. Also check whether network segmentation rules permit the intended communication path.

Explanation

Repeated link up and link down events indicate a physical or Ethernet interface problem. Inspect the cable, connectors, termination, device Ethernet port, switch port, power supply, and environmental conditions. Switch diagnostics can help identify errors, collisions, or physical layer problems.

Explanation

Modbus functions have defined limits for the number of registers or coils that can be requested in a single transaction. The device may also impose stricter limits. Check the function code, requested quantity, device documentation, and server diagnostics. Splitting the request into smaller valid transactions may resolve the issue.

Explanation

A healthy communication status only confirms that data is being transferred. The value can still be interpreted incorrectly. Verify the register address, signed or unsigned format, scaling factor, engineering units, byte order, and manufacturer’s data definition.

Explanation

Exception code 01 indicates an illegal function. The server may not support the requested Modbus function or the function may not be enabled. Verify the device manual and supported function codes before modifying the network configuration.

Explanation

Devices on different IP subnets require correct routing. Check the subnet masks, default gateways, routing paths, and network segmentation. A laptop may communicate because it has a different route or network configuration. Do not assume that successful laptop communication proves the PLC network path is correct.

Explanation

Duplicate IP addresses can cause unstable and unpredictable communication. ARP tables may associate the same IP address with different MAC addresses over time. Check switch information, ARP records, device configuration, and network scans to confirm that every device has a unique IP address.

Explanation

Adding devices can increase network traffic, polling frequency, concurrent connections, and server processing demand. Review the SCADA or DCS scan rate, retry settings, connection limits, switch statistics, and device communication capacity. Excessive polling can produce intermittent timeouts.

Explanation

Healthy communication does not guarantee correct data interpretation. A 32 bit value may occupy two registers, and the device may use a specific word order or byte order. Confirm whether the value is signed or unsigned, floating point or integer, and verify the manufacturer’s register representation.

Explanation

Exception code 0B indicates that the gateway did not receive a response from the targeted downstream device. Since the Ethernet side is responding, investigate the RTU serial path, slave addressing, wiring, baud rate, parity, termination, and Unit Identifier used by the gateway.

Explanation

The capture proves that TCP communication is being established and requests are leaving the client. The next step is to determine whether the server receives the request and attempts to respond. Device diagnostics, server logs, packet capture near the server, and Modbus configuration should be examined.

Explanation

Exception code 02 indicates an illegal data address. Since other registers communicate successfully, the network connection is already functioning. Check the vendor register map, address offset, register type, and requested quantity. The problem is likely related to the requested data range.

Explanation

A successful ping confirms basic IP reachability but does not confirm that the Modbus TCP service is available. Check whether the flow computer is listening on TCP port 502 and whether its Modbus server function is enabled. Firewall rules should also be checked before replacing hardware.
