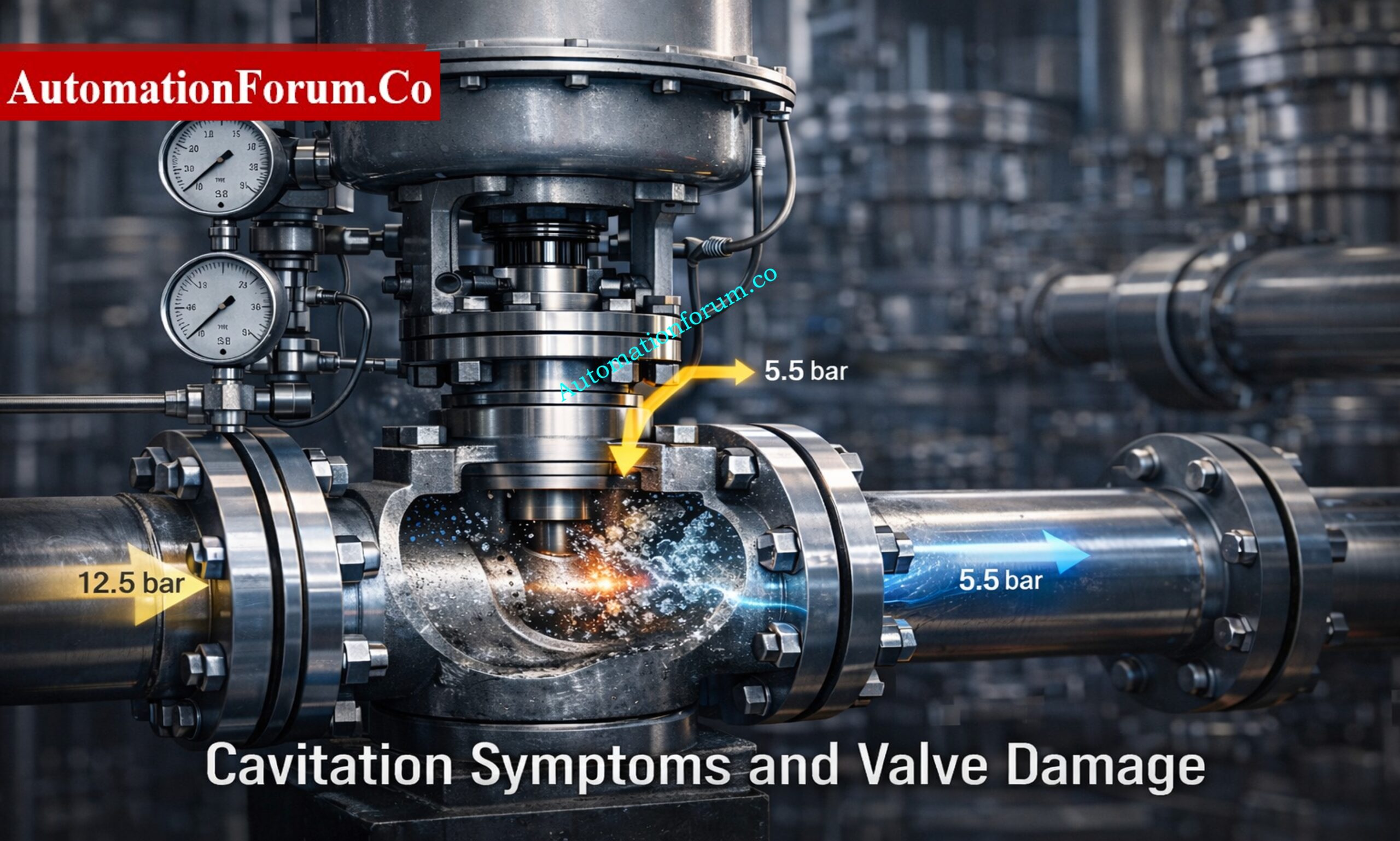

Control Valve Cavitation Troubleshooting Quiz for Instrumentation and Control Engineers

Explanation:
Cavitation usually leaves localized pitting and erosion near the trim and high-velocity internal surfaces, often with prior vibration and rattling. Particle erosion is more likely to be directional and related to solids loading. The damage pattern helps identify the real process control valve problem.

Explanation:
A single large pressure drop can create a very low local pressure at the vena contracta, triggering cavitation. Multi-stage trim divides the drop across several stages so no one stage reaches damaging conditions. This is a core strategy in severe liquid-service valve design.

Explanation:
Noise is common, but early-stage cavitation can sometimes present as unstable flow, poor controllability, or subtle vibration before obvious acoustic symptoms develop. Field diagnosis should combine process data, pressure readings, valve travel, and inspection history, not noise alone.

Explanation:
Raising backpressure can reduce the pressure differential across the valve and improve cavitation margin. In some systems, modest downstream restrictions or hydraulic redesign can help. Of course, this must be checked against process constraints and pump limitations.

Explanation:
As liquid temperature rises, vapor pressure increases. That means the pressure margin before vapor formation becomes smaller, so cavitation is more likely. This is a common startup phenomenon in condensate and hot-water systems where temperature changes alter hydraulic behavior.

Explanation:
A low cavitation index indicates weaker resistance to cavitation because the operating pressure conditions are close to vapor pressure relative to the pressure drop. Lower index generally means higher cavitation risk. This helps compare operating severity across different service conditions.

Explanation:
A larger valve can help in some cases by reducing throttling severity, but cavitation is governed by local pressure minimum, pressure recovery, fluid vapor pressure, and trim geometry. Without correcting the hydraulic mismatch, a larger valve may still cavitate under severe conditions.

Explanation:
Flashing means the fluid remains in the vapor phase after the valve because downstream pressure does not recover above vapor pressure. Cavitation requires collapse of bubbles downstream. This is one of the most important trap questions in cavitation in control valves assessments.

Explanation:
Increasing downstream backpressure can reduce the pressure drop across the valve and improve cavitation margin. Relocation can sometimes place the valve in a hydraulically more favorable position. This is often more effective than repeated trim replacement without system review.

Explanation:
Cavitation damage usually concentrates near the pressure minimum, often around the trim and throttling edge. The collapse of bubbles produces localized impact and material erosion. Distributed damage in the pipe would suggest a different mechanism, such as flashing or solids erosion.

Explanation:
FL is a key parameter in liquid valve sizing because it reflects pressure recovery behavior. Lower FL generally means more pressure recovery and potentially higher cavitation risk. For severe service selection, FL helps identify whether the valve geometry is suitable for the application.

Explanation:
The key check is not only downstream pressure but the minimum internal pressure within the valve. Pressure at the vena contracta can be significantly lower than downstream pressure due to acceleration and recovery effects. Cavitation can still occur even if downstream pressure is above vapor pressure.

Explanation:
Multi-stage or anti-cavitation trim reduces pressure in stages instead of dropping it all at once. This keeps pressure above vapor pressure at critical points and reduces bubble collapse energy. For severe services, trim design is often more effective than simple setpoint or tuning changes.

Explanation:
Cavitation changes the effective flow response of the valve, making control non-linear and unstable. The controller may “hunt” because the valve no longer behaves predictably. Trim erosion further worsens the response. This is a classic interaction between valve damage and control performance.

Explanation:
Cavitation occurs when bubbles form at low pressure and then collapse when pressure recovers. Flashing would sustain vapor downstream. Intermittent noise and severe erosion without continuous downstream vapor often suggest cavitation rather than flashing. This distinction is critical in process control issues.

Explanation:
Valve position matters, but cavitation is fundamentally a pressure phenomenon. If the pressure drop across the valve drives the local pressure below vapor pressure, cavitation can occur at many openings. The operating point, fluid temperature, and downstream pressure are often more important than position alone.

Explanation:
The vena contracta is the point of maximum jet contraction and usually the minimum pressure location in the valve. Cavitation often begins there when pressure drops below vapor pressure. Understanding this point is essential for diagnosing severe liquid-service problems.

Explanation:
A low Cv relative to the required flow means the valve must pass the fluid through a restricted opening, increasing velocity and local pressure drop. This can push pressure below vapor pressure at the vena contracta. That condition increases cavitation risk and accelerates trim damage.

Explanation:
If the valve is near full open and cavitation appears at peak load, the required pressure drop or flow exceeds the safe operating envelope. The selected Cv may be inadequate for the process range, pushing the valve into a damaging regime. Incorrect sizing is a common root cause.

Explanation:
Turbulence can create noise, but cavitation typically adds vibration, pitting, and erosion. The combination of acoustic severity and mechanical damage strongly points to vapor bubble collapse. This symptom pattern is one of the most reliable indicators in the field.

Explanation:
Opening the valve slightly often reduces the pressure drop across the trim, which can raise the minimum internal pressure above vapor pressure. That reduces bubble formation and collapse. This is a practical field clue in cavitation troubleshooting and a useful operational test.

Explanation:
Ball valves often have high pressure recovery and can be more prone to cavitation in severe liquid service when used incorrectly. Valve type selection matters: globe valves with anti-cavitation trims are often preferred for high ∆P liquid control. Poor recovery behavior can intensify cavitation damage.

Explanation:
Hot liquids have higher vapor pressure, so cavitation risk increases significantly. If pressure at the vena contracta drops below vapor pressure, vapor bubbles form. When pressure recovers downstream, they collapse violently and damage the trim. This is a classic cause of valve damage causes in condensate systems.

Explanation:
Flashing occurs when the pressure remains below the vapor pressure after the valve, so vapor does not collapse. Cavitation requires bubble collapse downstream after a pressure recovery. This is a common trap in valve troubleshooting MCQ questions because both involve phase change, but the downstream pressure profile is different.

Explanation:
The “gravel” sound is classic cavitation noise. In a liquid service, pressure can fall below vapor pressure at the vena contracta, forming bubbles that collapse as pressure recovers downstream. The resulting shock causes erosion, vibration, and trim failure. High pressure drop is a major trigger.
