Commissioning of Wet Leg Level Measurement in Process Area Quiz with 25 Practical Engineering Questions

Explanation

Reliable wet leg measurement depends on maintaining the complete measurement system. Preventive maintenance should include reference leg condition, impulse line integrity, manifold operation, transmitter calibration, loop verification and DCS scaling. Repeatedly changing calibration or replacing transmitters without identifying the physical cause can allow the underlying problem to remain unresolved.

Explanation

When the transmitter output and configuration are confirmed correct, an incorrect percentage at the DCS indicates a receiving system configuration problem. The engineer should compare the transmitter range with the DCS input range, scaling values, signal conversion and engineering units. Correct transmitter calibration does not guarantee correct DCS representation.

Explanation

Manifold operation directly affects the pressures reaching a differential pressure transmitter. Incorrect equalization or isolation can alter HP and LP pressure relationships and create an apparent level shift. The engineer should verify valve positions and restore the approved operating configuration before performing any recalibration.

Explanation

A pressure source can prove transmitter calibration without proving the installed reference system. When the transmitter becomes incorrect only after process service is restored, the engineer should investigate the wet leg, reference liquid, impulse lines, manifold configuration and process connection. The field installation may not be producing the expected reference pressure.

Explanation

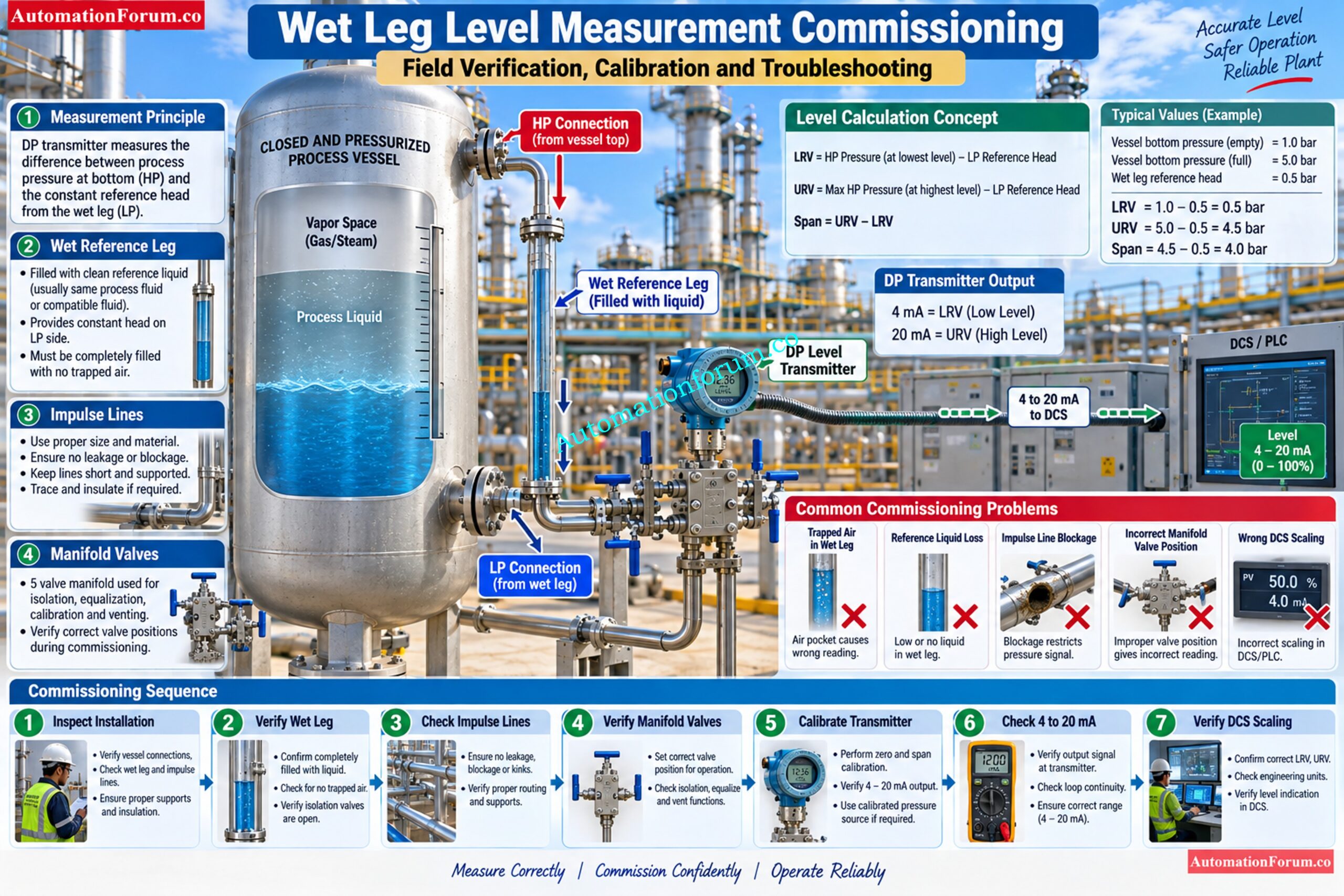

A negative differential at minimum level is normal in many wet leg applications because the low pressure side contains a constant liquid head while the process level contribution on the high pressure side is small. This is why the LRV can be negative and why the transmitter requires zero elevation calibration.

Explanation

The span is:

500 minus minus 2500 = 3000 mmH2O.

The pressure above LRV is:

minus 1000 minus minus 2500 = 1500 mmH2O.

1500 is 50 percent of the 3000 mmH2O span. Therefore:

Output = 4 + 0.50 multiplied by 16

Output = 12 mA.

Explanation

At zero level:

LRV = 0 minus 3000 = minus 3000 mmH2O.

At full level:

Process head = 4000 multiplied by 0.90 = 3600 mmH2O.

URV = 3600 minus 3000 = 600 mmH2O.

The span is 3600 mmH2O. The wet leg shifts both endpoints by the same constant reference head.

Explanation

Wet leg commissioning can expose personnel to pressure, hot fluid and hazardous process materials. Proper isolation, pressure verification, approved permits, controlled valve operation and safe venting arrangements are essential. Sudden equalization or uncontrolled opening of process connections should be avoided.

Explanation

The transmitter output is already verified against its configured measurement range. A disagreement between the local transmitter value and DCS value therefore points toward the receiving system. Engineers should check DCS scaling, engineering range, input configuration, signal conversion, marshalling and associated logic.

Explanation

A wet leg depends on a stable reference liquid column. Leakage or evaporation changes the reference head and therefore changes the low side pressure. The transmitter may gradually drift even though the process level is stable. Reference leg integrity should therefore be checked before modifying the calibration range.

Explanation

Maintenance can introduce gas into a liquid filled impulse path. Gas pockets can change the effective hydrostatic pressure and may cause unstable measurement behavior. The engineer should verify the impulse line condition, approved venting or filling procedure, valve positions and reference leg integrity before changing transmitter calibration.

Explanation

If the zero point is correct but full scale is incorrect, the constant wet leg contribution is likely correct. Attention should therefore shift toward the process level contribution, including actual maximum level height, process liquid specific gravity, transmitter elevation and the calculated URV. The process head determines the span.

Explanation

The span is:

1000 minus minus 2000 = 3000 mmH2O.

At 75 percent:

DP = minus 2000 + 0.75 multiplied by 3000

DP = minus 2000 + 2250

DP = 250 mmH2O.

Therefore, 75 percent of the calibrated level range corresponds to 250 mmH2O.

Explanation

Incorrect manifold valve positions can change the pressures reaching the transmitter. An incorrectly opened equalizing path can reduce the differential pressure, while incorrect isolation or vent conditions can interrupt the intended measurement path. Valve position should be verified against the approved commissioning procedure before recalibration.

Explanation

A denser reference liquid produces greater hydrostatic pressure on the LP side. Since differential pressure equals HP minus LP, increased LP pressure reduces the measured differential pressure. The transmitter therefore indicates a lower level than expected. The actual reference liquid and its density should be verified against the engineering calculation.

Explanation

The liquid column between the lower vessel tap and a transmitter mounted below that tap produces additional high side pressure. This pressure is present even at the minimum process level and must be included in the LRV and URV calculation. Installation elevation therefore directly affects transmitter calibration.

Explanation

Reference pressure is calculated as:

Pressure = height multiplied by pressure per metre

Pressure = 4 multiplied by 9.81

Pressure = 39.24 kPa.

This pressure acts on the low pressure side and must be included when calculating the transmitter LRV and URV.

Explanation

Bench calibration confirms transmitter response to applied pressure but does not prove that the installed measurement system is correct. The engineer should verify vessel connections, wet leg condition, impulse lines, manifold valves, transmitter installation elevation, output signal and DCS scaling. Field commissioning must validate the complete measurement loop.

Explanation

The midpoint of the calibration range is:

LRV = minus 1200 mmH2O

URV = minus 200 mmH2O

Midpoint = minus 700 mmH2O.

At this differential pressure, a linear transmitter should produce 12 mA, representing 50 percent of the calibrated measurement span.

Explanation

In a correctly commissioned closed vessel DP level measurement system, common vessel pressure should cancel between the high pressure and low pressure sides. If level changes with vessel pressure while actual level remains constant, the reference pressure path, wet leg, impulse line or manifold arrangement should be investigated.

Explanation

The transmitter measures HP minus LP pressure. If reference liquid is lost from the wet leg, the LP hydrostatic head decreases. The differential pressure therefore increases for the same actual process level, causing the transmitter to indicate a higher level. Reference leg leakage and evaporation should therefore be investigated before changing transmitter calibration.

Explanation

Span is calculated by subtracting LRV from URV.

Span = URV minus LRV

Span = 600 minus minus 1800

Span = 2400 mmH2O.

The negative LRV caused by the wet reference leg does not reduce the process measurement span. The wet leg shifts the range position while the process liquid head determines the span.

Explanation

At zero level, HP head is zero and the wet leg produces 2500 mmH2O on the LP side.

LRV = 0 minus 2500 = minus 2500 mmH2O.

At full level, process head = 3000 multiplied by 0.80 = 2400 mmH2O.

URV = 2400 minus 2500 = minus 100 mmH2O.

The span is 2400 mmH2O.

Explanation

A wet leg is intended to provide a stable liquid reference column. Air trapped inside the reference leg interrupts the continuous liquid column and can make the reference pressure unstable. This can produce level fluctuations even when the actual process level remains relatively steady.

Explanation

A completely filled wet reference leg produces a predictable hydrostatic pressure on the low pressure side of the transmitter. This pressure becomes part of the LRV and URV calculation. The wet leg therefore shifts the calibration zero while the process level span remains determined by the process liquid head.
